Plastic Cup Thermoforming Machine Line

Name: Plastic Cup Thermoforming Machine Line
Brand: AIRAYS
Availability: InStock

Model：RSC-800-500L

Plastic Cup Making Machine

Contact Details

WhatsApp： 8615355870907

Email： zhu@cnrayshape.com

PDF Download Enquire Now

INTRODUCTION

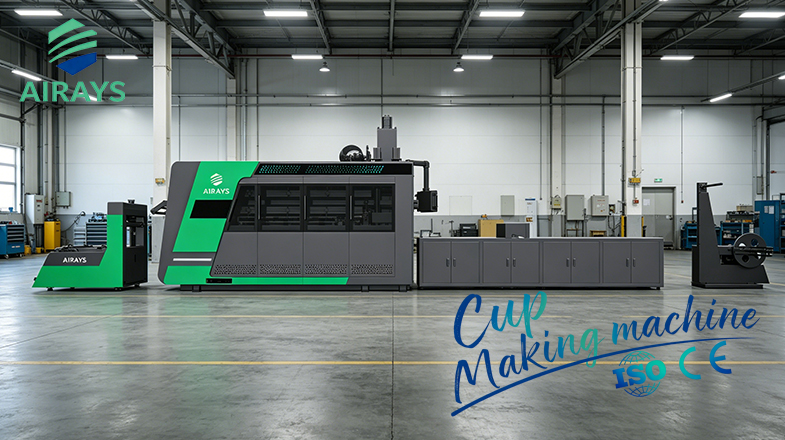

This Plastic Cup Thermoforming Machine Line integrates full-servo multi-station thermoforming with automatic cup collecting & stacking system, realizing fully automatic production from sheet forming, punching, cutting to cup sorting, stacking and output. It is the ideal integrated solution for efficient, unmanned plastic cup manufacturing.
Key Features
1.Full-line automatic operation

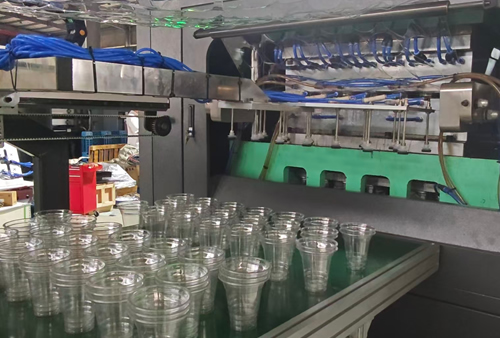

Equipped with a dedicated automatic cup collecting and stacking machine, realizing one-click automatic production without manual handling, greatly reducing labor costs.
2.Full-servo drive control
Adopts high-precision servo control system for stable operation, fast response and high molding accuracy, ensuring consistent cup quality.
3.High efficiency & high output
Optimized heating and cooling system shortens production cycle, with stable performance suitable for long hours of mass production.
4.Wide application

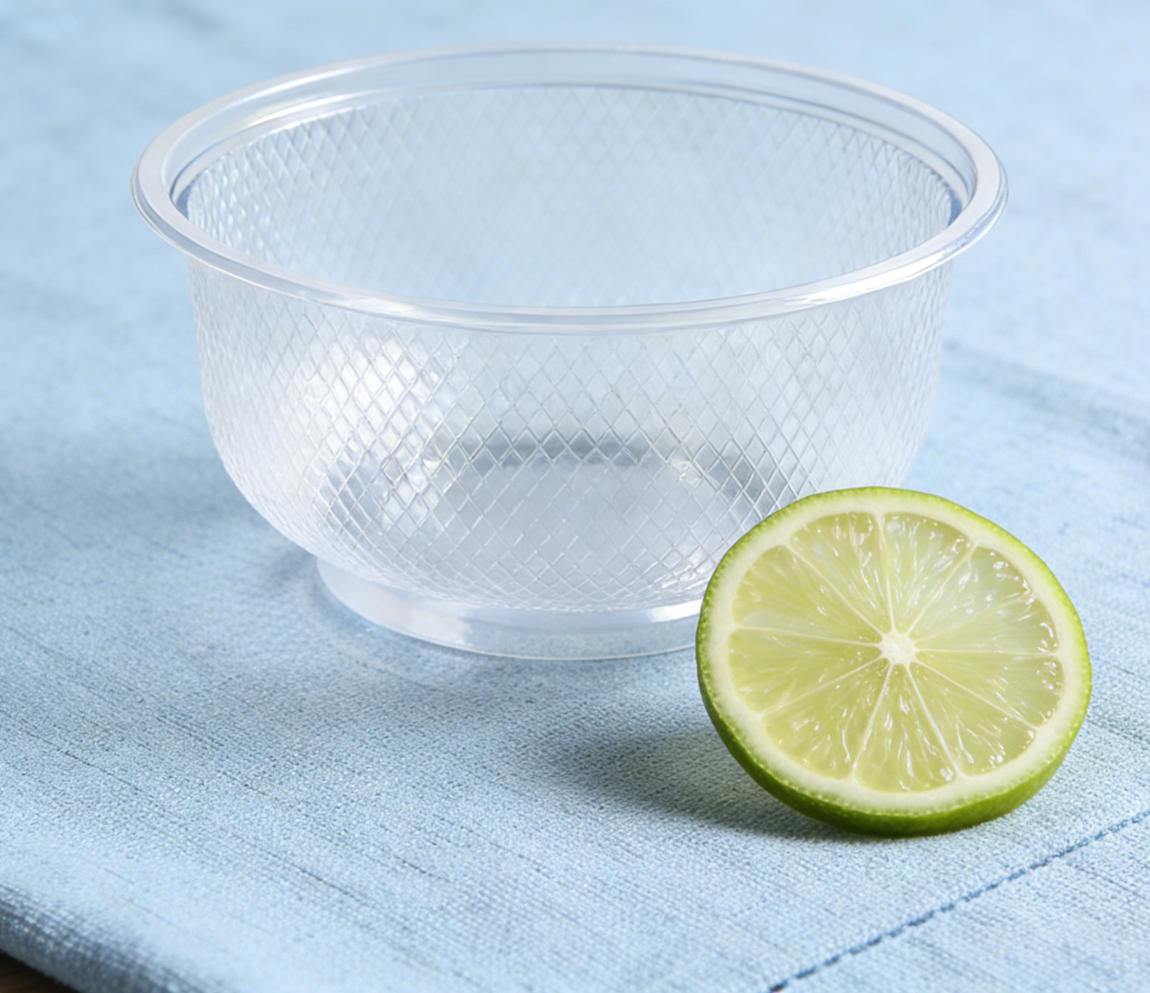

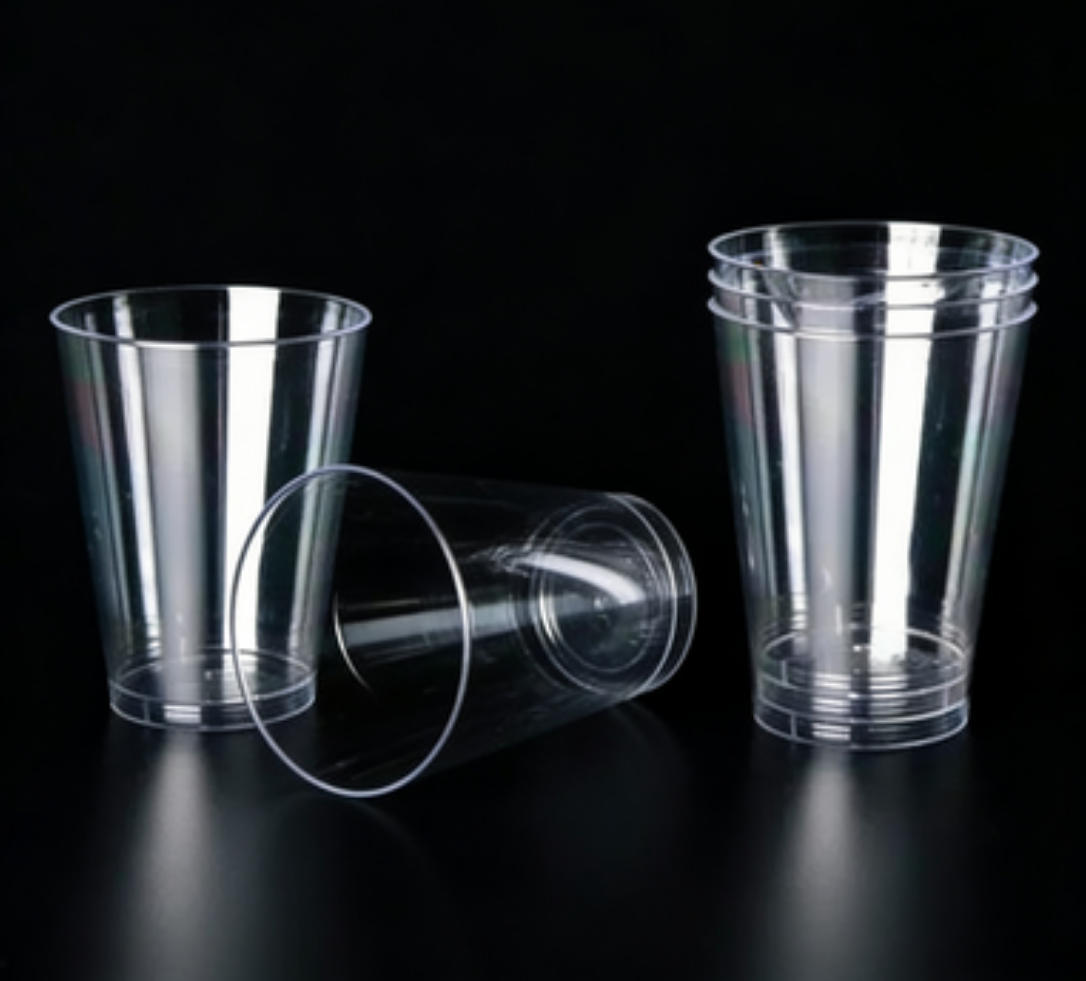

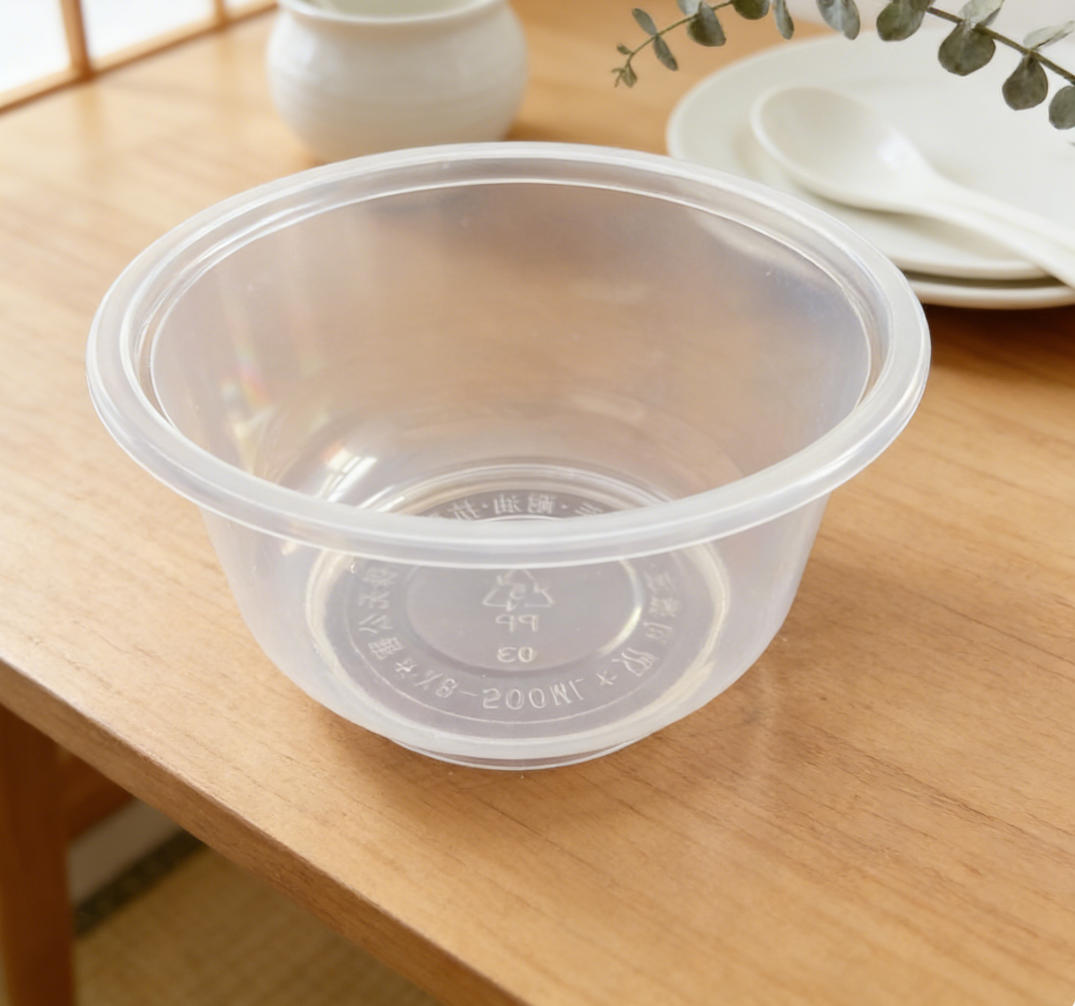

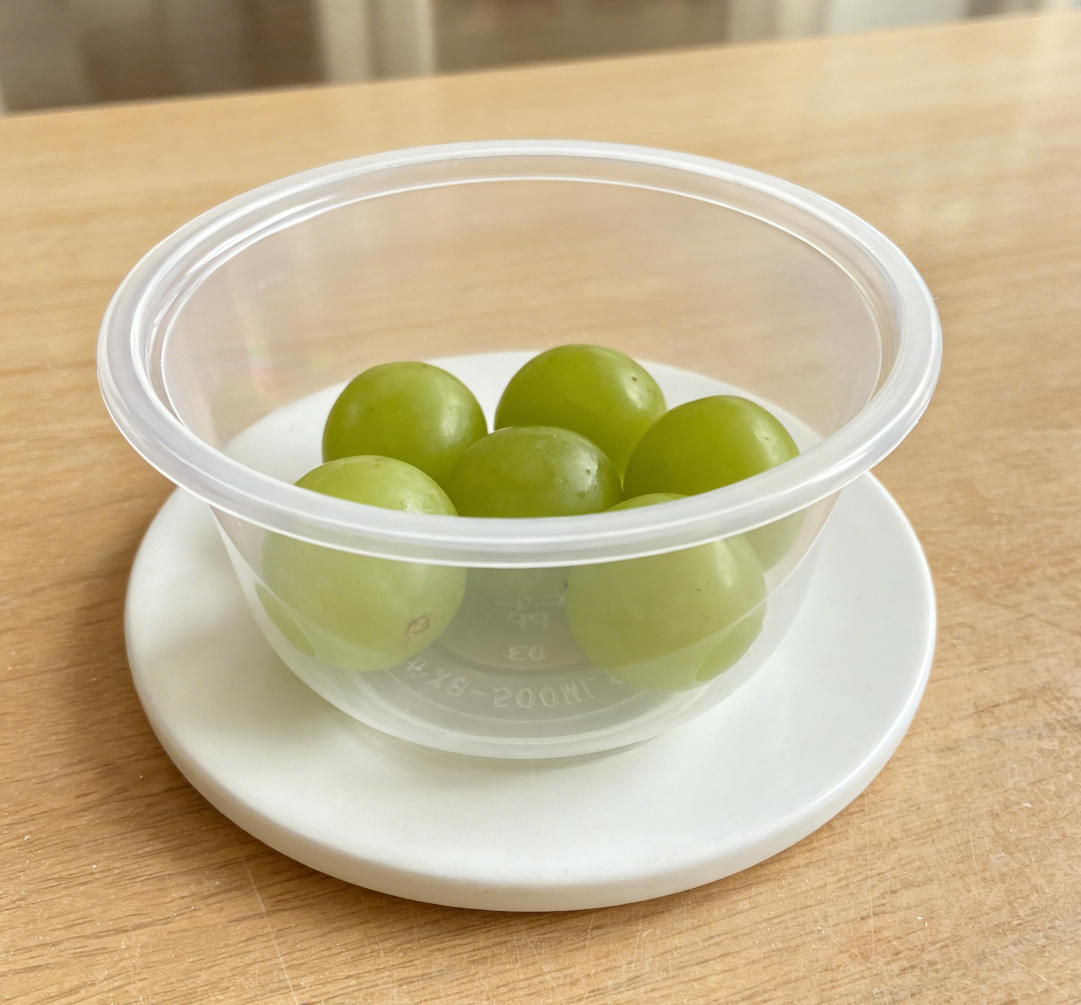

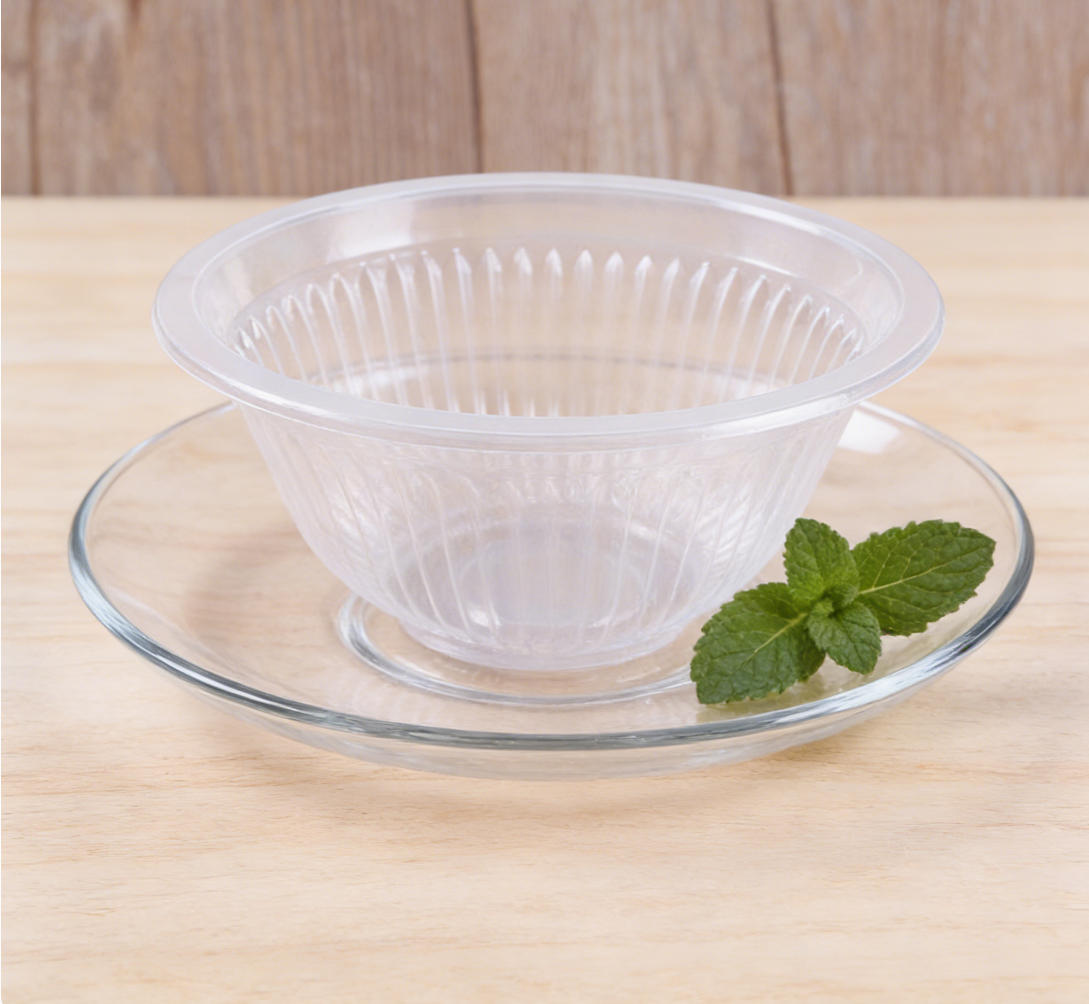

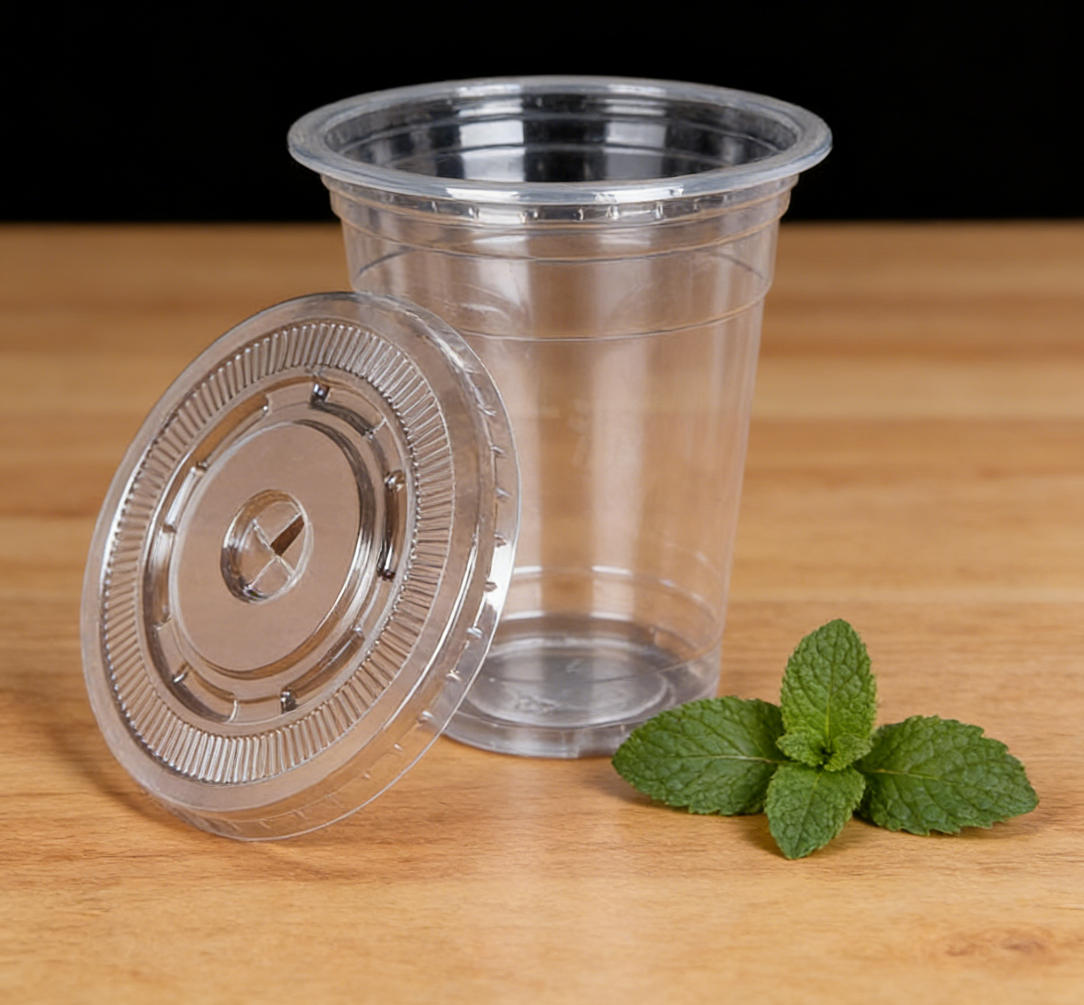

Suitable for producing PP cups, plastic drinking cups, disposable cups, milk tea cups, yogurt cups and other plastic hollow containers.
5.Safe & easy operation
User-friendly control interface, safety protection design and stable structure make operation and maintenance simpler.
6.Strong compatibility & stability
Perfectly matched with AIRAYS thermoforming molds, ensuring smooth coordination between the main machine and the automatic cup collecting system.
Applications
Widely used in disposable tableware, food packaging, beverage, catering and daily plastic products manufacturing industries.
Why Choose AIRAYS
AIRAYS provides professional, stable and efficient plastic thermoforming complete lines. With mature technology, strict quality control and reliable after-sales service, we help customers achieve automated, intelligent and high-efficiency production.

PRODUCTS RANGE

FEATURES AND ADVANTAGES

1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.

2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).

3. Easy-to-operate human-machine interface, and has the function of remote connection.

4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.

5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.

6. The upper and lower electric heating furnaces are used for 6-7 heating stages and protection to reduce the impact of air convection on temperature, ensuring stable product molding. It only takes 3 minutes to heat from 0 to 400 degrees, improving production efficiency. The electric heating furnace can be automatically removed.

7. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.

8. The mold opening and closing by servo motor, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.

9. Positive pressure forming ensures uniform thickness, full shapes, and sharp corners.

10. The chain frame features a fast cooling and wear-resistant design.

11. The cup blowing system offers adjustable blowing angle and air volume.

12. A servo motor chain drive automatically extends the track to prevent sheet sagging, ensuring stable, precise, and smooth sheet feeding.

13. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.

14. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.

SPECIFICATION

Sheet Materials	PP/PS/PET/PLA/PE/CPET	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-2.5mm	Weight	7500kg
Forming Area	780*480mm	Total Installed Power	150KW
Width Of Sheet	400-850mm	Heating Power	122kw
Max Speed	35moulds/min	Feeding Motor	4.4kw
The Longest Knife	12m	Control Forming Plug Motor Power	7.5kw
Dimension	450020002600mm	Winding Waste Of Edge Sheet Motor Power	0.4kw
Forming clamping force	1100kn	Forming Motor	15kw
Max. Forming Depth	≤180mm by blowing	Machine Travel	≤220mm
