In the demanding world of plastic packaging, continuous high-volume production requires machinery that is not just fast, but intelligently designed for parallel processing. The Four Station Plastic Thermoforming Machine represents the ultimate solution in efficiency and automation, taking the foundational capabilities of a Plastic Thermoforming Machine and elevating them into a powerhouse production system. At Wenzhou Rayshape Machinery Co., Ltd., we have engineered this advanced technology to provide our clients with an unmatched competitive advantage.
Engineering Excellence: The Four-Station Advantage
The core principle behind our Four Station Plastic Thermoforming Machine is maximizing output by minimizing downtime and idle cycles. This machine, a leading example of our Multi-station Thermoforming Machine series, achieves superior speed and quality by integrating four critical operations into a continuous, simultaneous workflow:
Heating Station: The plastic sheet is rapidly and precisely heated to the ideal forming temperature.
Forming Station: Utilizing positive and negative pressure, the sheet is accurately molded into complex shapes.
Cutting/Punching Station: The formed parts are trimmed in-line, ensuring dimensional accuracy and clean edges.
Stacking/Collecting Station: Finished products are automatically counted and stacked, ready for immediate packaging.
This integrated approach significantly outpaces conventional single-station methods. While the Three-Station Plastic Thermoforming Machine integrates forming, cutting, and stacking, the Four Station design further refines the heating and material handling phases, pushing the boundaries of what a Fully Automatic Thermoforming Machine can achieve in terms of speed and continuous production. This efficiency is crucial for manufacturers of high-volume items like food containers, cups, and trays.
Wenzhou Rayshape: An Integrated Manufacturing Ecosystem
At Wenzhou Rayshape Machinery Co., Ltd., our strength lies not only in our flagship Four Station Plastic Thermoforming Machine but in our ability to provide a complete manufacturing ecosystem. We believe that true efficiency begins with the raw material, which is why we develop and offer the Plastic Sheet Extruder—the perfect upstream partner to our forming equipment. This integration ensures material quality and seamless compatibility across the production line.
Our diverse product range showcases our specialized capabilities:
Plastic Thermoforming Machine & Thermoforming Machine: The foundation of our technology, built for precision across various applications.
Specialized Forming: Our Cup Making Machine and Bowl Making Machine are optimized for high-speed production of foodservice items, while our Blister Machine provides reliable solutions for pharmaceutical and consumer packaging.
This comprehensive product portfolio ensures that whether a client needs a dedicated solution or a versatile production line, Rayshape has the optimal plastic thermoforming machine ready.
A Company Built on Strength and Diligence
Wenzhou Rayshape Machinery Co., Ltd. is a proud subsidiary of the Elemotion Group, strategically located in the beautiful coastal city of Pingyang County, Wenzhou, Zhejiang Province. Our identity is that of a manufacturing enterprise that cohesively integrates mechanical and software R&D, production, marketing, and after-sales service.
Our operational strength is the result of a deliberate, strategic investment. Following Elemotion's investment in 2021, the company was officially renamed Wenzhou Rayshape Machinery Co., Ltd. in 2025 and is now wholly owned by Wenzhou Elemotion Holdings. This foundation provides us with a seasoned R&D team, robust operational capabilities, and the financial stability required for continuous innovation.
We are dedicated to developing and producing high-end, energy-efficient, and highly automated equipment. Our machines are designed for maximum material compatibility, handling everything from A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, and PVC. By embracing innovation and carrying forward Elemotion's spirit of diligence and continuous improvement, Wenzhou Rayshape Machinery Co., Ltd. is committed to learning from and contributing to the path toward becoming a leading enterprise in the global industry.
Choosing Rayshape means investing in a Four Station Plastic Thermoforming Machine that offers unparalleled efficiency, backed by a company committed to technological excellence and dedicated customer support.
Specifications Of Thermoforming Machines
Sheet Materials
PP/PS/PET/PLA/PE
Air Consumption
3m³/min
0.5-0.8bar
Sheet Thickness
0.2-1.5mm
Weight
11000kg
Forming Area
650*450mm
Total Installed Power
116Kw
Width Of Sheet
370-700mm
Heating Power
90kw
Upper Forming Depth
100mm
Feeding Motor
3kw
Bottom Forming Depth
130mm
Control Forming Plug Motor Power
3kw
Max Speed
45moulds/min
Stacking Motor
1.8kw
The Longest Knife
8m
Winding Waste Of Edge Sheet Motor Power
0.4kw
Dimension
10210*2300*2700mm
Forming Motor
4.4kw*2
Forming clamping force
600kn
Cutting Motor
4.4kw*2
Punching clamping force
600kn
Advantages Of Plastic Thermoforming Machines
Loading sheet part
Load automatically, lower human resource cost.
Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.
Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the productionefficiency.
Max undertake roll of sheet
Weight:600kg, Diameter 800mm.
Feeding sheet part
Automatic feeding reduces human resource costs.
Actively transport the sheet and reduce the load on the conveying servo motor.
Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.

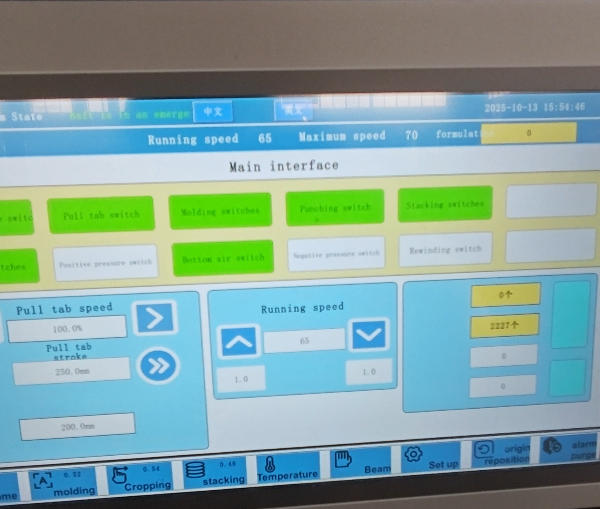

Human-machine interface
Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.
Heater
1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.
2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.
Molding station
1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.
2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.
Molding mold
The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.
There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.

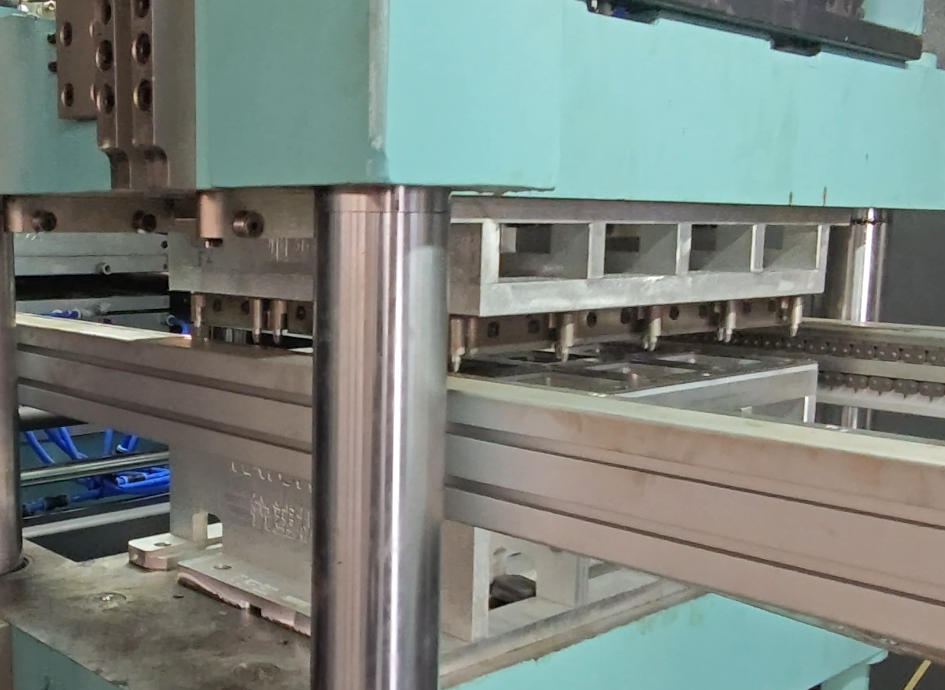

Guide head structure
The workstation is supported by four columns (45# steel, hard chrome plated).
The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.
A five-point-connecting-rod structure
This structure design provides more stable operation and faster speed.
Mold change structure
The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.
Servo motor
The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

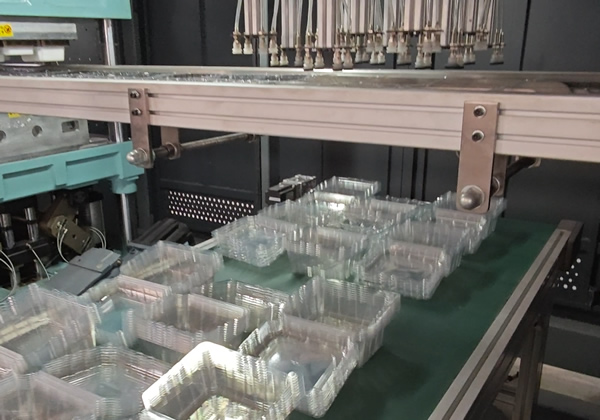

Servo-controlled conveyor belt
Set conveyor belt parameters directly on the operation screen.
Freely adjust and control conveying length and speed.
Rewinding waste of edge sheet
Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.
This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
