Fruit Box Making Machine for Global Agricultural Logistics

2026-01-31

Written by

Lucas

Mechanical Design Engineer

Proficient in the principles and design software of plastic thermoforming machines and plastic sheet extruders, capable of independently tackling complex structural problems; over 15 years of experience has honed my ability to accurately select components and predict risks.

›

The global agricultural logistics sector relies on high-quality packaging, and the Fruit box making machine from Wenzhou Rayshape Machinery Co., Ltd. is the industry standard. As a subsidiary of Elemotion Group, we specialize in high-end, energy-efficient automated equipment. Our Fruit box making machine is a multi-station thermoforming system developed specifically for high-volume production.

It ensures a stable and reliable output for fruit packaging, using materials like PET, PP, PVC, and PLA. The machine’s four-station configuration includes an integrated punching station, which is essential for creating ventilation in fruit boxes. We offer plate sizes such as 730 * 610 and 730 * 800 to increase production capacity. When running PET, the machine reaches speeds of up to 45 molds per minute.

A key feature of the Rayshape Plastic Thermoforming Machine is the future-oriented control system with a parameter save function. This allows for the permanent storage of optimized mold settings, making production starts easy and reducing labor costs. Rayshape carries forward the Elemotion spirit of diligence and continuous improvement, striving for self-surpassing excellence.

Our facility in Wenzhou at No. 19 East Section of Pinghai Avenue integrates R&D and after-sales service to support our international clients. We are dedicated to being a leading enterprise by providing high-quality automated equipment that meets the rigorous demands of global fruit exports and logistics.

Plastic Thermoforming Machine

Four-Station Plastic forming machine

Model：RS-750-800-4

RS-750-800-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Three-Station Plastic Thermoforming Machine

Model：RS-750-800-3

RS-750-800-3 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Four-Station Plastic Thermoforming Machine

Model：RS-750-610-4

RS-730-610-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Four-Station Plastic Thermoforming Machine

Model：RS-650-450-4

RS-650-450-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Advantages Of Plastic Thermoforming Machines

Loading sheet part

Load automatically, lower human resource cost.

Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.

Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.

Max undertake roll of sheet

Weight:600kg, Diameter 800mm.

Feeding sheet part

Automatic feeding reduces human resource costs.

Actively transport the sheet and reduce the load on the conveying servo motor.

Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.

Human-machine interface

Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.

Heater

1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.

2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

Molding station

1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.

2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.

Molding mold

The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.

There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.

Guide head structure

The workstation is supported by four columns (45# steel, hard chrome plated).

The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.

A five-point-connecting-rod structure

This structure design provides more stable operation and faster speed.

Mold change structure

The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.

Servo motor

The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

Servo-controlled conveyor belt

Set conveyor belt parameters directly on the operation screen.

Freely adjust and control conveying length and speed.

Rewinding waste of edge sheet

Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.

This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.

Plastic Thermoforming Machine Video

Fruit box making machine

Fully Automatic Thermoforming Machine

Automatic Plastic Cake Box Manufacturing Machine for PET PP and High Speed Plastic Cake Box Forming Machine for Bakery

Four-Station Plastic Thermoforming Machine Video

Three-Station Plastic Thermoforming Machine

Automatic Disposable Ashtray Manufacturing Machine for PET PVC and High Speed Plastic Ashtray Making Machine for Factory

Multi-Station Plastic forming machine

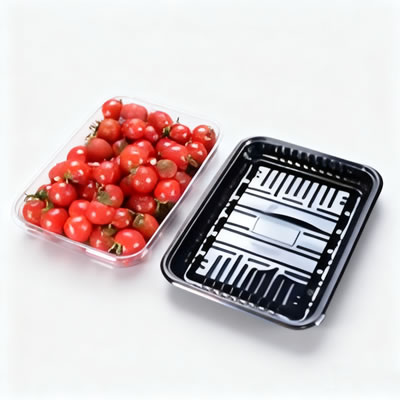

Plastic Container Machine
