In the world of modern manufacturing, thermoforming machine technology has become a cornerstone for producing a vast array of plastic products. From food containers and medical trays to packaging and consumer goods, a reliable thermoforming machine is essential. At Wenzhou Rayshape Machinery Co., Ltd., we have perfected this technology, offering advanced plastic thermoforming machine solutions that redefine efficiency and precision.

Our Automatic Thermoforming Machine represents the pinnacle of our engineering. Unlike older models, our automatic thermoformer streamlines the entire production process. It handles everything from feeding the plastic sheet to trimming the final product in a continuous, automated cycle. This reduces labor costs and increases output, making it an ideal choice for high-volume manufacturing.

For even greater efficiency, we offer the Multi-station Thermoforming Machine. This equipment performs several operations simultaneously at different stations—heating, forming, cooling, and trimming—drastically cutting production time and maximizing throughput.

Wenzhou Rayshape Machinery Co., Ltd. is a subsidiary of the Elemotion Group, a manufacturing enterprise that integrates R&D, production, marketing, and after-sales service. Our company was officially renamed in 2025 and is wholly owned by Wenzhou Elemotion Holdings. We are proud to have a seasoned R&D team and a solid financial foundation, which allows us to develop high-end, energy-efficient equipment.

Our main products, including our Blister Machine, Cup Making Machine, and Bowl Making Machine, are all designed to work with our Plastic Sheet Extruder and a wide range of materials like PP, PET, and PLA. This integrated approach ensures a seamless production line for our clients, guaranteeing quality and consistency. We are committed to a spirit of diligence and continuous improvement, striving to be a leading force in the industry.

Our main products include:
thermoforming machine
plastic thermoforming machine
Thermoforming equipment
Pressure forming machine
Automatic thermoforming machine
Fully automatic thermoformer
Multi-station thermoforming machine
Thin-gauge thermoforming
Heavy-gauge thermoforming
Plastic sheet thermoforming
Thermoforming production line
Thermoforming machinery
Plastic food container machine
Plastic forming machine
Extrusion thermoforming line
Plastic sheet forming equipment
High speed thermoforming
Single station thermoformer
Rotary thermoforming machine
Thermoforming for PET
PP thermoforming machine
HIPS thermoforming machine
PLA thermoforming
ABS thermoforming
Thermoforming machine for sale
Industrial thermoforming
Custom thermoforming equipment
Thermoforming manufacturer
Plastic fabrication machine
Blister machine
Disposable cup machine
Plastic tray making machine
Servo thermoforming machine
Automatic plastic forming
Thermoforming machine price
Thermoforming line

Specifications Of Thermoforming Machines

Sheet Materials	PP/PS/PET/PLA/PE	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-1.5mm	Weight	12500kg
Forming Area	730*610mm	Total Installed Power	174Kw
Width Of Sheet	400-800mm	Heating Power	140kw
Upper Forming Depth	100mm	Feeding Motor	4.4kw
Bottom Forming Depth	130mm	Control Forming Plug Motor Power	4.4kw
Max Speed	45moulds/min	Stacking Motor	1.8kw
The Longest Knife	10m	Winding Waste Of Edge Sheet Motor Power	0.4kw
Dimension	1150023502700mm	Forming Motor	5.5kw*2
Forming clamping force	750kn	Cutting Motor	5.5kw*2
Punching clamping force	750kn

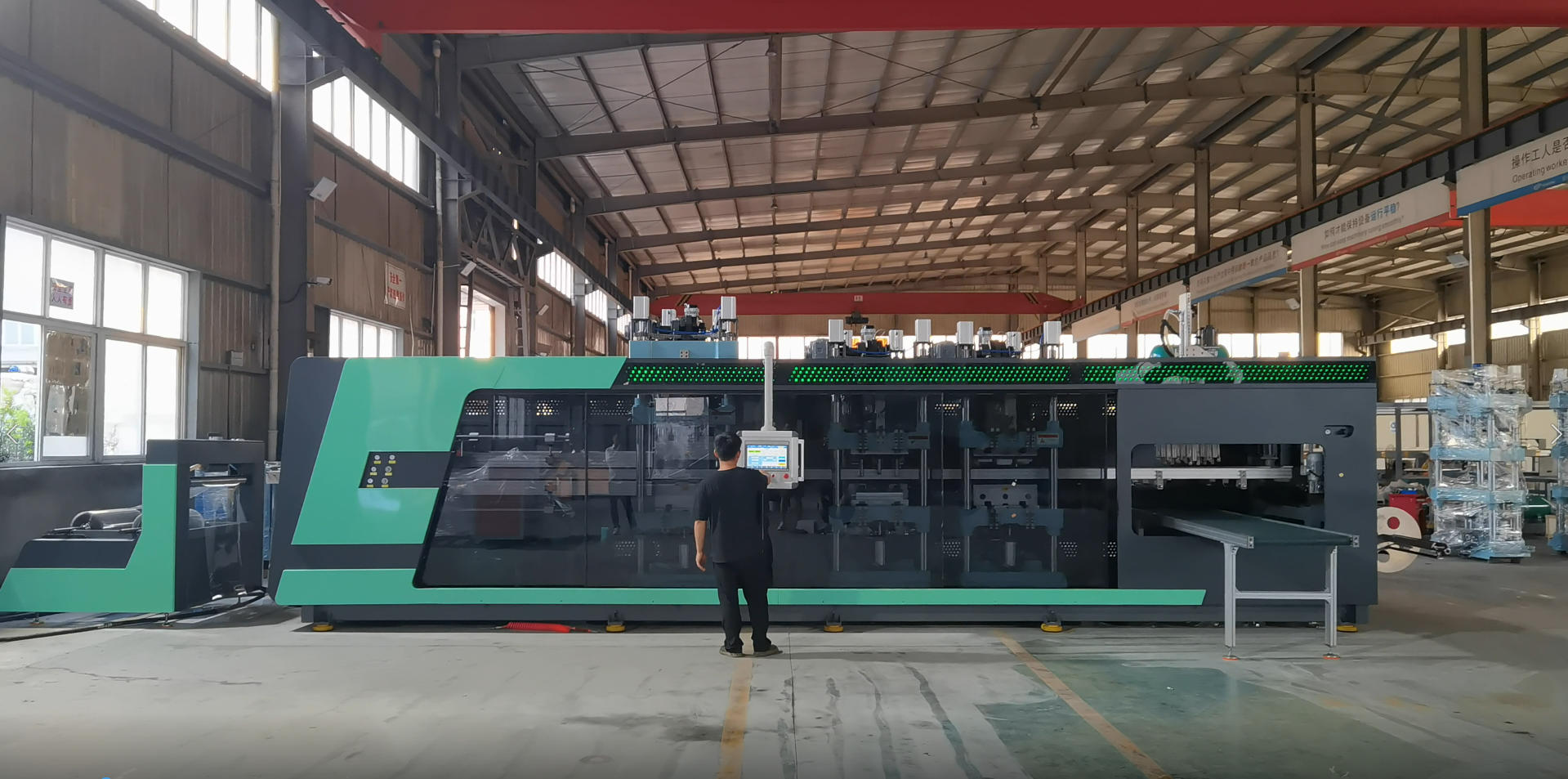

Plastic Thermoforming Machine

Four-Station Plastic forming machine

Model：RS-750-800-4

RS-750-800-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Three-Station Plastic Thermoforming Machine

Model：RS-750-800-3

RS-750-800-3 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

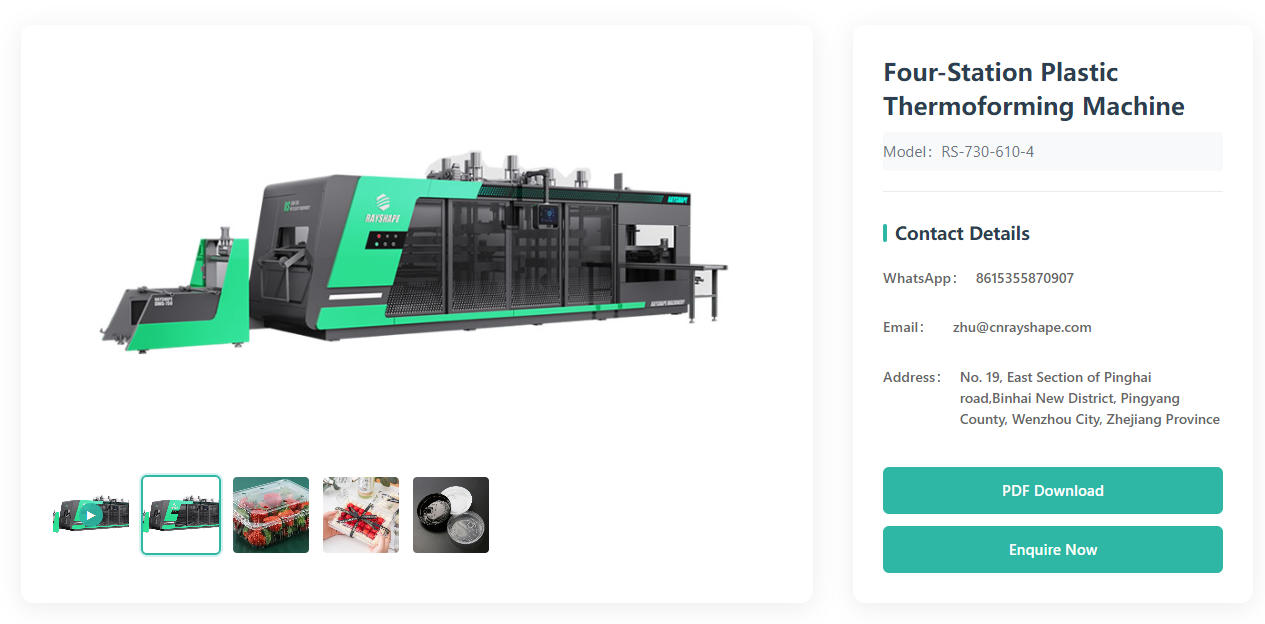

Four-Station Plastic Thermoforming Machine

Model：RS-750-610-4

RS-730-610-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Four-Station Plastic Thermoforming Machine

Model：RS-650-450-4

RS-650-450-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Advantages Of Plastic Thermoforming Machines

Loading sheet part

Load automatically, lower human resource cost.

Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.

Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.

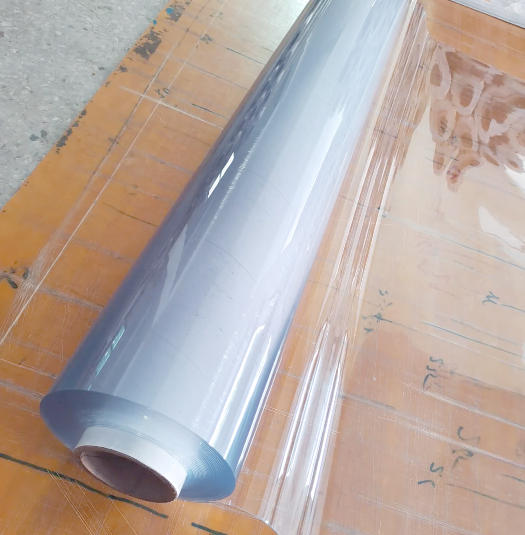

Max undertake roll of sheet

Weight:600kg, Diameter 800mm.

Feeding sheet part

Automatic feeding reduces human resource costs.

Actively transport the sheet and reduce the load on the conveying servo motor.

Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.

Human-machine interface

Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.

Heater

1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.

2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

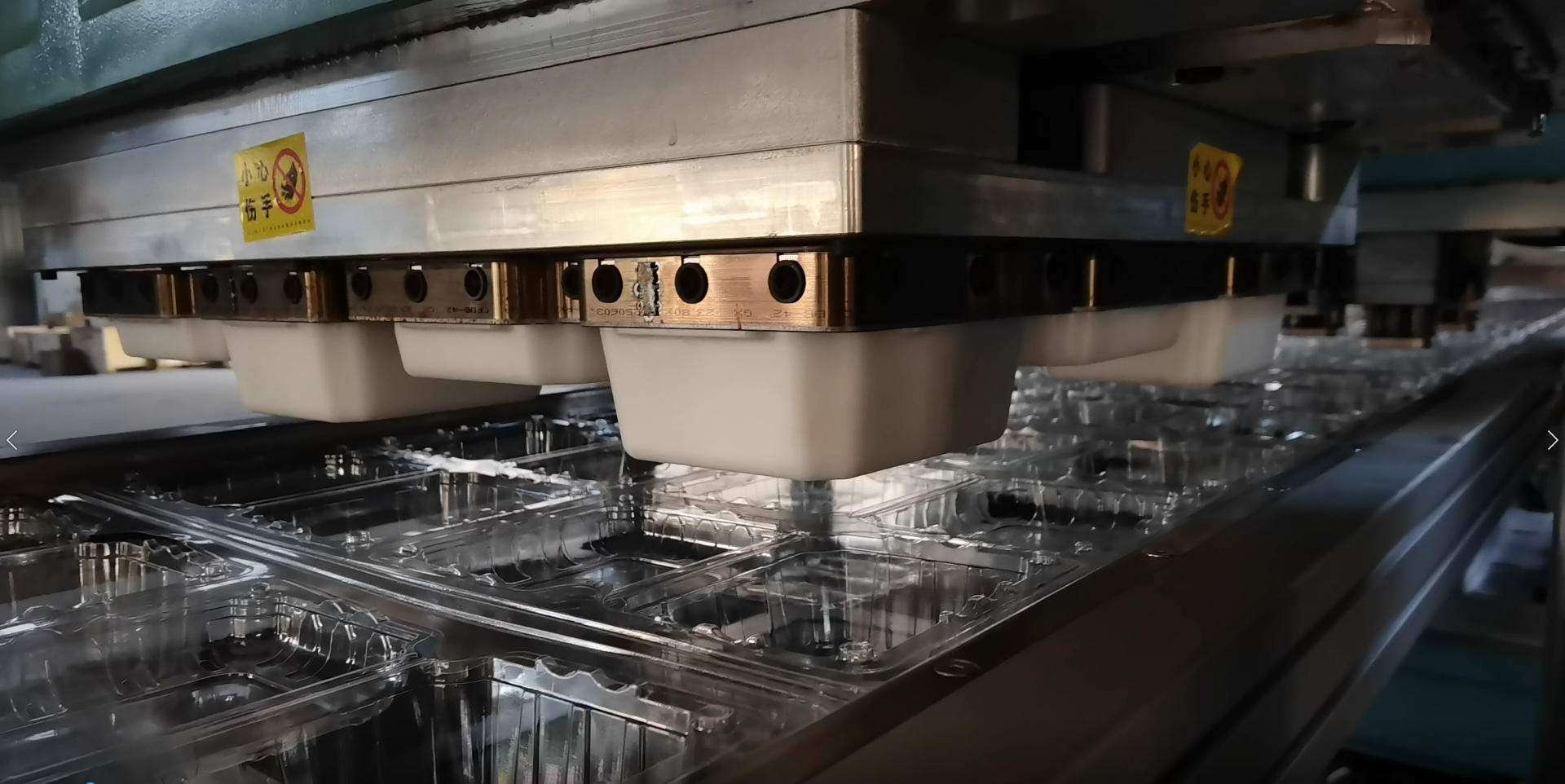

Molding station

1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.

2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.

Molding mold

The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.

There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.

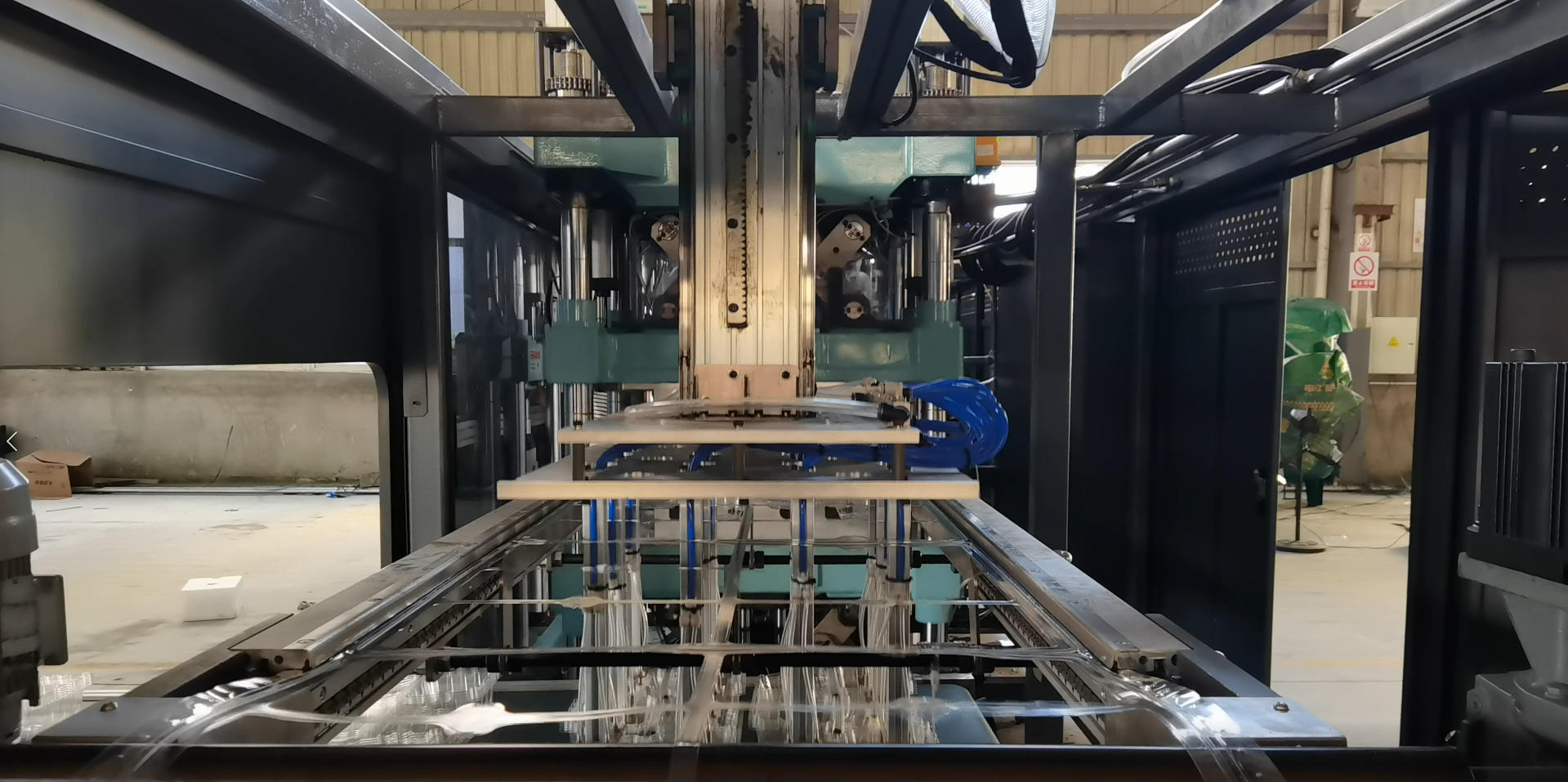

Guide head structure

The workstation is supported by four columns (45# steel, hard chrome plated).

The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.

A five-point-connecting-rod structure

This structure design provides more stable operation and faster speed.

Mold change structure

The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.

Servo motor

The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

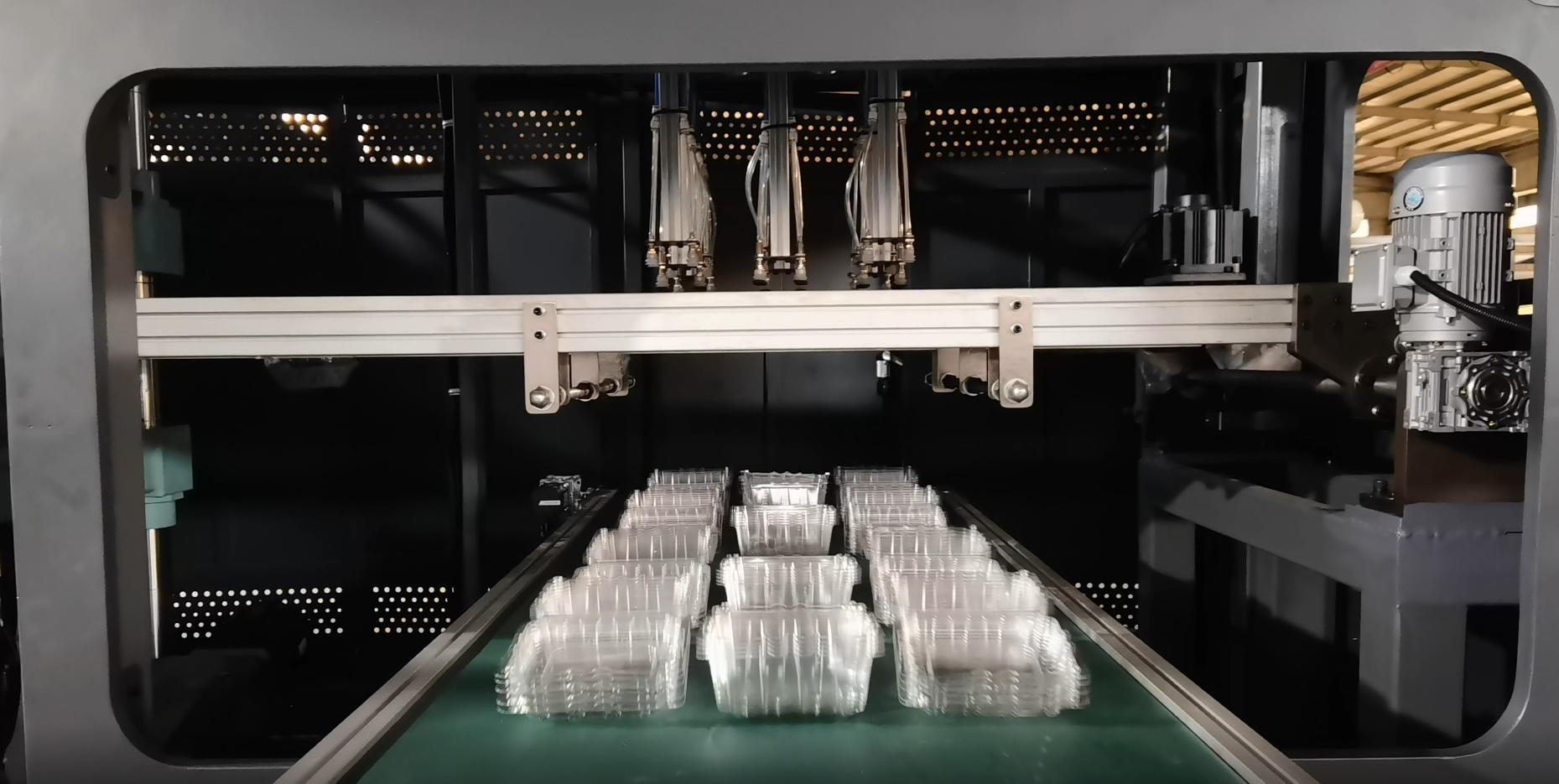

Servo-controlled conveyor belt

Set conveyor belt parameters directly on the operation screen.

Freely adjust and control conveying length and speed.

Rewinding waste of edge sheet

Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.

This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
