Rayshape Plastic Forming Machines
2025-09-09

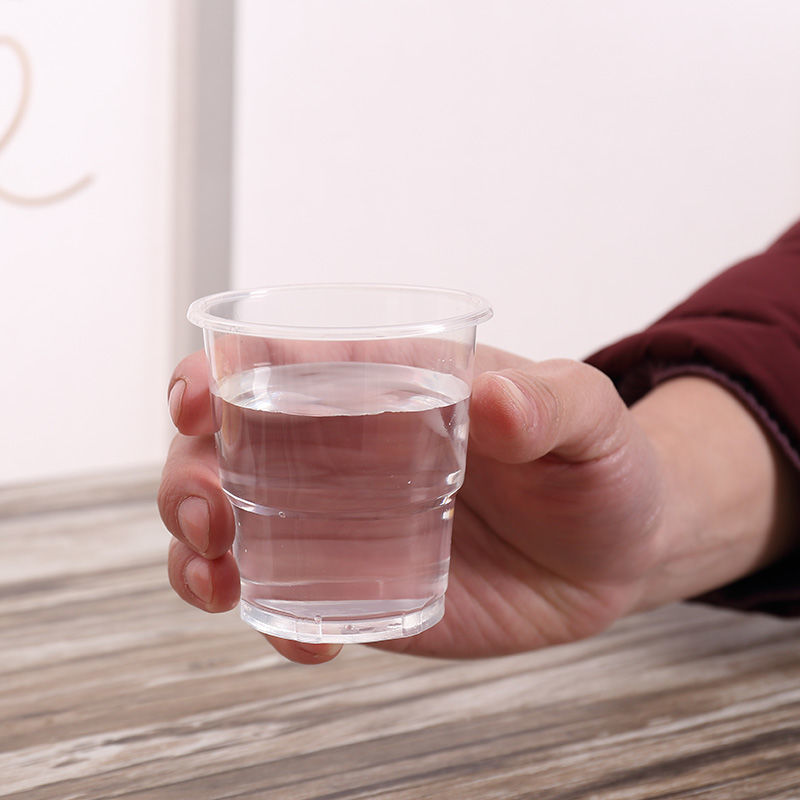

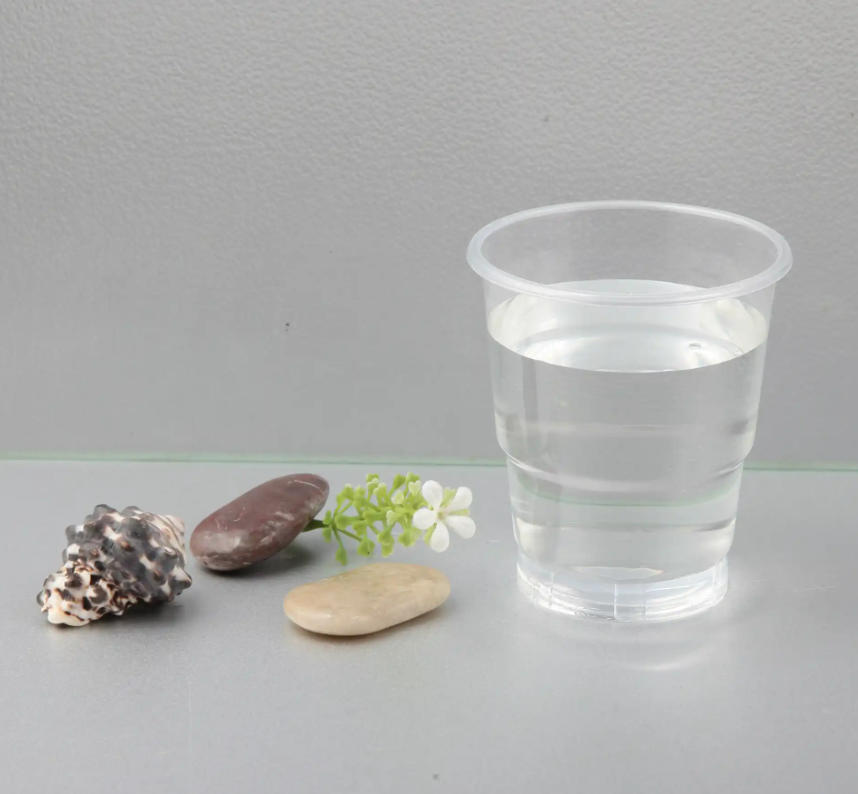

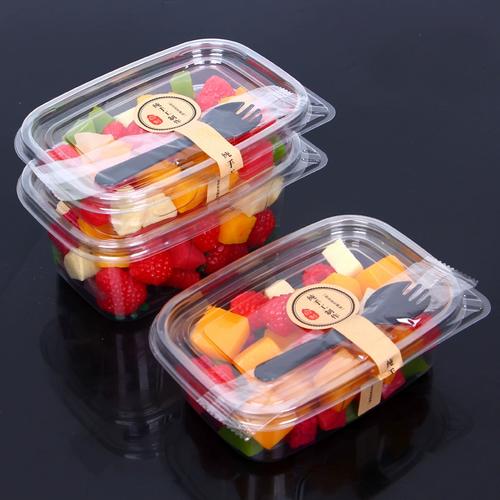

In the modern manufacturing landscape, the plastic forming machine is the cornerstone of the food and consumer packaging industries. From transparent fruit trays to durable plastic cups, the demand for high-quality containers is immense. At Wenzhou Rayshape Machinery Co., Ltd., we have perfected this technology, offering advanced plastic thermoforming equipment that redefines precision, efficiency, and material versatility. Our machines are not just tools; they are comprehensive solutions for a demanding market.
Our expertise is deeply rooted in the Plastic Thermoforming Machine, which forms the foundation of our diverse product line. This includes a specialized plastic food container machine, designed to meet the rigorous hygiene and durability standards of the food industry. We have also developed specialized machines for specific materials, such as our PP thermoforming machine for heat-resistant containers and our PET thermoforming machine for clear, robust packaging.
What sets Wenzhou Rayshape Machinery Co., Ltd. apart is our commitment to delivering complete, integrated solutions. Our Automatic Thermoforming Machine and Multi-station Thermoforming Machine ensure a seamless, high-speed production flow, drastically reducing labor costs and cycle times. Furthermore, our machines are designed to work in perfect harmony with our Plastic Sheet Extruder, creating a streamlined process from raw material to finished product.
Located in the coastal city of Wenzhou, Wenzhou Rayshape Machinery Co., Ltd. is a proud subsidiary of the Elemotion Group. We integrate R&D, production, marketing, and after-sales service, backed by a seasoned team and a solid financial foundation. Our journey, from our renaming in 2025 to our continuous innovation, is guided by the Elemotion spirit of diligence and continuous improvement. We are dedicated to providing high-end, energy-efficient equipment compatible with a wide range of materials, enabling our clients to produce flawless plastic products.
Specifications Of Thermoforming Machines
Sheet Materials
PP/PS/PET/PLA/PE
Air Consumption
3m³/min
0.5-0.8bar
Sheet Thickness
0.2-1.5mm
Weight
11000kg
Forming Area
650*450mm
Total Installed Power
125Kw
Width Of Sheet
370-700mm
Heating Power
90kw
Upper Forming Depth
100mm
Feeding Motor
3kw
Bottom Forming Depth
130mm
Control Forming Plug Motor Power
3kw
Max Speed
45moulds/min
Stacking Motor
1.8kw
The Longest Knife
8m
Winding Waste Of Edge Sheet Motor Power
0.4kw
Dimension
11230*2300*2700mm
Forming Motor
4.4kw*2
Forming clamping force
600kn
Cutting Motor
4.4kw*2
Punching clamping force
600kn
Punching Motor
4.4kw*2
Advantages Of Plastic Thermoforming Machines

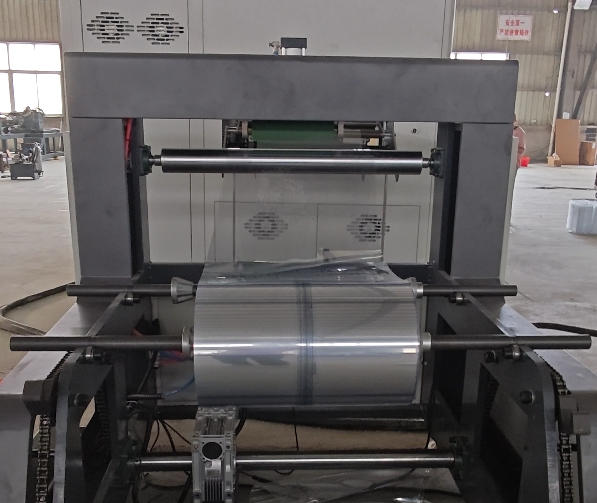

Loading sheet part
Load automatically, lower human resource cost.
Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.
Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the productionefficiency.
Max undertake roll of sheet
Weight:600kg, Diameter 800mm.
Feeding sheet part
Automatic feeding reduces human resource costs.
Actively transport the sheet and reduce the load on the conveying servo motor.
Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.
Human-machine interface
Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.
Heater
1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.
2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

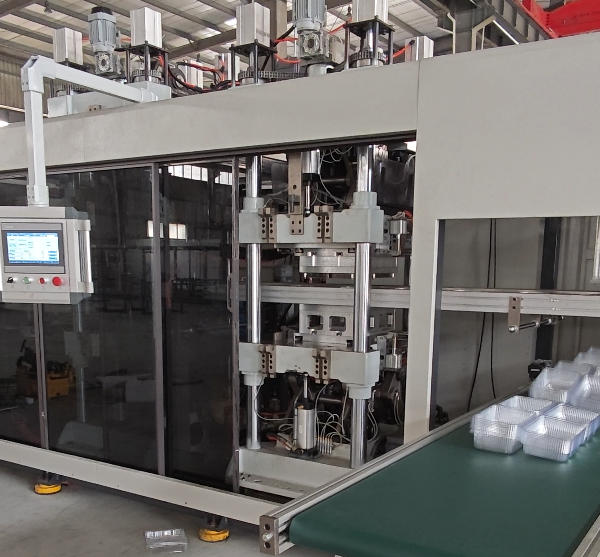

Molding station
1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.
2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.
Molding mold
The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.
There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.
Guide head structure
The workstation is supported by four columns (45# steel, hard chrome plated).
The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.
A five-point-connecting-rod structure
This structure design provides more stable operation and faster speed.
Mold change structure
The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.
Servo motor
The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

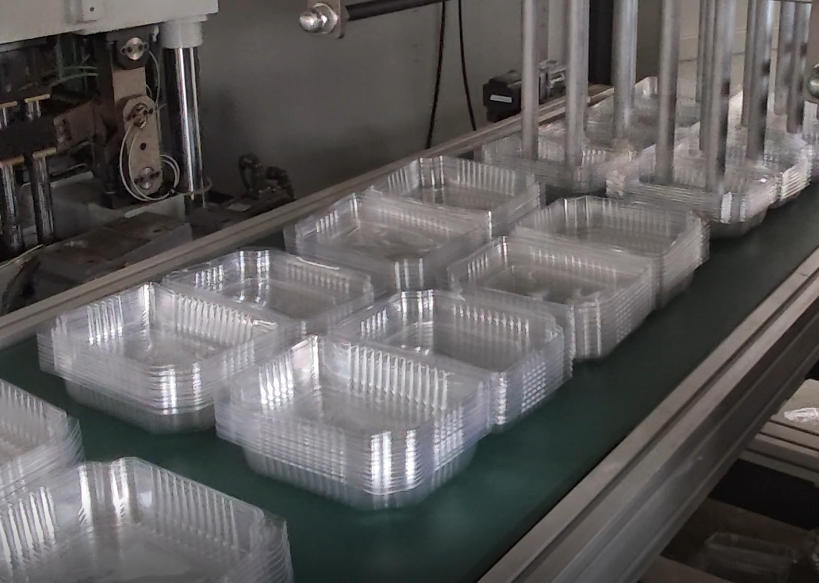

Servo-controlled conveyor belt
Set conveyor belt parameters directly on the operation screen.
Freely adjust and control conveying length and speed.
Rewinding waste of edge sheet
Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.
This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
