Shaping the Future with Precision: Plastic Thermoforming Machines by Rayshape
2025-07-25
Precision in Plastic: Wenzhou Rayshape’s Thermoforming Machines
Wenzhou Rayshape Machinery Co., Ltd. leads the plastic manufacturing industry with advanced plastic thermoforming machines, transforming plastic sheets into precise, three-dimensional products. Based in Pingyang County, Wenzhou, Zhejiang, Rayshape delivers innovative, efficient, and sustainable solutions for diverse industries. This article highlights the power of our plastic thermoforming machines, their functionality, types, applications, and our commitment to shaping the future of plastic production.
Thermoforming: The Process
Thermoforming heats a plastic sheet to a pliable state, molds it into a shape, and trims it to create a finished product. Unlike injection molding, it uses pre-extruded sheets, offering cost-effective tooling and versatility. Rayshape’s plastic thermoforming machines execute this process with precision through three stages:
Heating: Radiant heaters uniformly soften the plastic sheet without degrading its properties.
Forming: Vacuum or air pressure shapes the pliable sheet against a mold, with plug-assist technology ensuring uniform thickness for complex parts.
Trimming: Excess material is removed via automated die cutting or CNC routing, delivering a polished product.
Rayshape’s Plastic Thermoforming Machines
Wenzhou Rayshape Machinery Co., Ltd. offers a range of plastic thermoforming machines tailored to diverse production needs, emphasizing automation, energy efficiency, and precision. 1. Vacuum Forming Machines
Ideal for simple geometries, these machines use vacuum pressure for cost-effective prototyping and low-volume production, perfect for packaging and signage. 2. Positive and Negative Pressure Machines
Rayshape’s advanced plastic thermoforming machines combine positive air pressure and vacuum for superior detail, sharper corners, and precise forming of thicker materials. These are suited for high-end applications like medical components and automotive parts. 3. Twin-Sheet Thermoforming Machines
These machines fuse two heated sheets in a single mold, creating lightweight, hollow parts like air ducts and industrial panels. 4. Rotary Thermoforming Machines
Designed for high-volume production, rotary machines feature multiple stations for continuous heating, forming, cooling, and trimming, ideal for packaging and consumer goods. 5. Sheet Extrusion and Roll Forming Systems
Rayshape’s integrated extrusion lines produce high-quality plastic sheets, ensuring seamless compatibility with our plastic thermoforming machines for end-to-end efficiency.
Key Features
Our plastic thermoforming machines are built for performance:
Heating Systems: Ceramic or quartz heaters ensure uniform, energy-efficient heating.
Clamping Systems: Secure sheets to prevent distortion.
Forming Stations: Use vacuum/pressure and customizable molds for precision.
Cooling Systems: Fans or chilled platens maintain part integrity.
Trimming Systems: Offer automated, precise material removal.
Control Systems: PLC or PC-based interfaces optimize heating, pressure, and cycle times.
Material Compatibility
Rayshape’s machines process a wide range of thermoplastics:
A-PET, R-PET, C-PET: Clear, strong, food-safe packaging.
BOPS: High-clarity food containers.
HIPS: Cost-effective for disposable items.
PP: Chemical- and heat-resistant for automotive and medical use.
PLA: Biodegradable for sustainable packaging.
PVC: Durable for blister packs and medical trays.
Applications
Rayshape’s plastic thermoforming machines serve multiple industries:
Packaging: Food trays, blister packs, and cups.
Automotive: Dashboards, air ducts, and interior components.
Medical: Sterile trays and device housings.
Consumer Goods: Appliance housings and toys.
Construction: Skylights and shower enclosures.
Signage: Displays and exhibition components.
The Rayshape Advantage
As a subsidiary of Elemotion Group, Wenzhou Rayshape Machinery Co., Ltd. combines R&D, production, and after-sales service to deliver cutting-edge plastic thermoforming machines. Since our 2025 rebranding under Wenzhou Elemotion Holdings, we’ve prioritized innovation, energy efficiency, and automation. Our experienced team and robust financial backing ensure high-quality, reliable equipment tailored to client needs.
The Future with Rayshape
Rayshape is driving the evolution of thermoforming with:
Automation: Robotics for handling, trimming, and stacking.
AI Controls: Optimizing processes and enabling predictive maintenance.
Sustainability: Supporting recycled and bio-based plastics.
Energy Efficiency: Reducing power consumption.
Integrated Solutions: Combining extrusion and thermoforming for streamlined production.
Conclusion
Wenzhou Rayshape Machinery Co., Ltd. empowers industries with plastic thermoforming machines that deliver precision, efficiency, and versatility. From packaging to medical and automotive applications, our innovative equipment shapes the future of plastic manufacturing, one high-quality part at a time.
Specifications Of Thermoforming Machines
Sheet Materials
PP/PS/PET/PLA/PE
Air Consumption
3m³/min
0.5-0.8bar
Sheet Thickness
0.2-1.5mm
Weight
11000kg
Forming Area
650*450mm
Total Installed Power
116Kw
Width Of Sheet
370-700mm
Heating Power
90kw
Upper Forming Depth
100mm
Feeding Motor
3kw
Bottom Forming Depth
130mm
Control Forming Plug Motor Power
3kw
Max Speed
45moulds/min
Stacking Motor
1.8kw
The Longest Knife
8m
Winding Waste Of Edge Sheet Motor Power
0.4kw
Dimension
10210*2300*2700mm
Forming Motor
4.4kw*2
Forming clamping force
600kn
Cutting Motor
4.4kw*2
Punching clamping force
600kn
Advantages Of Plastic Thermoforming Machines
Loading sheet part
Load automatically, lower human resource cost.
Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.
Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the productionefficiency.
Max undertake roll of sheet
Weight:600kg, Diameter 800mm.
Feeding sheet part
Automatic feeding reduces human resource costs.
Actively transport the sheet and reduce the load on the conveying servo motor.
Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.
Human-machine interface
Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.
Heater
1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.
2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.
Molding station
1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.
2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.
Molding mold
The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.
There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.
Guide head structure
The workstation is supported by four columns (45# steel, hard chrome plated).
The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.
A five-point-connecting-rod structure
This structure design provides more stable operation and faster speed.
Mold change structure
The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.
Servo motor
The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.
Servo-controlled conveyor belt
Set conveyor belt parameters directly on the operation screen.
Freely adjust and control conveying length and speed.
Rewinding waste of edge sheet
Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.
This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
Wenzhou Rayshape Machinery Co., Ltd., located in the Binhai New Area of Wenzhou, is a leading enterprise in the production of the Plastic Thermoforming Machine. As a key subsidiary of the Elemotion...
The professional catering industry requires the high-volume output of the Food Box Machine from Wenzhou Rayshape Machinery Co., Ltd. As part of the Elemotion Group, we are based in Wenzhou and spec...
Global supply chains demand the efficiency of the Automatic Plastic Box Making Machine from Wenzhou Rayshape Machinery Co., Ltd. A subsidiary of Elemotion Group, we are located at No. 19, East Sect...
Wenzhou Rayshape Machinery Co., Ltd., a subsidiary of Elemotion Group, offers a Plastic Container Making Machine that is fully compatible with BOPS and HIPS. Located in the coastal Binhai New Area ...

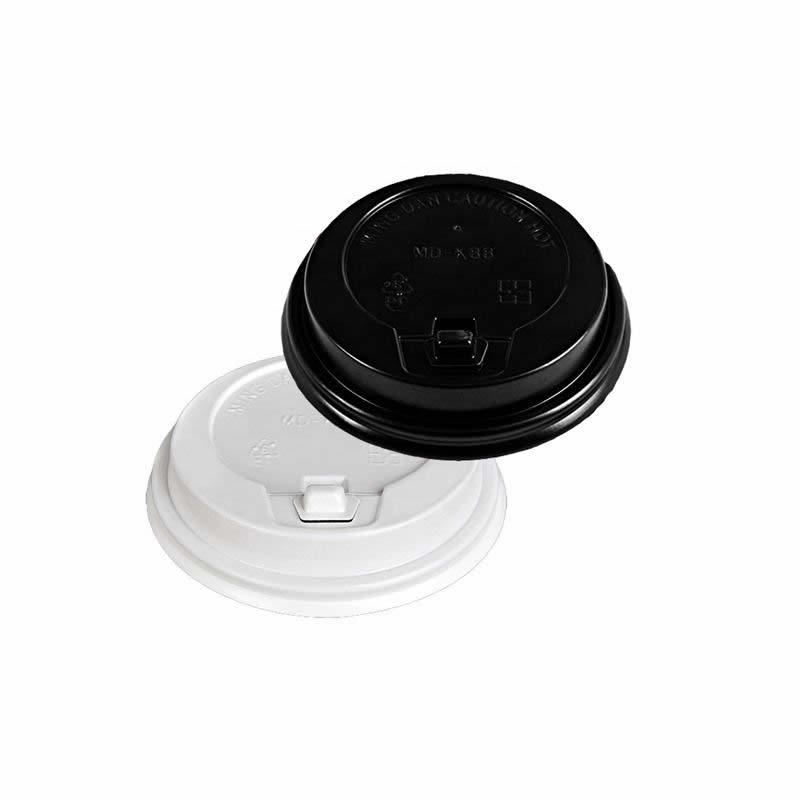

Microwaveable trays require the stability of the PP Plastic Thermoforming Machine from Wenzhou Rayshape Machinery Co., Ltd. As part of Elemotion Group, our company in Wenzhou focuses on high-end au...
