Thermoforming Machine

Four-Station Plastic forming machine

Model：RS-730-800-4

RS-730-800-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Three-Station Plastic Thermoforming Machine

Model：RS-730-800-3

RS-730-800-3 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Four-Station Plastic Thermoforming Machine

Model：RS-730-610-4

RS-730-610-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Four-Station Plastic Thermoforming Machine

Model：RS-650-450-4

RS-650-450-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

The Rayshape utomatic Thermoforming Machines Advantage

2025-07-17

Advancing Plastic Manufacturing with Automatic Thermoforming Machines: The Wenzhou Rayshape Machinery Advantage

In the dynamic landscape of modern manufacturing, automatic thermoforming machines have emerged as a cornerstone technology for producing high-quality plastic products with precision and efficiency. These advanced systems are revolutionizing industries ranging from packaging to consumer goods by enabling the rapid, cost-effective production of complex plastic components. At the forefront of this technological evolution is Wenzhou Rayshape Machinery Co., Ltd., a subsidiary of Elemotion Group, dedicated to delivering cutting-edge, energy-efficient, and highly automated equipment that meets the diverse needs of global markets.

The Power of Automatic Thermoforming Machines

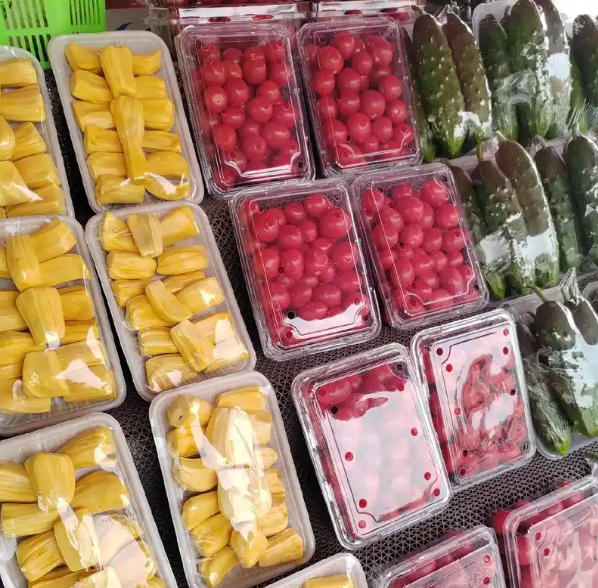

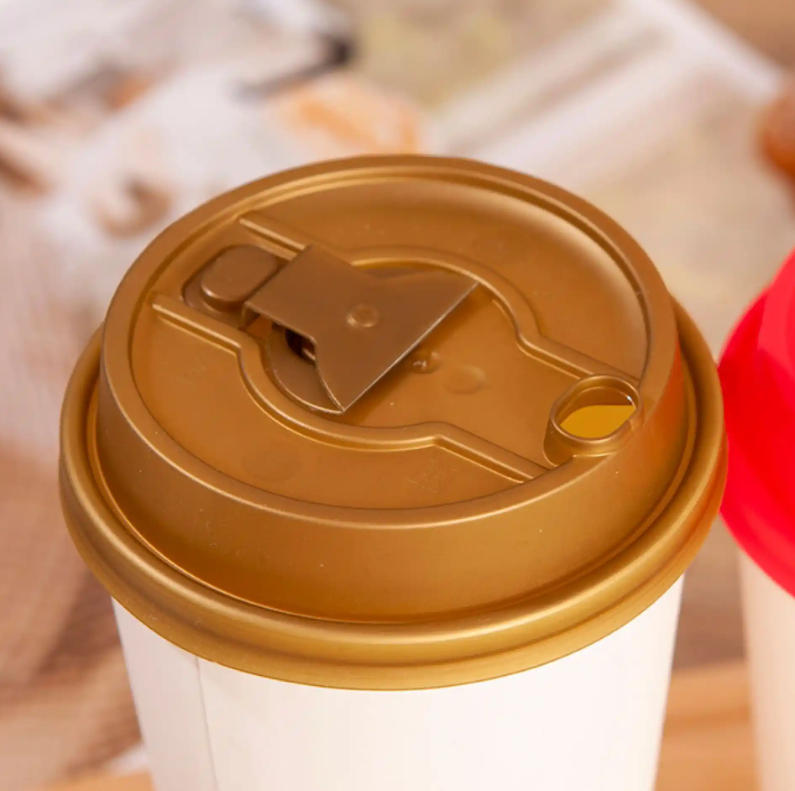

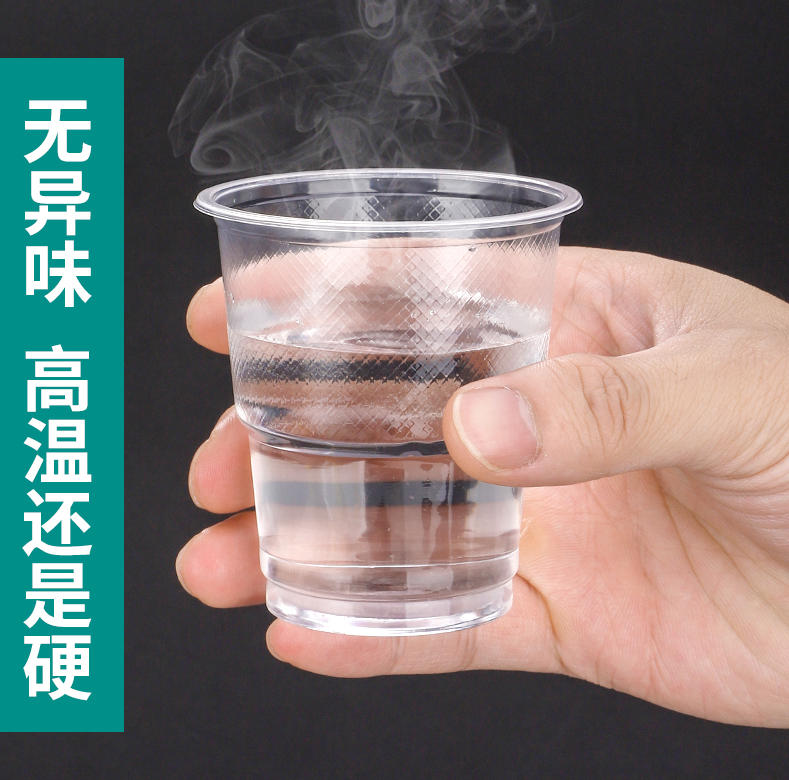

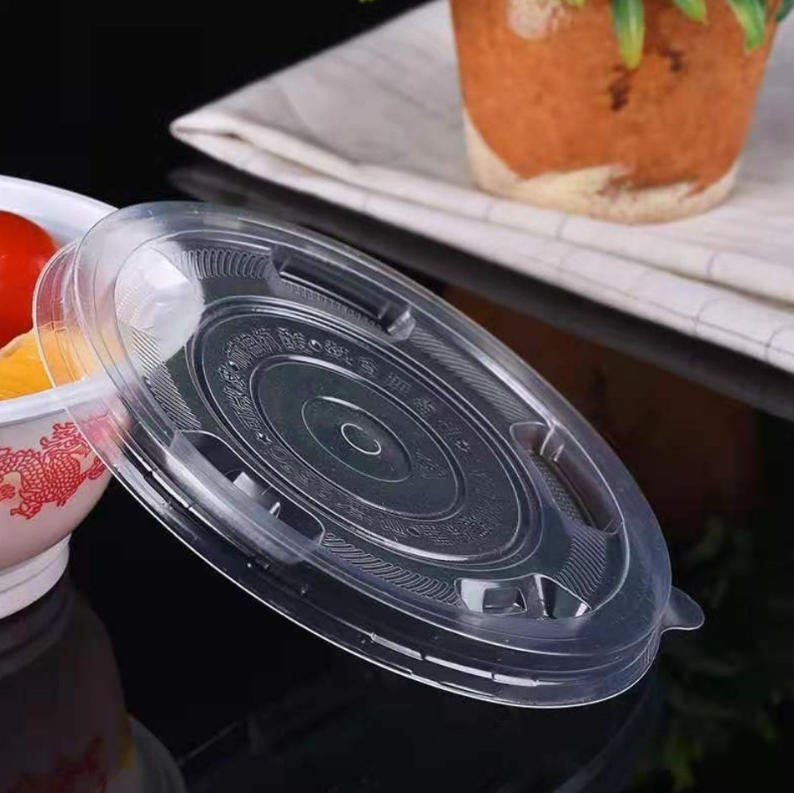

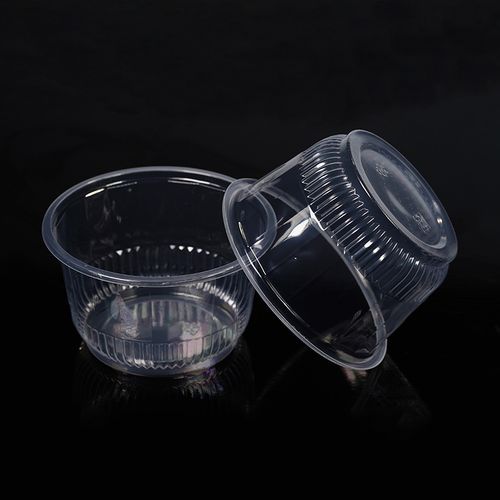

Automatic thermoforming machines are designed to transform plastic sheets into precise, molded products through a process that involves heating, forming, and cooling. These machines excel in producing items such as food containers, trays, lids, and other plastic components with consistent quality and minimal waste. By integrating positive and negative pressure systems, automatic thermoforming machines offer unparalleled versatility, accommodating a wide range of materials, including A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, and PVC. This adaptability makes them indispensable for manufacturers seeking sustainable and efficient production solutions.

Key advantages of automatic thermoforming machines include:

High Efficiency: Automated processes reduce manual intervention, enabling faster production cycles and higher output.
Precision and Consistency: Advanced control systems ensure uniform product quality, meeting stringent industry standards.
Energy Efficiency: Modern designs minimize energy consumption, aligning with global sustainability goals.
Material Versatility: Compatibility with eco-friendly materials like PLA and R-PET supports environmentally conscious manufacturing.

Wenzhou Rayshape Machinery: A Legacy of Innovation

Located in the vibrant coastal city of Pingyang County, Wenzhou, Zhejiang Province, at No. 19, East Section of Pinghai Avenue, Binhai New Area, Wenzhou Rayshape Machinery Co., Ltd. is a manufacturing powerhouse under the Elemotion Group umbrella. Established as a subsidiary in 2021 through Elemotion’s investment in Wuhu Youhe Automation Technology Co., Ltd., the company was officially renamed Wenzhou Rayshape Machinery Co., Ltd. in 2025 and is now wholly owned by Wenzhou Elemotion Holdings.

Rayshape Machinery is more than just a manufacturer; it is an innovator committed to integrating mechanical and software R&D, production, marketing, and after-sales service into a seamless operation. With a seasoned R&D team, robust operational capabilities, and a solid financial foundation, the company is well-positioned to lead the industry in developing high-end, automated equipment. Rayshape’s product portfolio includes positive and negative pressure plastic thermoforming machines, plastic sheet extrusion lines, and plastic roll forming machines, all designed to deliver superior performance and reliability.

Rayshape’s Contribution to Thermoforming Excellence

Wenzhou Rayshape Machinery Co., Ltd. has leveraged its expertise to develop automatic thermoforming machines that embody the company’s commitment to quality, innovation, and sustainability. These machines are engineered to handle a broad spectrum of materials, enabling manufacturers to produce diverse plastic products with precision and efficiency. By incorporating advanced automation and energy-saving technologies, Rayshape’s thermoforming solutions reduce operational costs while maintaining high output standards, making them ideal for industries such as food packaging, medical supplies, and consumer goods.

The company’s dedication to continuous improvement mirrors the Elemotion Group’s ethos of diligence and excellence. Rayshape’s R&D team consistently pushes the boundaries of technology, developing equipment that not only meets but exceeds customer expectations. This commitment is evident in the company’s ability to deliver tailored solutions that cater to specific production needs, ensuring flexibility and scalability for businesses of all sizes.

A Vision for the Future

Wenzhou Rayshape Machinery Co., Ltd. is not content to rest on its achievements. Embracing Elemotion’s legacy of self-surpassing excellence, the company is on a mission to become a global leader in the manufacturing of automated equipment. By investing in cutting-edge technologies and fostering a culture of innovation, Rays Halls is paving the way for a new era of sustainable and efficient plastic manufacturing.

As industries worldwide continue to demand high-quality, eco-friendly production solutions, Rayshape’s automatic thermoforming machines stand out as a testament to the company’s vision. With a focus on energy efficiency, material versatility, and automation, Wenzhou Rayshape Machinery Co., Ltd. is poised to shape the future of the thermoforming industry, delivering unparalleled value to its clients and contributing to a more sustainable world.

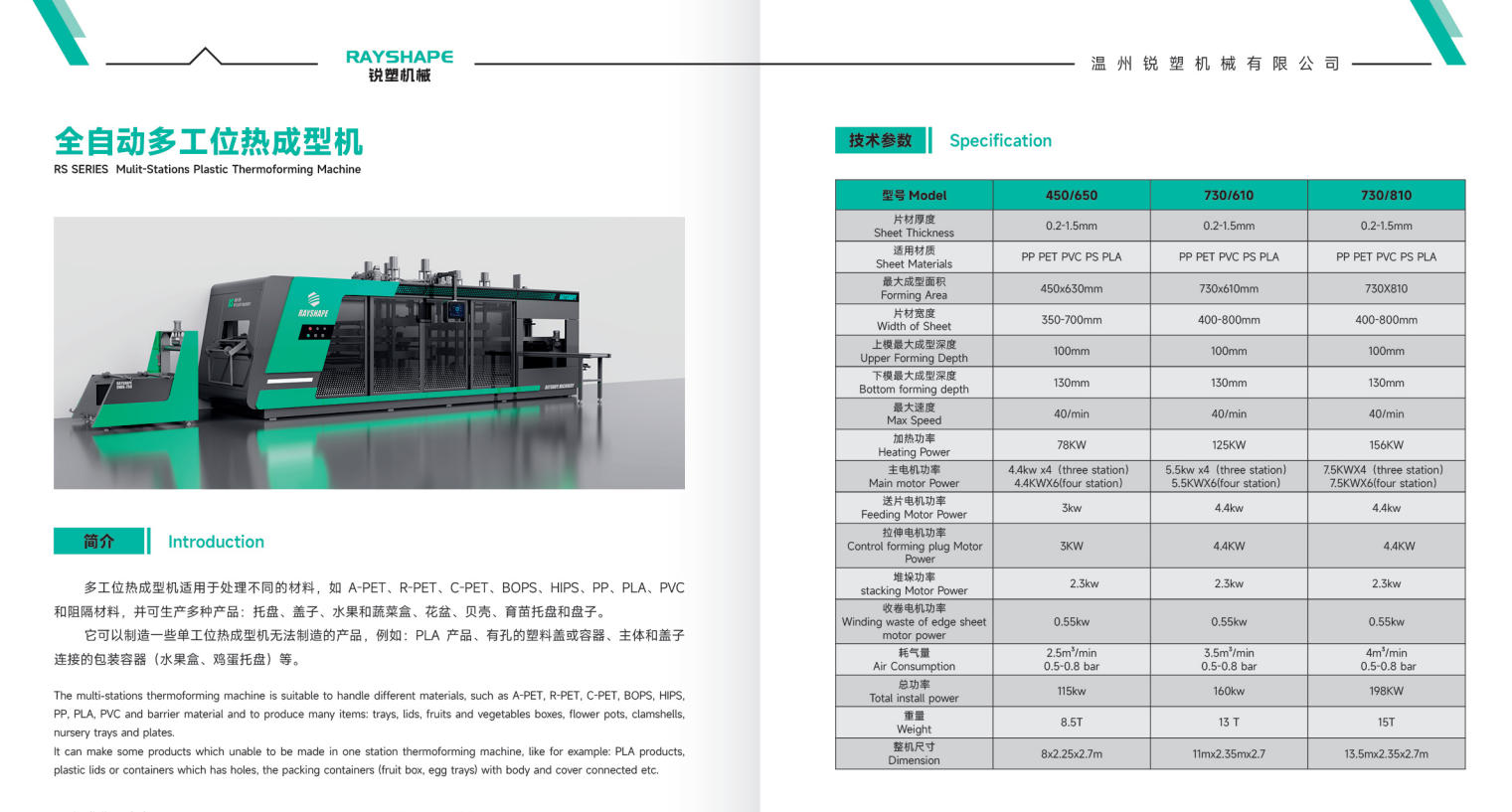

Specifications Of Thermoforming Machines

Sheet Materials	PP/PS/PET/PLA/PE	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-1.5mm	Weight	12500kg
Forming Area	730*610mm	Total Installed Power	174Kw
Width Of Sheet	400-800mm	Heating Power	140kw
Upper Forming Depth	100mm	Feeding Motor	4.4kw
Bottom Forming Depth	130mm	Control Forming Plug Motor Power	4.4kw
Max Speed	45moulds/min	Stacking Motor	1.8kw
The Longest Knife	10m	Winding Waste Of Edge Sheet Motor Power	0.4kw
Dimension	1150023502700mm	Forming Motor	5.5kw*2
Forming clamping force	750kn	Cutting Motor	5.5kw*2
Punching clamping force	750kn

Advantages Of Plastic Thermoforming Machines

Loading sheet part

Load automatically, lower human resource cost.

Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.

Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.

Max undertake roll of sheet

Weight:600kg, Diameter 800mm.

Feeding sheet part

Automatic feeding reduces human resource costs.

Actively transport the sheet and reduce the load on the conveying servo motor.

Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.

Human-machine interface

Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.

Heater

1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.

2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

Molding station

1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.

2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.

Molding mold

The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.

There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.

Guide head structure

The workstation is supported by four columns (45# steel, hard chrome plated).

The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.

A five-point-connecting-rod structure

This structure design provides more stable operation and faster speed.

Mold change structure

The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.

Servo motor

The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

Servo-controlled conveyor belt

Set conveyor belt parameters directly on the operation screen.

Freely adjust and control conveying length and speed.

Rewinding waste of edge sheet

Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.

This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
