Thermoforming Mold for African 2‑Compartment Food Containers

Thermoforming Mold for African 2‑Compartment Food Containers

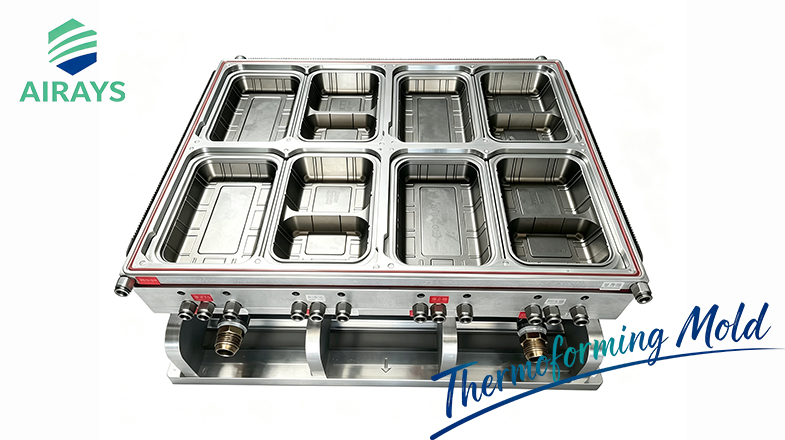

Name: Thermoforming Mold for African 2‑Compartment Food Containers
Brand: AIRAYS
Availability: InStock

Model：African 2‑Compartment Food Containers

Thermoforming Mold

Contact Details

WhatsApp： 8615355870907

Email： zhu@cnrayshape.com

PDF Download Enquire Now

INTRODUCTION

This custom thermoforming mold is specially developed for producing 2‑compartment food containers widely used in the African takeaway and food packaging market. Designed for multi‑station positive‑negative pressure thermoforming equipment, the mold supports efficient mass production of disposable plastic food trays with separate compartments for rice, meat, vegetables, sauces and other ready‑to‑eat meals.

African food packaging often requires containers that can hold different food types in one tray, reduce packaging waste, and improve takeaway efficiency. The 2‑compartment structure must maintain stable compartment separation, sufficient load‑bearing capacity, and flat sealing flanges for easy lidding. If the mold cavity is not properly optimized, problems such as uneven wall thickness, compartment deformation, corner thinning and poor sealing flatness may occur during continuous production. This mold solves these practical challenges through targeted structural design.

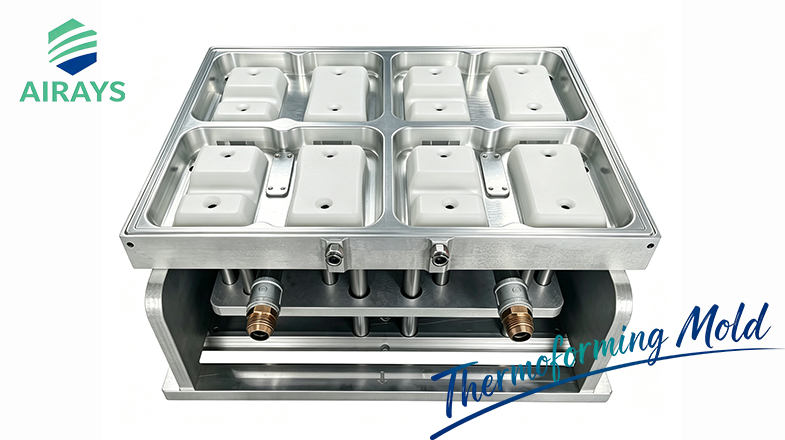

The forming cavity adopts high‑quality CNC‑machined aluminum alloy. Each cavity is precisely processed to ensure consistent tray depth, compartment separation and sealing flange dimension. The vacuum holes are arranged evenly to improve material stretching during forming, which helps reduce local thinning at corners, side walls and compartment edges. This is especially important for 2‑compartment food containers, because the internal divider area requires balanced material distribution to avoid weak points.

The mold is equipped with built‑in circulating water cooling channels. This design enables fast and uniform cooling after forming, helping shorten cycle time and reduce demolding deformation. For high‑volume food container production, stable cooling performance directly affects product consistency, production speed and long‑term mold reliability.

The trimming unit uses high‑strength alloy steel cutting blades. The cutting clearance is optimized according to different sheet materials and container thickness, so that finished trays can obtain smooth edges without obvious burrs. Clean cutting is essential for food‑grade packaging, as it improves safety, stacking performance and end‑user experience.

This mold is compatible with food‑grade PP, PET and PS sheets. Finished 2‑compartment containers are suitable for takeaway restaurants, street food, fast food chains, school canteens, office meal delivery and large‑event catering. When used together with multi‑station thermoforming machines, the mold can complete forming, punching and stacking in one continuous workflow, making it suitable for large‑scale packaging production.

We provide full services including mold design, manufacturing, trial run, sample testing and after‑sales technical support. Customers can provide food container samples, 3D drawings or specific size requirements, and our engineering team can customize the mold structure according to actual production conditions. Mold modification and upgrade services are also available for existing thermoforming lines.

Key Specifications and Advantages

‑ Multi‑cavity layout for efficient 2‑compartment food container production
‑ Optimized cavity structure for stable compartment separation
‑ Precise CNC‑machined aluminum cavity for consistent wall thickness
‑ Even vacuum hole arrangement to reduce corner thinning defects
‑ Built‑in circulating water cooling channels for stable demolding
‑ Alloy steel trimming blade for clean and burr‑free cutting
‑ Compatible with food‑grade PP, PET and PS plastic sheets
‑ Customizable cavity quantity, tray size and divider structure
‑ Complete mold trial run, testing and after‑sales technical support
