Multi-Station Thermoforming Machine by Wenzhou Rayshape Machinery Co., Ltd.

2025-08-17

Written by

Lucas

Mechanical Design Engineer

Proficient in the principles and design software of plastic thermoforming machines and plastic sheet extruders, capable of independently tackling complex structural problems; over 15 years of experience has honed my ability to accurately select components and predict risks.

›

Company Overview

Wenzhou Rayshape Machinery Co., Ltd., a subsidiary of Elemotion Group, is located at No. 19, East Section of Pinghai Avenue, Binhai New Area, Pingyang County, Wenzhou, Zhejiang. As a leading manufacturer, Rayshape integrates R&D, production, marketing, and after-sales service. Originally Wuhu Youhe Automation Technology Co., Ltd., it was rebranded in 2025 under Wenzhou Elemotion Holdings. With a skilled R&D team and robust financial backing, Rayshape specializes in high-end, energy-efficient equipment like Thermoforming Machines, Plastic Sheet Extruders, and Multi-Station Thermoforming Machines, compatible with materials such as A-PET, R-PET, PP, PLA, and PVC.

The Multi-Station Thermoforming Machine

Rayshape’s Multi-Station Thermoforming Machine is a flagship product, designed for efficiency and versatility in plastic processing. It integrates heating, forming, cutting, and stacking into one automated system, streamlining production and reducing costs. Key features include:

Integrated Processing: Combines multiple stages, minimizing equipment needs and factory space.
High Automation: Servo-driven systems and PLC controls ensure precision and minimal waste.
Energy Efficiency: Optimized heating and power management lower energy use.
Material Versatility: Processes A-PET, R-PET, PLA, and more, supporting sustainable production.
High-Speed Output: Rapid cycles and automated stacking boost productivity.

Applications

The machine excels in producing food packaging, medical trays, and consumer goods, meeting diverse industry needs with precision and reliability.

Why Choose Rayshape?

Rayshape’s machine offers cost savings, sustainability, and durability, complemented by comprehensive after-sales support. It synergizes with products like the Plastic Sheet Extruder, enabling end-to-end production solutions. Rayshape’s commitment to innovation and eco-friendly practices positions it as an industry leader, delivering high-quality equipment for global manufacturers.

Specifications Of Thermoforming Machines

Sheet Materials	PP/PS/PET/PLA/PE	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-1.5mm	Weight	14500kg
Forming Area	730*800mm	Total Installed Power	185kw
Width Of Sheet	400-800mm	Heating Power	140kw
Upper Forming Depth	100mm	Feeding Motor	4.4kw
Bottom Forming Depth	130mm	Control Forming Plug Motor Power	4.4kw
Max Speed	48 moulds/min	Stacking Motor	2.9kw
The Longest Knife	12m	Winding Waste Of Edge Sheet Motor Power	0.4kw
Dimension	1150023502700mm	Forming Motor	7.5kw*2
Forming clamping force	750kn	Cutting Motor	7.5kw1 11kw1
Punching clamping force	900kn

Plastic Thermoforming Machine

Four-Station Plastic forming machine

Model：RS-750-800-4

RS-750-800-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Three-Station Plastic Thermoforming Machine

Model：RS-750-800-3

RS-750-800-3 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Four-Station Plastic Thermoforming Machine

Model：RS-750-610-4

RS-730-610-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Four-Station Plastic Thermoforming Machine

Model：RS-650-450-4

RS-650-450-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Advantages Of Plastic Thermoforming Machines

Loading sheet part

Load automatically, lower human resource cost.

Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.

Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.

Max undertake roll of sheet

Weight:600kg, Diameter 800mm.

Feeding sheet part

Automatic feeding reduces human resource costs.

Actively transport the sheet and reduce the load on the conveying servo motor.

Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.

Human-machine interface

Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.

Heater

1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.

2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

Molding station

1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.

2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.

Molding mold

The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.

There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.

Guide head structure

The workstation is supported by four columns (45# steel, hard chrome plated).

The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.

A five-point-connecting-rod structure

This structure design provides more stable operation and faster speed.

Mold change structure

The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.

Servo motor

The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

Servo-controlled conveyor belt

Set conveyor belt parameters directly on the operation screen.

Freely adjust and control conveying length and speed.

Rewinding waste of edge sheet

Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.

This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.

Plastic Thermoforming Machine Video

Fruit box making machine

Fully Automatic Thermoforming Machine

Automatic Plastic Cake Box Manufacturing Machine for PET PP and High Speed Plastic Cake Box Forming Machine for Bakery

Four-Station Plastic Thermoforming Machine Video

Three-Station Plastic Thermoforming Machine

Automatic Disposable Ashtray Manufacturing Machine for PET PVC and High Speed Plastic Ashtray Making Machine for Factory

Multi-Station Plastic forming machine

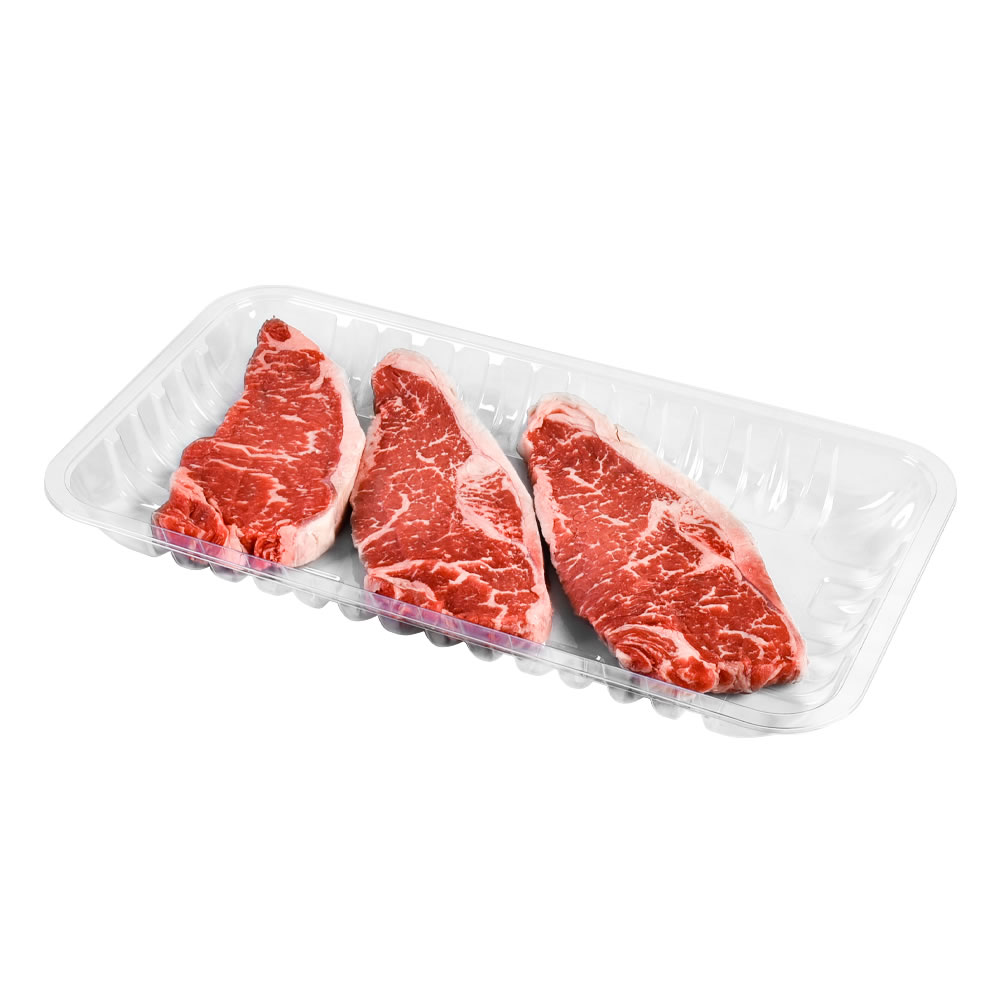

Plastic Container Machine
