We are a professional cup making machine and plastic thermoforming machine manufacturer

2025-07-18

Written by

Lan

Chief Mechanical Engineer

A rare female engineer in the mechanical engineering industry, with over 20 years of experience, possessing both professional depth and a holistic perspective in areas such as technical control, team coordination, project implementation, and risk assessment.

›

Wenzhou Rayshape Machinery Co., Ltd. is a trusted name in the manufacturing of high-quality Cup Making Machines and Plastic Thermoforming Machines, delivering innovative solutions to meet the diverse needs of industries worldwide. Based in Wenzhou, China, our company has built a strong reputation for excellence, precision, and reliability in the production of advanced machinery for plastic product manufacturing.

Expertise in Cup Making Machines

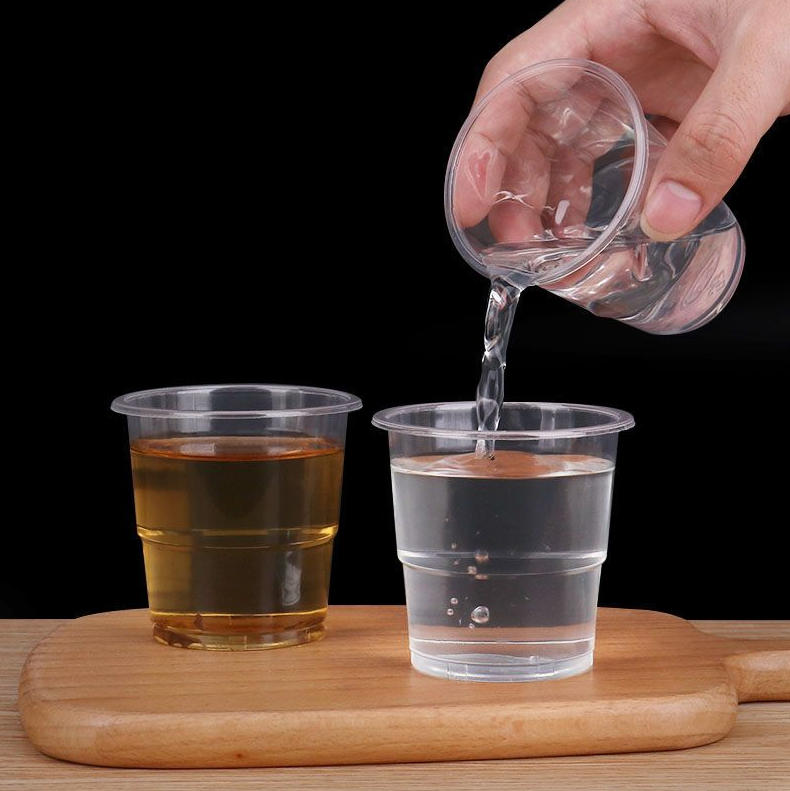

Our Cup Making Machines are designed to produce a wide range of disposable and reusable cups with efficiency and precision. These machines cater to industries such as food and beverage, packaging, and hospitality, enabling businesses to manufacture high-quality plastic cups in various sizes and designs. At Wenzhou Rayshape, we prioritize automation, energy efficiency, and durability, ensuring our machines deliver consistent performance while minimizing operational costs.

Our cup making machines are equipped with state-of-the-art technology, including advanced control systems and high-speed production capabilities. Whether you need machines for producing single-layer or multi-layer cups, our solutions are tailored to meet your specific requirements, ensuring seamless integration into your production line.

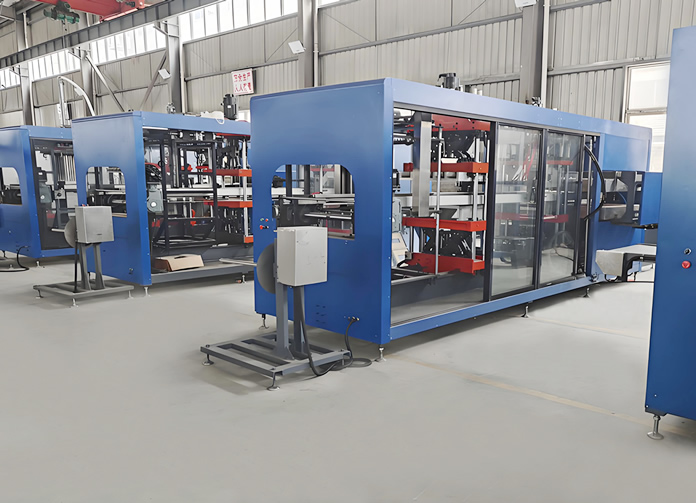

Excellence in Plastic Thermoforming Machines

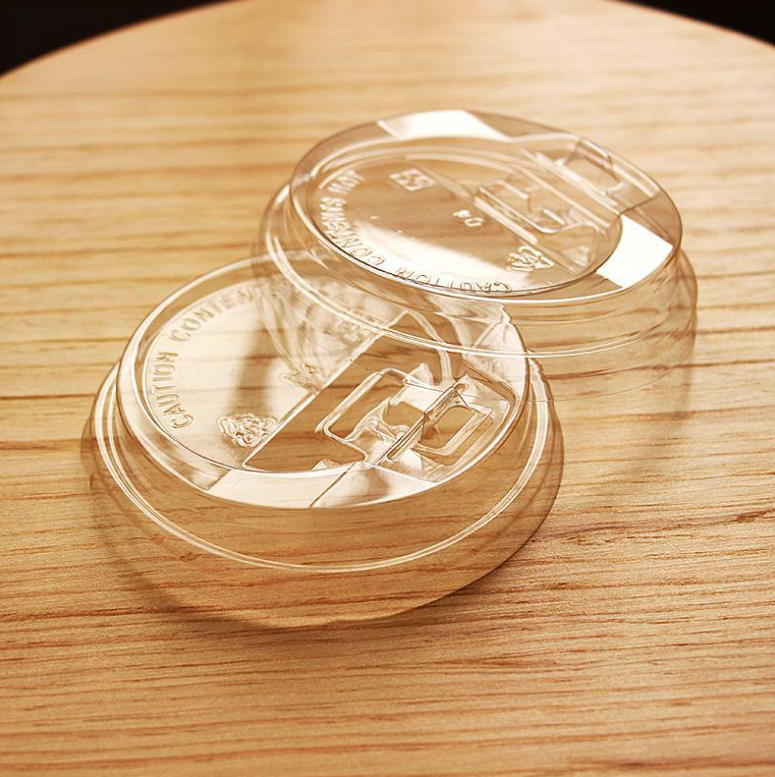

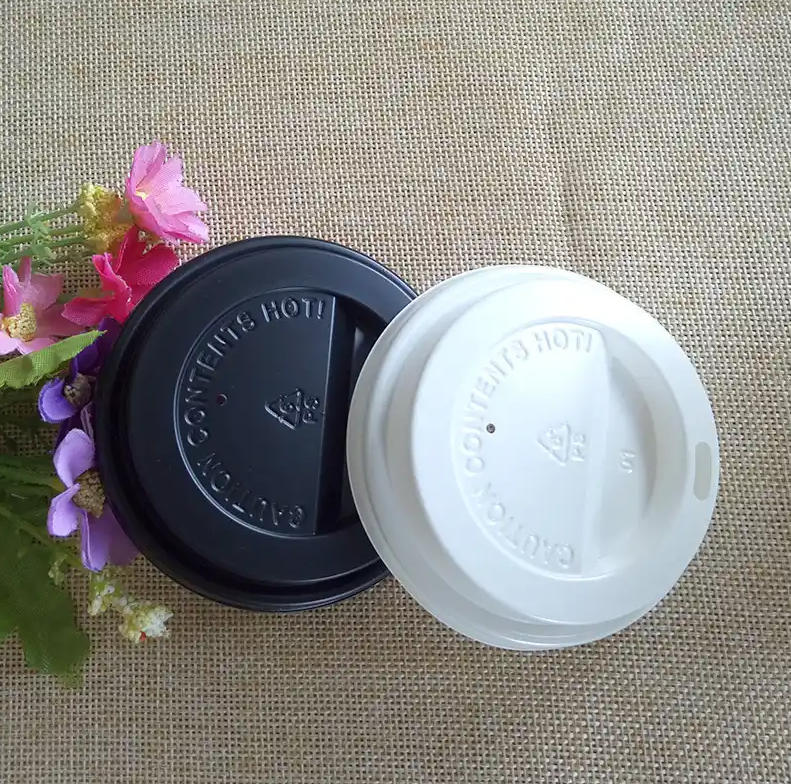

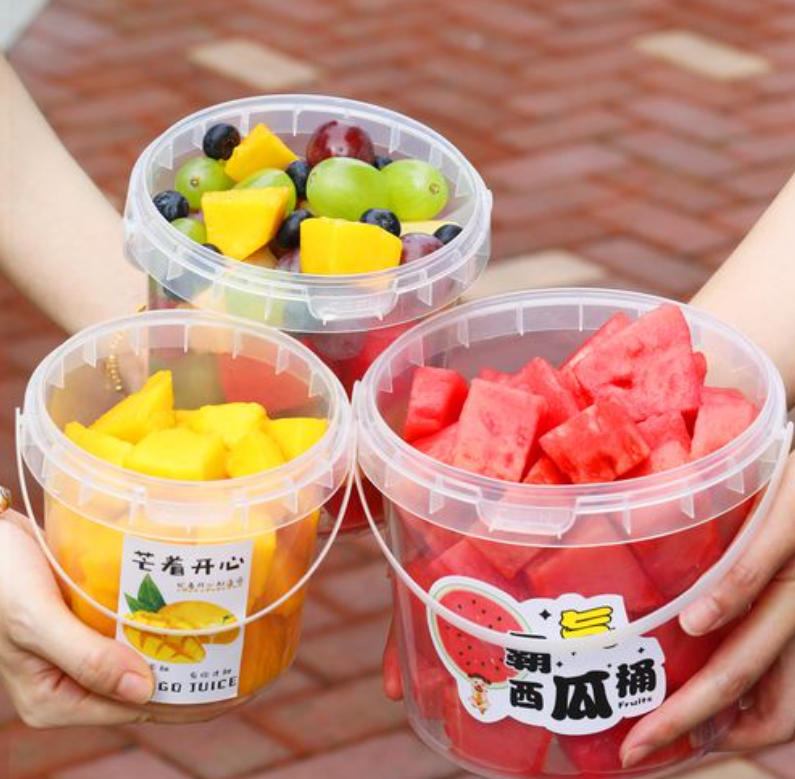

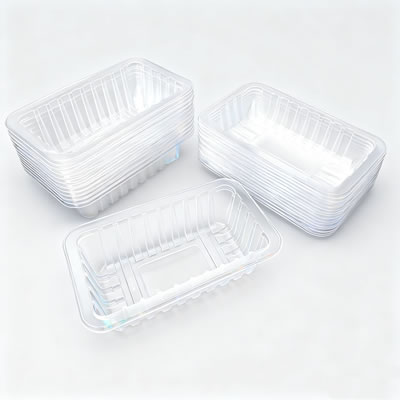

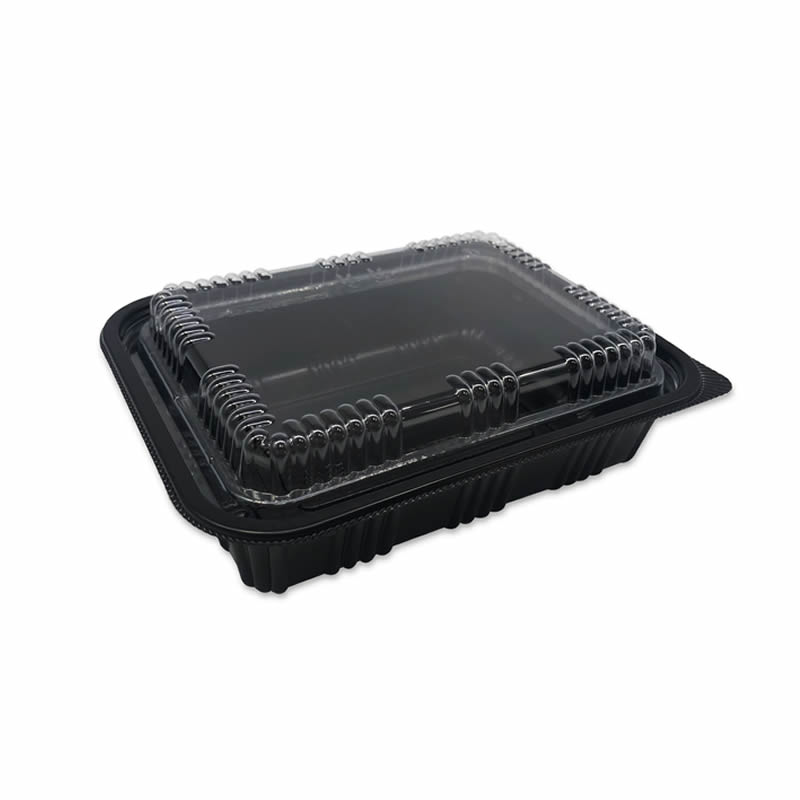

In addition to cup making machines, Wenzhou Rayshape Machinery Co., Ltd. specializes in Plastic Thermoforming Machines, which are widely used for creating a variety of plastic products, including trays, containers, lids, and packaging materials. Our thermoforming machines are engineered to handle different types of materials, such as PP, PET, PS, and PLA, making them versatile for various applications.

Our plastic thermoforming machines stand out for their high precision, fast cycle times, and user-friendly operation. They incorporate cutting-edge features such as automatic feeding, precise temperature control, and efficient molding processes, ensuring superior product quality and reduced waste. These machines are ideal for businesses looking to scale up production while maintaining sustainability and cost-effectiveness.

Why Choose Wenzhou Rayshape Machinery Co., Ltd.?

Innovative Technology: We leverage the latest advancements in machinery design to provide efficient, reliable, and high-performance equipment.

Customization: Our machines are customizable to meet the unique needs of our clients, ensuring flexibility across different industries.

Quality Assurance: Every machine undergoes rigorous testing to meet international quality standards, guaranteeing long-term reliability and performance.

Global Support: With a commitment to customer satisfaction, we offer comprehensive after-sales support, including installation, training, and maintenance services.

Commitment to Sustainability

At Wenzhou Rayshape, we understand the importance of sustainable manufacturing. Our machines are designed to optimize material usage and reduce energy consumption, helping our clients minimize their environmental footprint while maintaining high productivity. We also support the production of eco-friendly products, such as biodegradable cups and containers, to align with global sustainability trends.

Conclusion

Wenzhou Rayshape Machinery Co., Ltd. is your trusted partner for Cup Making Machines and Plastic Thermoforming Machines. With a focus on innovation, quality, and customer satisfaction, we are dedicated to empowering businesses with cutting-edge machinery that drives efficiency and growth. Contact us today to learn more about how our solutions can elevate your production capabilities.

Specifications Of Thermoforming Machines

Sheet Materials	PP/PS/PET/PLA/PE	Air Consumption	3m³/min 0.5-0.8bar
Sheet Thickness	0.2-1.5mm	Weight	11000kg
Forming Area	650*450mm	Total Installed Power	125Kw
Width Of Sheet	370-700mm	Heating Power	90kw
Upper Forming Depth	100mm	Feeding Motor	3kw
Bottom Forming Depth	130mm	Control Forming Plug Motor Power	3kw
Max Speed	45moulds/min	Stacking Motor	1.8kw
The Longest Knife	8m	Winding Waste Of Edge Sheet Motor Power	0.4kw
Dimension	1123023002700mm	Forming Motor	4.4kw*2
Forming clamping force	600kn	Cutting Motor	4.4kw*2
Punching clamping force	600kn	Punching Motor	4.4kw*2

Plastic Cup Making Machine

Plastic Cup Thermoforming Machine

Model：RSC-800-500

RS-800-500 is a new generation full servo plastic cup thermoforming machine. It uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment that integrates mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming and cutting. Compared with hydraulic drive, this machine...

Advantages Of Plastic Thermoforming Machines

Loading sheet part

Load automatically, lower human resource cost.

Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.

Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.

Max undertake roll of sheet

Weight:600kg, Diameter 800mm.

Feeding sheet part

Automatic feeding reduces human resource costs.

Actively transport the sheet and reduce the load on the conveying servo motor.

Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.

Human-machine interface

Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.

Heater

1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.

2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

Molding station

1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.

2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.

Molding mold

The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.

There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.

Guide head structure

The workstation is supported by four columns (45# steel, hard chrome plated).

The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.

A five-point-connecting-rod structure

This structure design provides more stable operation and faster speed.

Mold change structure

The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.

Servo motor

The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

Servo-controlled conveyor belt

Set conveyor belt parameters directly on the operation screen.

Freely adjust and control conveying length and speed.

Rewinding waste of edge sheet

Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.

This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
