Cup Making Machine

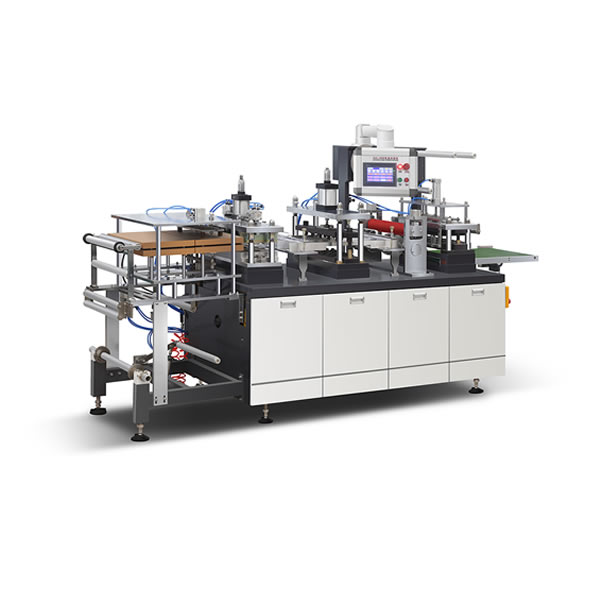

Plastic Cup Thermoforming Machine

Model：RSC-800-500

RS-800-500 is a new generation full servo plastic cup thermoforming machine. It uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment that integrates mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming and cutting. Compared with hydraulic drive, this machine...

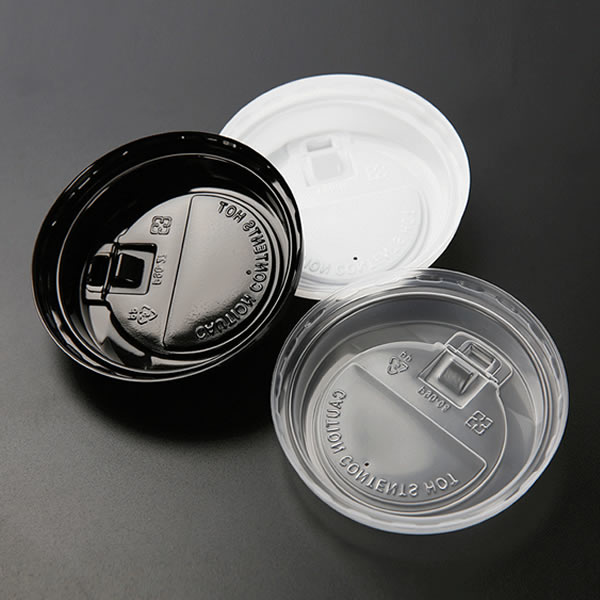

Precision and Performance: Plastic Cap Forming Machines by Rayshape

2025-08-06

In the food, beverage, and pharmaceutical industries, a plastic cap's quality is paramount for product integrity and consumer safety. Meeting this demand for precision and reliability requires specialized machinery. This is where Wenzhou Rayshape Machinery Co., Ltd. excels with its advanced plastic cap forming machines.

As a subsidiary of the Elemotion Group, Rayshape is a leading manufacturer in Wenzhou, Zhejiang, dedicated to producing high-end, energy-efficient, and highly automated equipment. Our company, officially established as Wenzhou Rayshape Machinery Co., Ltd. in 2025 under Wenzhou Elemotion Holdings, leverages a seasoned R&D team and robust financial backing to drive innovation.

Our plastic cap forming machines are a testament to this commitment. They utilize cutting-edge thermoforming technology to precisely shape materials like A-PET, R-PET, BOPS, and PLA into durable, uniform caps. This automated process ensures high-volume production with efficiency, consistency, and minimal waste.

Beyond cap forming, Rayshape's expertise extends to a wide range of plastic processing equipment, including plastic thermoforming machines, plastic sheet extrusion lines, and plastic roll forming machines. We carry forward the Elemotion spirit of diligence and continuous improvement, striving for self-surpassing excellence to deliver high-quality solutions. Our dedication to innovation ensures that Rayshape remains a trusted partner in the plastic manufacturing industry, providing superior cap forming solutions that meet the diverse needs of global markets.

Specifications Of Thermoforming Machines

Sheet Materials	PP/PS/PET/PLA/PE	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-1.5mm	Weight	17500kg
Forming Area	730*800mm	Total Installed Power	200kw
Width Of Sheet	400-800mm	Heating Power	140kw
Upper Forming Depth	100mm	Feeding Motor	4.4kw
Bottom Forming Depth	120mm	Control Forming Plug Motor Power	4.4kw
Max Speed	48 moulds/min	Stacking Motor	2.9kw
The Longest Knife	12m	Winding Waste Of Edge Sheet Motor Power	0.4kw
Dimension	1450023502700mm	Forming Motor	7.5kw*2
Forming clamping force	750kn	Cutting Motor	7.5kw1 11kw1
Punching clamping force	900kn	Punching Motor	7.5kw1 11kw1

Advantages Of Plastic Thermoforming Machines

Loading sheet part

Load automatically, lower human resource cost.

Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.

Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.

Max undertake roll of sheet

Weight:600kg, Diameter 800mm.

Feeding sheet part

Automatic feeding reduces human resource costs.

Actively transport the sheet and reduce the load on the conveying servo motor.

Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.

Human-machine interface

Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.

Heater

1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.

2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

Molding station

1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.

2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.

Molding mold

The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.

There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.

Guide head structure

The workstation is supported by four columns (45# steel, hard chrome plated).

The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.

A five-point-connecting-rod structure

This structure design provides more stable operation and faster speed.

Mold change structure

The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.

Servo motor

The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

Servo-controlled conveyor belt

Set conveyor belt parameters directly on the operation screen.

Freely adjust and control conveying length and speed.

Rewinding waste of edge sheet

Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.

This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
