Custom mold Plastic Bowl Making Machine for round plastic bowls

▶

Custom mold Plastic Bowl Making Machine for round plastic bowls

Model：RSC-800-500

Contact Details

WhatsApp： 8615355870907

Email： zhu@cnrayshape.com

PDF Download Enquire Now

INTRODUCTION

As the disposable tableware industry evolves, manufacturers demand more advanced, reliable equipment—and the RS-800-500 Plastic Bowl Making Machine, a specialized Plastic Thermoforming Machine, is at the forefront of this evolution. Our new generation full-servo system stands as the pinnacle of automated plastic bowl manufacturing, integrating internationally advanced plastic sheet forming technology to deliver performance that surpasses traditional Plastic Thermoforming Machines.
The RS-800-500 Plastic Bowl Thermoforming Machine incorporates a range of advanced features that set it apart from conventional Plastic Thermoforming Machines. Its full-servo drive system replaces outdated hydraulic systems, providing precise control over every aspect of the forming process. This results in more stable plastic bowl production, with consistent thickness, smooth edges, and no defects—something generic Plastic Thermoforming Machines often struggle to achieve. The integrated mechanical, pneumatic, and electrical design ensures seamless coordination, reducing energy consumption by up to 20% compared to standard Plastic Thermoforming Machines.

This advanced Plastic Bowl Making Machine is also designed for maximum convenience and adaptability. It automates every production stage, from material loading to cutting, reducing the need for manual intervention and minimizing human error. The intuitive control system allows operators to easily adjust parameters, monitor production status, and switch between different plastic bowl designs or materials with minimal downtime. It supports a wide range of materials, including A-PET, R-PET, BOPS, HIPS, PP, PLA, PVC, and specialized barrier materials, making it suitable for diverse market needs.

In addition to its advanced performance, the RS-800-500 Plastic Bowl Thermoforming Machine prioritizes durability and low maintenance. Built with high-quality components, it is designed for long-term continuous operation, ensuring minimal downtime and reduced maintenance costs—critical for high-volume manufacturing. As a specialized variant of the Plastic Thermoforming Machine, it is engineered to meet the strict demands of the food-grade disposable tableware industry, guaranteeing a safe, high-quality product every time. For manufacturers aiming to lead the market, this advanced Plastic Bowl Making Machine is the ultimate choice.

MACHINE STRUCTURE

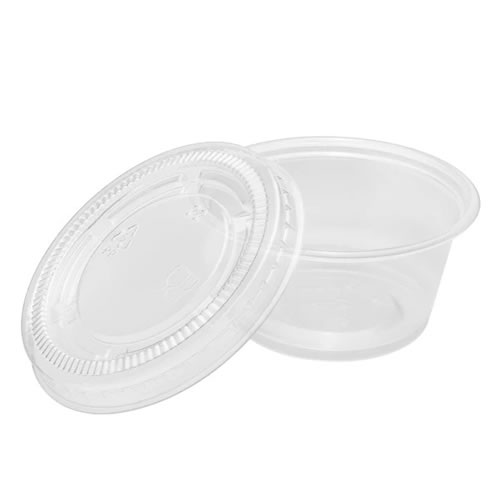

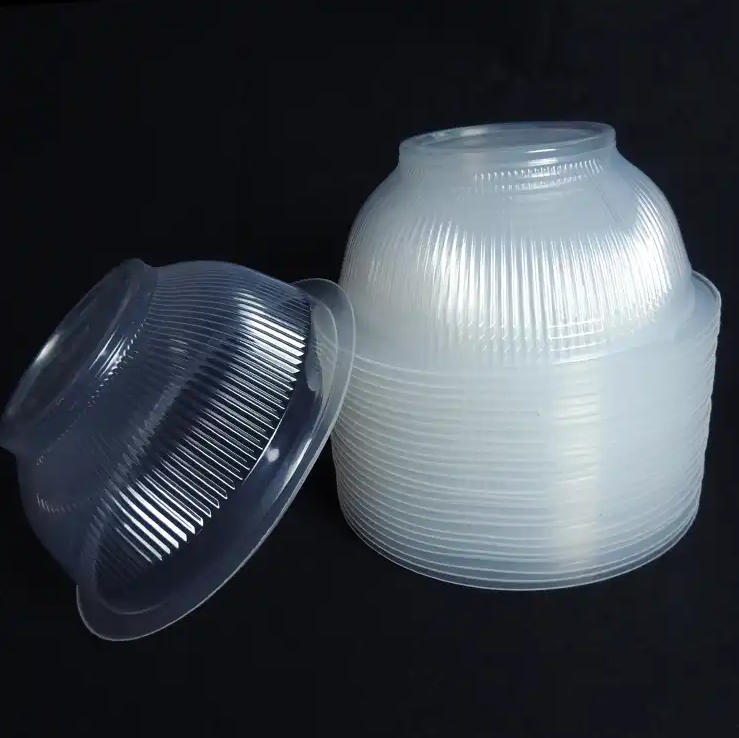

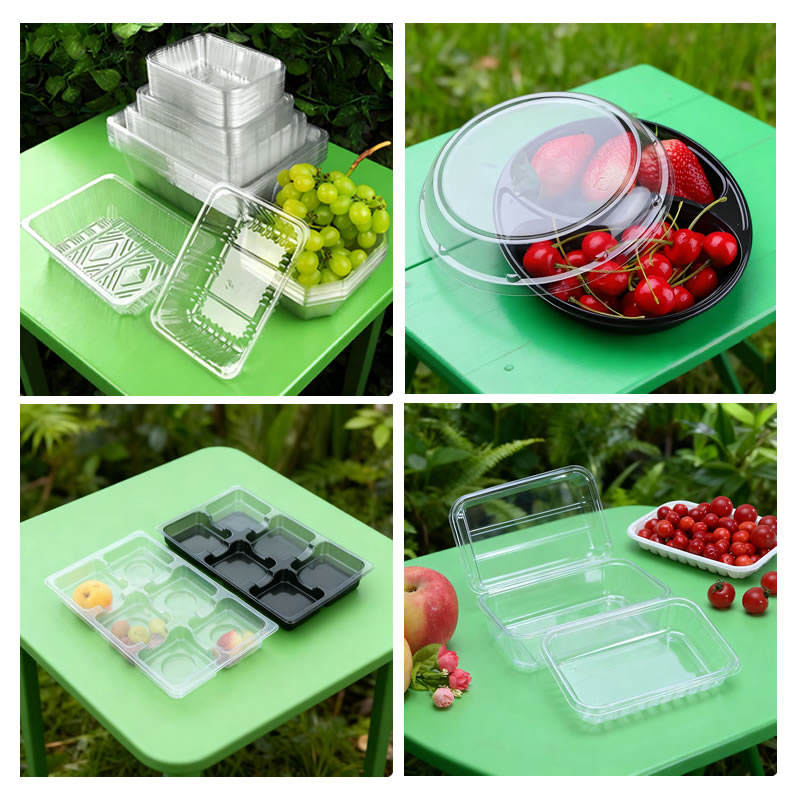

PRODUCTS RANGE

FEATURES AND ADVANTAGES

1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.

2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).

3. Easy-to-operate human-machine interface, and has the function of remote connection.

4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.

5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.

6. The upper and lower electric heating furnaces are used for 6-7 heating stages and protection to reduce the impact of air convection on temperature, ensuring stable product molding. It only takes 3 minutes to heat from 0 to 400 degrees, improving production efficiency. The electric heating furnace can be automatically removed.

7. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.

8. The mold opening and closing by servo motor, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.

9. Positive pressure forming ensures uniform thickness, full shapes, and sharp corners.

10. The chain frame features a fast cooling and wear-resistant design.

11. The cup blowing system offers adjustable blowing angle and air volume.

12. A servo motor chain drive automatically extends the track to prevent sheet sagging, ensuring stable, precise, and smooth sheet feeding.

13. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.

14. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.

SPECIFICAITON

Sheet Materials	PP/PS/PET/PLA/PE/CPET	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-2.5mm	Weight	7500kg
Forming Area	780*480mm	Total Installed Power	150KW
Width Of Sheet	400-850mm	Heating Power	122kw
Max Speed	35moulds/min	Feeding Motor	4.4kw
The Longest Knife	12m	Control Forming Plug Motor Power	5.5kw
Dimension	450020002600mm	Winding Waste Of Edge Sheet Motor Power	0.4kw
Forming clamping force	1100kn	Forming Motor	15kw
Max. Forming Depth	≤180mm by blowing	Machine Travel	≤220mm
