Automatic multi-station thermoforming machine
Model:450/650 730/610 730/810
Contact Details
WhatsApp:
8615355870907
Email:
zhu@cnrayshape.com
Address:
No. 19, East Section of Pinghai road,Binhai New District, Pingyang County, Wenzhou City, Zhejiang Province
Product Details

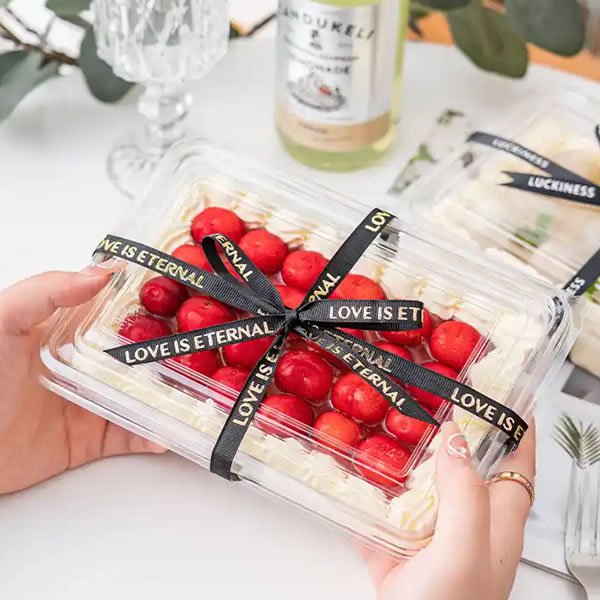

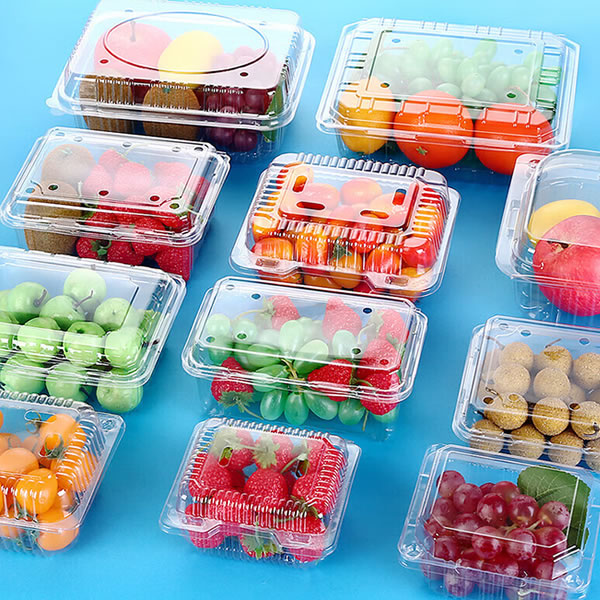

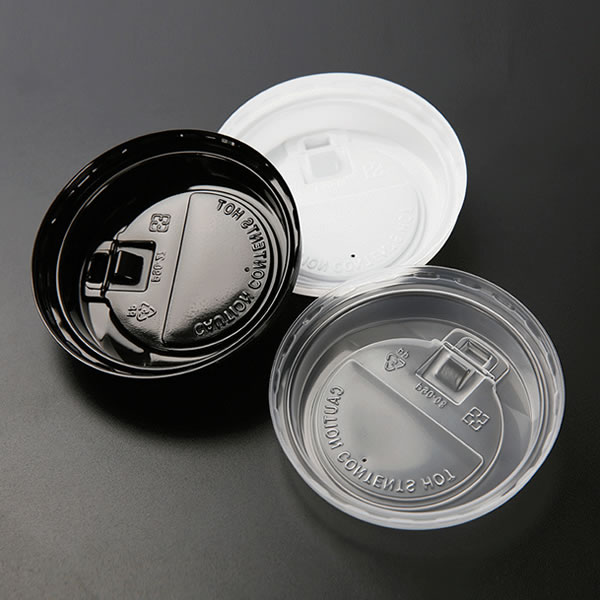

Multi-station thermoforming machines are suitable for processing different materials such as A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, PVC and barrier materials, and can produce a variety of products: trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates.
It can make some products that single-station thermoforming machines cannot make, such as: PLA products, plastic lids or containers with holes, packaging containers with connected bodies and lids (fruit boxes, egg trays), etc.
Model |
450/650 |
730/610 | 730/810 | |
Sheet thickness |
0.2-1.5mm |
0.2-1.5mm |
0.2-1.5mm | |
Applicable materials |
PP PET PVC PS PLA |
PP PET PVC PS PLA |
PP PET PVC PS PLA | |
Maximum molding area |
450x630mm |
730x610mm | 730X810 | |
Sheet width |
350-700mm |
400-800mm |
400-800mm | |
Maximum forming depth of upper die |
100mm |
100mm |
100mm | |
Maximum forming depth of lower die |
130mm |
130mm |
130mm | |
Maximum speed |
40/min |
40/min |
40/min | |
Heating power |
78KW |
125KW |
156KW | |
Main motor power |
4.4kw x 4 4.4kw x 6 |
5.5kw x 4 5.5kw x 6 |
7.5kw x 4 7.5kw x 6 |
|
Feeding motor power |
3kw |
4.4kw | 4.4kw | |
Stretching motor power |
3kw | 4.4kw | 4.4KW | |
Stacking power |
2.3kw | 2.3kw | 2.3kw | |
Winding motor power |
0.55kw |
0.55kw |
0.55kw | |
Air consumption |
2.5m²/min 0.5-0.8 bar |
3.5m²/min 0.5-0.8 bar |
4m²/min 0.5-0.8 bar |
|
Total power |
115kw |
160kw | 198KW | |
Weight |
8.5T | 13T | 15T | |
Overall machine size |
8x2.25x2.7m | 11mx2.35mx2.7 | 13.5mx2.35x2.7m |
