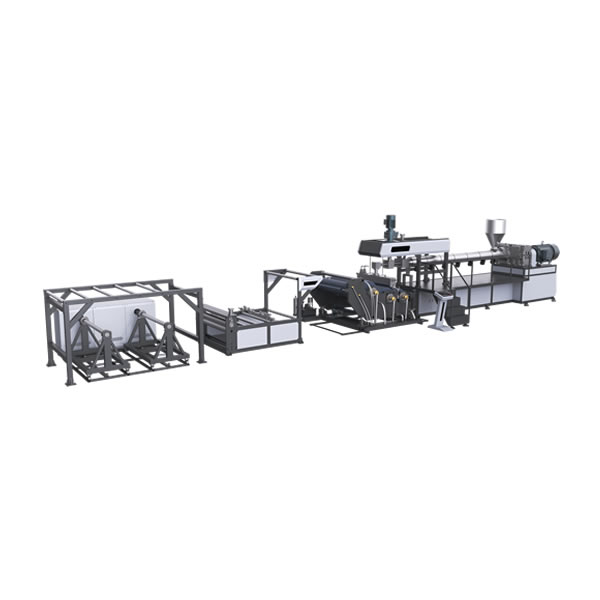

RS series single layer plastic extruder
Model:RS-1000/110 RS-1000-120 RS-1000/130
Contact Details
WhatsApp:
8615355870907
Email:
zhu@cnrayshape.com
Address:
No. 19, East Section of Pinghai road,Binhai New District, Pingyang County, Wenzhou City, Zhejiang Province
Product Details

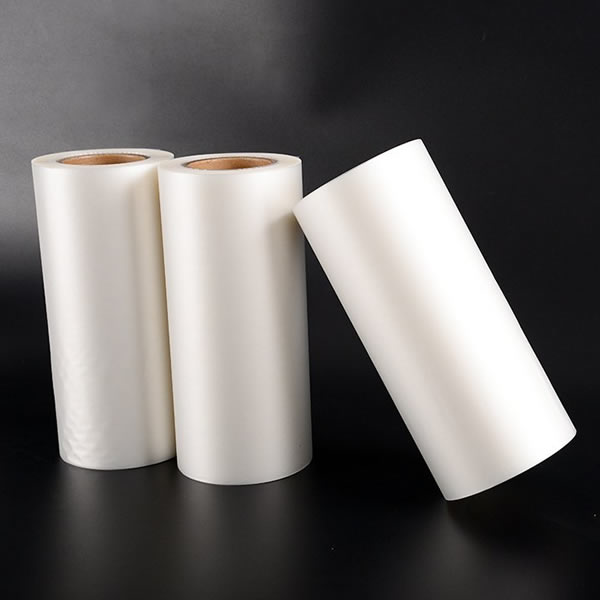

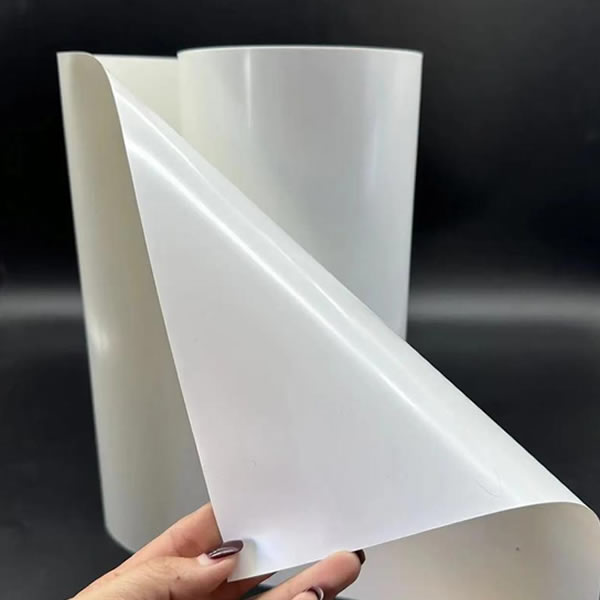

This sheet extruder adopts cast extrusion design. It is an extruder series designed for thin sheets with high plasticization requirements, uniform mixing, and high-quality sheets. It is suitable for various production requirements. All machine accessories are well-known domestic and foreign brands, ensuring high efficiency and stability throughout the production process. Applicable materials: PP, HIPS, PE and other plastic sheet extrusion, used for the production of plastic packaging products thermoforming or printing products.
Model |
RS-1000/110 |
RS-1000/120 | RS-1000/130 |
Die head width |
1000mm |
1000mm |
1000mm |
Applicable materials |
PP.PS.PE |
PP.PS.PE |
PP.PS.PE |
Product width |
PP.PE:850mm PS:750mm |
PP.PE:850mm PS:750mm |
PP.PE:850mm PS:750mm |
Three-roller specifications |
Φ350*1000mm*1 Φ450*1000mm*2 |
Φ350*1000mm*1 Φ450*1000mm*2 |
Φ350*1000mm*1 Φ500*1000mm*2 |
Product thickness |
PP.PE:0.3-2mm PS:0.2-2mm |
PP.PE:0.3-2mm PS:0.2-2mm |
PP.PE:0.3-2.5mm PS:0.15-2mm |
Screw size |
Φ110 1:32 |
Φ120 1:35 |
Φ130 1:35 |
Main motor power |
55kw |
132 kw |
160 kw |
Heating power |
40kw |
45 kw |
50 kw |
Total power |
100kw |
180kw |
220kw |
Water flow |
50m³/h |
80m³/h |
80m³/h |
Line speed |
15-30m/min |
15-30m/min |
15-30m/min |
Output |
150-200kg/h |
300-400kg/h |
400-500kg/h |
Equipment size |
12*1.8*3m |
13*1.8*3m | 13.5*1.8*3.5m |
Equipment weight |
7500kg | 10500kg | 12000kg |
