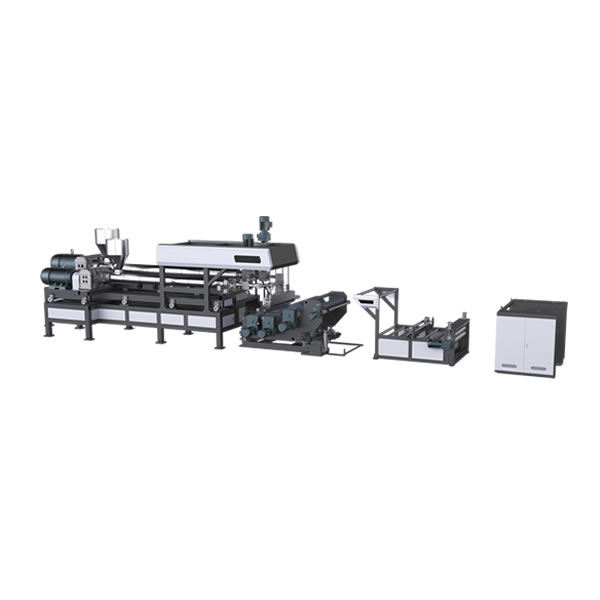

RS Series Double Layer Plastic Sheet Extruder
Model:RS-110/65 RS-120/65
Contact Details
WhatsApp:
8615355870907
Email:
zhu@cnrayshape.com
Address:
No. 19, East Section of Pinghai road,Binhai New District, Pingyang County, Wenzhou City, Zhejiang Province
Product Details

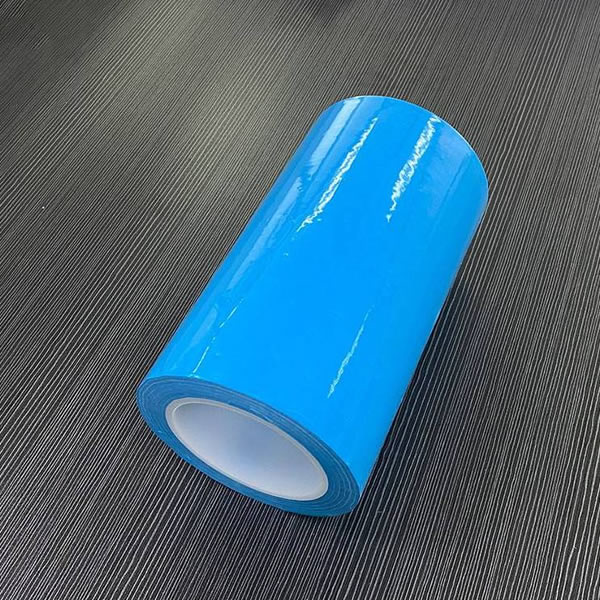

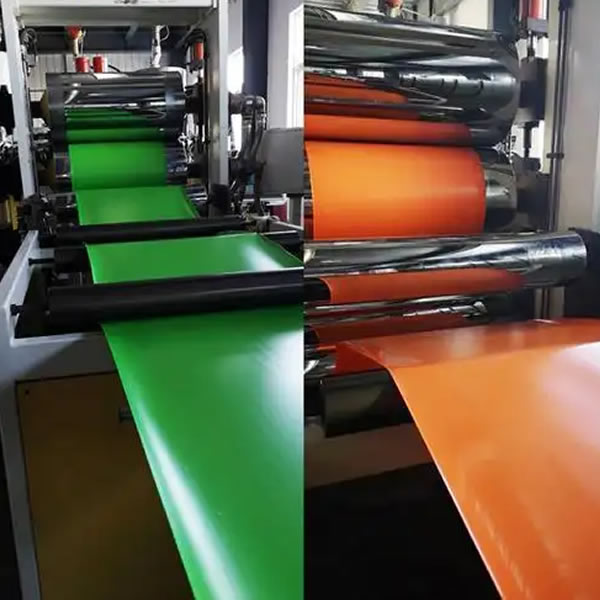

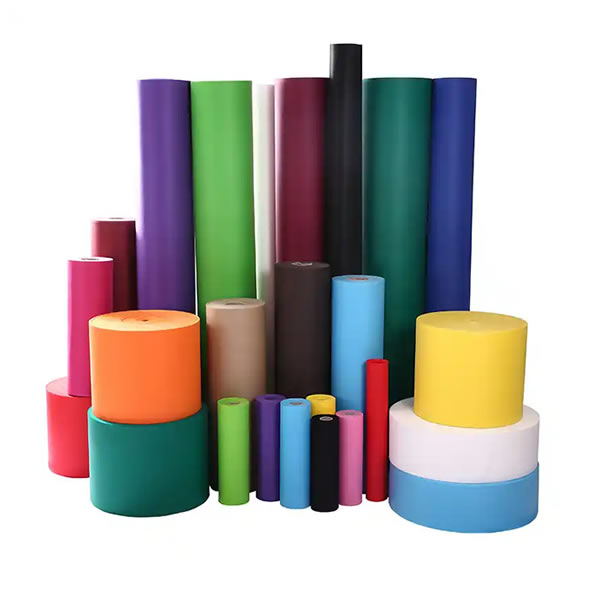

This sheet extruder adopts cast extrusion design. It is an extruder series designed for thin sheets with high plasticization requirements, uniform mixing, and high-quality sheets. It is suitable for various production requirements. All machine accessories are well-known domestic and foreign brands, ensuring high efficiency and stability throughout the production process. Applicable materials: PP, HIPS, PE and other plastic sheet extrusion, used for the production of plastic packaging products thermoforming or printing products.
Model |
RS-110/65 |
RS-120/65 |
Die head width |
1000mm |
1000mm |
Applicable raw materials |
PP.PS.PE |
PP.PS.PE |
Sheet width |
500-880 |
500-880 |
Three-roller size |
Φ350x1000x1 450x1000x2 |
Φ350x1000x1 450x1000x2 |
Sheet thickness |
PP.PE:0.3-2mm PS:0.2-2mm |
PP.PE:0.3-2mm PS:0.2-2mm |
Screw size |
Φ110/65 |
Φ120/65 |
Total power |
150kw |
230kw |
Operating power |
80kw |
120kw |
Line speed |
15-30m/min |
15-30m/min |
Output |
200kg/h |
380kg/h |
Equipment size |
12x2.0x2.5m |
12x2.0x2.5m |
Equipment weight |
9500kg | 14000kg |
