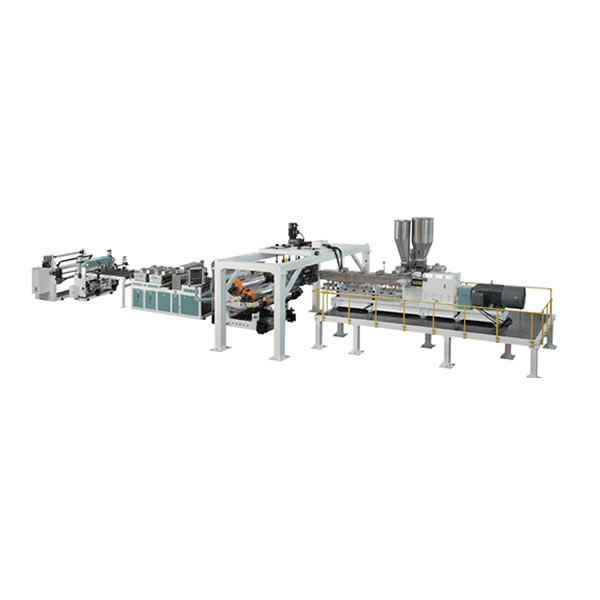

RS Series PET Sheet Extruder
Model:RS-1000/75 RS-1000/85
Contact Details
WhatsApp:
8615355870907
Email:
zhu@cnrayshape.com
Address:
No. 19, East Section of Pinghai road,Binhai New District, Pingyang County, Wenzhou City, Zhejiang Province
Product Details
This sheet extruder adopts cast extrusion design. It is an extruder series designed for thin sheets with high plasticization requirements, uniform mixing, and high-quality sheets. It is suitable for various production requirements. All machine accessories are well-known domestic and foreign brands, ensuring high efficiency and stability throughout the production process. Applicable materials: PET.PLA.BIOMATERIAL and other plastic sheet extrusion, used for the production of plastic packaging products thermoforming or printing products.
Model |
RS-1000/75 |
RS-1000/85 |
Applicable materials |
PET.PLA.BIO MATERIAL |
PET.PLA.BIO MATERIAL |
Sheet width |
400-850 |
400-850 |
Sheet thickness |
0.5-1.8mm |
0.15-1.8mm |
Die width |
1000mm | 1000mm |
Screw size |
Φ75mm 1:42 |
Φ85mm 1:44 |
Three-roller size |
Φ350x1000x1 Φ450x1000x2 |
Φ350x1000x1 Φ500x1000x2 |
Motor power |
132kw |
200kw |
Total power |
220kw |
320kw |
Operating power |
80kw | 95kw |
Line speed |
15-30m/min |
15-30m/min |
Output |
350-450kg/h |
500-650kg/h |
Equipment size |
20x2.5x3.8m |
20xX2.5x3.8m |
Equipment weight |
20000kg |
23000kg |
