High Speed Thermoforming Machine
Model: RS-730-800-3
RS-730-800-3 High Speed Thermoforming Machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet formi...
Fully automatic injection tray thermoforming machine with punching
Model：RS-730-800-3
INTRODUCTION
Injection Tray Automated Production Solutions: The Plastic Tray Machine, specifically engineered for high-precision applications like medical packaging, represents a crucial technological advancement in manufacturing. Our Injection Tray Thermoforming Machine, a specialized iteration of multi-station Plastic Thermoforming Machine technology, is developed to meet the strict quality standards of medical and pharmaceutical industries. This equipment is expertly engineered to reduce labor costs while ensuring the stable, highly reliable output required for complex items like injection and syringe trays.
These highly automated Injection Tray Thermoforming Machine systems, derived from core Plastic Thermoforming Machine technology, are commonly available in three-station and four-station configurations. The four-station model, featuring an essential integrated punching station, offers superior efficiency and the flawless cutting accuracy vital for creating clean edges on medical trays. This specialized Injection Tray Thermoforming Machine, as a dedicated variant of the Plastic Thermoforming Machine, is crucial for manufacturing a wide range of disposable items, including blister packs, injection tray products, cup lids, and other general packaging.
Our Injection Tray Thermoforming Machine demonstrates impressive speed and material flexibility, perfectly suited for processing materials such as PET, PP, and PS—all commonly used for medical trays and optimized for Plastic Thermoforming Machine processing. When utilizing clear PET sheets, favored for medical packaging clarity, the maximum operating speed can reach up to 45 molds per minute. For PP sheets, the maximum speed is typically up to 30 molds per minute. It is important to note that actual operating speed is highly influenced by product depth and sheet thickness; deeper or more complex injection tray designs inherently require a longer forming time.
Built on a brand-new design concept and a future-oriented control system, this Injection Tray Thermoforming Machine guarantees operational excellence and validation readiness. Recognizing that each specialized mold set for injection and syringe trays requires unique, minute operating parameters, we have integrated a parameter save function within the equipment program. Once an engineer successfully debugs and optimizes a specific medical tray mold in the factory, those ideal settings are permanently saved. Resuming production with that exact mold is effortless: simply click 'start,' and the machine, leveraging Plastic Thermoforming Machine technology, will automatically execute the previously stored, validated parameters.
MACHINE STRUCTURE

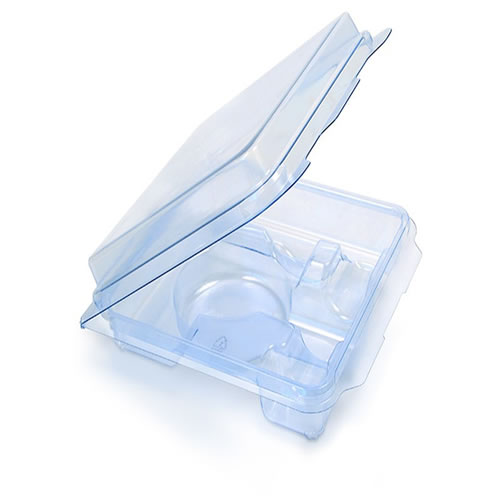

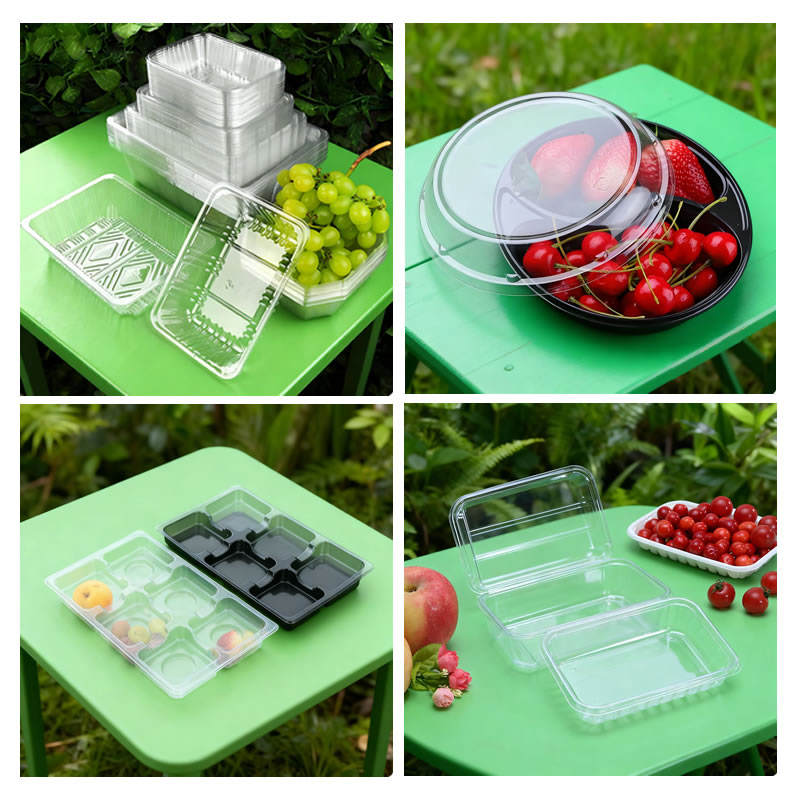

PRODUCTS RANGE
FEATURES AND ADVANTAGES
1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.
2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).
3. Easy-to-operate human-machine interface, and has the function of remote connection.
4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.
5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.
6. The upper and lower electric heating furnaces are used for four-stage heating and protection to reduce the impact of air convection on temperature, so that the product molding is stable, from 0-400 degrees in just 3 minutes, improving production efficiency. The electric heating furnace can automatically remove the device.
7. A new real-time distributed digital dynamic hot forming temperature control system is used to control the temperature of the tile at a single point, and it has automatic compensation control, with an accuracy of ±1℃. Energy saving of about 15% and extended furnace plate service life.
8. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.
9. The mold opening and closing of the forming, punching and cutting stations are controlled by servo motors, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.
10. The unique vertical stacking concept ensures continuous stacking of products.
11. Automatic counting of finished product output, with production data memory function, can store 90 sets of operating data.
12. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.
13. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.
SPECIFICAITON
|
Sheet Materials |
PP/PS/PET/PLA/PE/CPET |
Air Consumption |
4m³/min |
|
Sheet Thickness |
0.2-1.5mm |
Weight |
14500kg |
|
Forming Area |
730*800mm |
Total Installed Power |
185kw |
|
Width Of Sheet |
400-800mm |
Heating Power |
140kw |
|
Upper Forming Depth |
100mm |
Feeding Motor |
4.4kw |
|
Bottom Forming Depth |
130mm |
Control Forming Plug Motor Power |
4.4kw |
|
Max Speed |
48 moulds/min |
Stacking Motor |
2.9kw |
|
The Longest Knife |
12m |
Winding Waste Of Edge Sheet Motor Power |
0.4kw |
|
Dimension |
11500*2350*2700mm |
Forming Motor |
7.5kw*2 |
|
Forming clamping force |
750kn |
Cutting Motor |
7.5kw*1 |
|
Punching clamping force |
900kn |
|
|
