Finished Plastic Cup Machine Waiting for Customer Pickup While New Orders Deliver On Schedule

2026-06-13

Written by

Lee

Mechanical Design Engineer

With 15 years of experience in the field of plastic thermoforming machines, I understand cross-disciplinary collaboration, can optimize designs by combining new materials and processes, and am capable of mentoring newcomers and passing on my technical expertise.

›

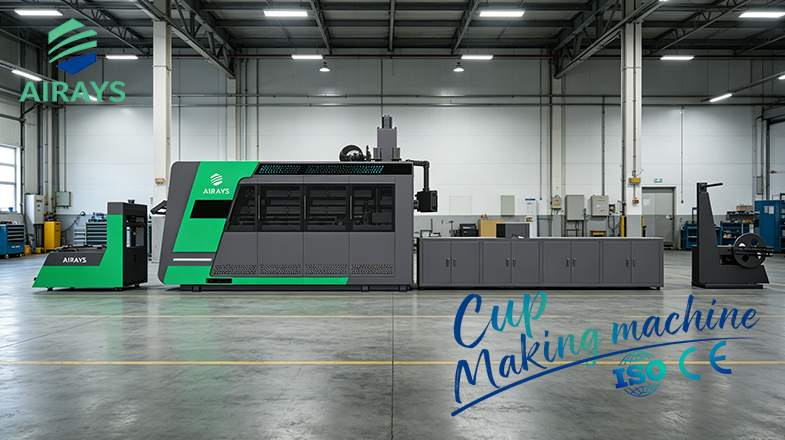

Wenzhou Rayshape Machinery Co., Ltd. (AIRAYS) currently has a fully completed and tested plastic cup forming machine waiting for customer pickup. The equipment has been finished for nearly three months, occupying our workshop storage space for a long time.

Despite the delayed pickup from this overseas client, the machine’s excellent performance has attracted numerous batches of global customers to visit our factory specially. Many visiting clients have witnessed the stable operation, precise forming and efficient production capacity of this plastic cup machine on-site, and highly recognized our equipment quality and manufacturing strength.

While this order is still pending pickup, all our newly confirmed orders have been completed, inspected and delivered to customers on schedule. This stark contrast fully reflects AIRAYS’ stable production capacity and strict delivery management system. We always adhere to standardized production processes, strictly control every equipment detail, and guarantee on-time delivery for all credible clients.
AIRAYS always prioritizes product quality and customer credibility. We will continue to maintain high-standard production and efficient delivery services, and look forward to the smooth pickup and official commissioning of the pending equipment to create production benefits for the customer at an early date.

Plastic Cup Making Machine

Plastic Cup Thermoforming Machine

Model：RSC-800-500

RSC-800-500 is a new generation full servo plastic cup thermoforming machine. It uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment that integrates mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming and cutting. Compared with hydraulic drive, this machin...

Plastic Cup Thermoforming Machine Line

Model：RSC-800-500L

This Plastic Cup Thermoforming Machine Line integrates full-servo multi-station thermoforming with automatic cup collecting & stacking system, realizing fully automatic production from sheet forming, punching, cutting to cup sorting, stacking and output. It is the ideal integrated solution for efficient, unmanned plastic cup manufacturing. Key Features 1.Full-line automatic operation Equipp...

Advantages Of Plastic Thermoforming Machines

Loading sheet part

Load automatically, lower human resource cost.

Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.

Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.

Max undertake roll of sheet

Weight:600kg, Diameter 800mm.

Feeding sheet part

Automatic feeding reduces human resource costs.

Actively transport the sheet and reduce the load on the conveying servo motor.

Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.

Human-machine interface

Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.

Heater

1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.

2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

Molding station

1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.

2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.

Molding mold

The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.

There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.

Guide head structure

The workstation is supported by four columns (45# steel, hard chrome plated).

The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.

A five-point-connecting-rod structure

This structure design provides more stable operation and faster speed.

Mold change structure

The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.

Servo motor

The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

Servo-controlled conveyor belt

Set conveyor belt parameters directly on the operation screen.

Freely adjust and control conveying length and speed.

Rewinding waste of edge sheet

Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.

This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
