Thermoforming Machine

Four-Station Plastic forming machine

Model：RS-730-800-4

RS-730-800-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Three-Station Plastic Thermoforming Machine

Model：RS-730-800-3

RS-730-800-3 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Four-Station Plastic Thermoforming Machine

Model：RS-730-610-4

RS-730-610-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Four-Station Plastic Thermoforming Machine

Model：RS-650-450-4

RS-650-450-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

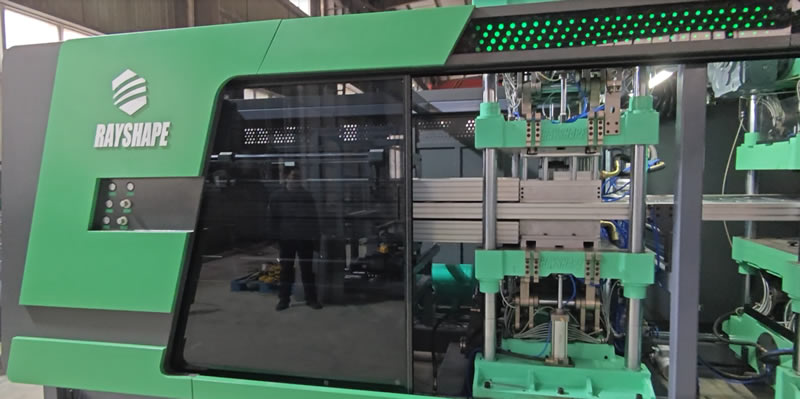

The Rayshape Plastic Container Thermoforming Machine

2025-12-27

In the fast-paced world of industrial packaging, efficiency and stability are the cornerstones of a successful production line. Wenzhou Rayshape Machinery Co., Ltd., a premier subsidiary of the Elemotion Group, stands at the forefront of this industry. We specialize in the development of the high-end Plastic Container Thermoforming Machine, a solution meticulously engineered to meet the global demand for high-volume, low-consumption production.

A Leap Forward in Manufacturing Technology

The Plastic Container Making Machine provided by Rayshape represents a significant leap forward in manufacturing technology. Often recognized as a Multi-station Thermoforming Machine, this equipment is developed specifically to address modern challenges: reducing labor costs while ensuring a stable and reliable output. Our highly automated systems are typically available in three-station and four-station configurations. The four-station model is particularly favored for its integrated punching station, which drastically enhances efficiency by combining forming, punching, cutting, and stacking into one seamless process.

Versatility and Capacity

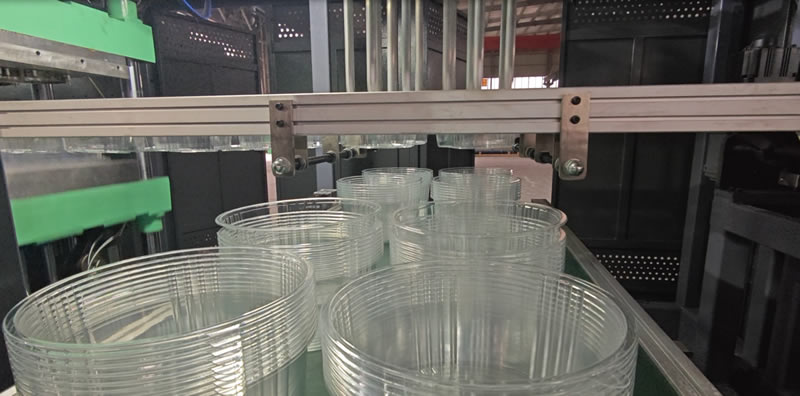

Whether you are looking for a Fruit box making machine, a Cup Making Machine, or a Bowl Making Machine, Rayshape’s equipment offers unparalleled versatility. Our machines are essential for manufacturing a wide range of disposable items, including egg trays, plastic meal boxes, and cup lids. To accommodate different production scales, we offer three standard versatile forming plate sizes:

650 * 450 mm
730 * 610 mm
730 * 800 mm

The capacity of our Fully Automatic Thermoforming Machine is directly correlated to these plate sizes; larger plates allow for more mold cavities, leading to higher overall production output and better ROI for our clients.

Material Flexibility and High-Speed Performance

A hallmark of Rayshape’s Plastic Thermoforming Machine is its impressive material flexibility. Our equipment is compatible with PP, PET, PS, A-PET, HIPS, and PLA. When running PET sheets, our machines can reach a maximum speed of 45 molds per minute, while PP sheets typically run up to 30 molds per minute. This high-speed performance is maintained by a future-oriented control system that includes a unique parameter save function. Once a mold is optimized, its settings are permanently saved, allowing for "one-click" production starts in the future.

About Rayshape Machinery

Located in Pingyang County, Wenzhou, Rayshape Machinery integrates R&D, production, and after-sales service. Following Elemotion’s spirit of diligence, we offer a complete production ecosystem, including the Plastic Sheet Extruder and Blister Machine technology. We are committed to providing energy-efficient, high-end automated equipment that helps our partners lead the way in the plastic packaging industry.

Specifications Of Thermoforming Machines

Sheet Materials	PP/PS/PET/PLA/PE	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-1.5mm	Weight	17500kg
Forming Area	730*800mm	Total Installed Power	200kw
Width Of Sheet	400-800mm	Heating Power	140kw
Upper Forming Depth	100mm	Feeding Motor	4.4kw
Bottom Forming Depth	120mm	Control Forming Plug Motor Power	4.4kw
Max Speed	48 moulds/min	Stacking Motor	2.9kw
The Longest Knife	12m	Winding Waste Of Edge Sheet Motor Power	0.4kw
Dimension	1450023502700mm	Forming Motor	7.5kw*2
Forming clamping force	750kn	Cutting Motor	7.5kw1 11kw1
Punching clamping force	900kn	Punching Motor	7.5kw1 11kw1

Advantages Of Plastic Thermoforming Machines

Loading sheet part

Load automatically, lower human resource cost.

Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.

Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.

Max undertake roll of sheet

Weight:600kg, Diameter 800mm.

Feeding sheet part

Automatic feeding reduces human resource costs.

Actively transport the sheet and reduce the load on the conveying servo motor.

Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.

Human-machine interface

Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.

Heater

1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.

2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

Molding station

1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.

2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.

Molding mold

The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.

There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.

Guide head structure

The workstation is supported by four columns (45# steel, hard chrome plated).

The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.

A five-point-connecting-rod structure

This structure design provides more stable operation and faster speed.

Mold change structure

The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.

Servo motor

The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

Servo-controlled conveyor belt

Set conveyor belt parameters directly on the operation screen.

Freely adjust and control conveying length and speed.

Rewinding waste of edge sheet

Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.

This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
