INTRODUCTION

Egg Tray Automated Production Solutions: Derived from advanced Plastic Thermoforming Machine technology, the Egg Tray Making Machine is a specialized, high-speed equipment designed specifically for the production of plastic egg trays, utilizing internationally advanced plastic sheet forming technology to deliver efficient and reliable protective packaging solutions. This specialized equipment is a highly integrated system combining mechanical, pneumatic, and electrical design, automating the entire egg tray production cycle and reducing labor costs.
The Egg Tray Making Machine, a reliable variant of the Plastic Thermoforming Machine, boasts strong versatility and high output, suitable for processing a wide range of materials for egg packaging, including A-PET, R-PET, BOPS, HIPS, PP, PLA, PVC, and various barrier materials. It is specially optimized for high transparency and high stretch materials, ensuring the production of egg trays with excellent clarity, rigidity, and durability. Leveraging Plastic Thermoforming Machine technology, it can also produce other thermoformed products like fruit boxes, flower pots, and seedling trays, maximizing its utility.

Unlike standard one-station thermoforming equipment, this high-speed Egg Tray Making Machine leverages advanced Plastic Thermoforming Machine technology to produce specialized egg packaging products that are otherwise unachievable. This includes degradable PLA plastic egg trays, egg containers with integrated holes, and body-and-cover connected egg trays, all of which offer superior protection for eggs. Its high-speed operation and stable performance ensure large-volume production while maintaining consistent product quality, making it an ideal choice for large-scale egg packaging enterprises.

MACHINE STRUCTURE

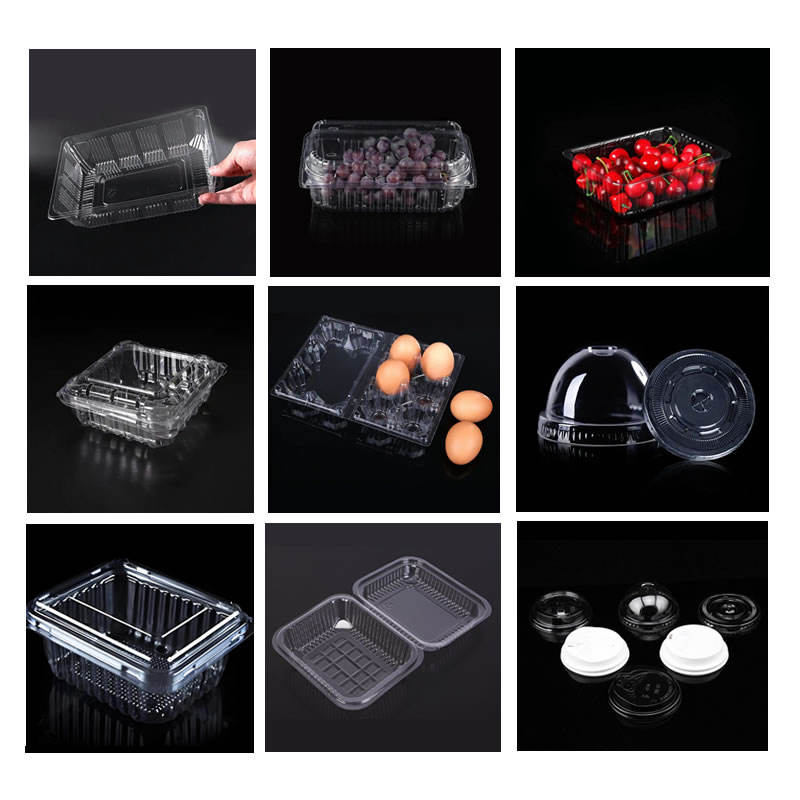

PRODUCTS RANGE

FEATURES AND ADVANTAGES

1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.

2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).

3. Easy-to-operate human-machine interface, and has the function of remote connection.

4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.

5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.

6. The upper and lower electric heating furnaces are used for four-stage heating and protection to reduce the impact of air convection on temperature, so that the product molding is stable, from 0-400 degrees in just 3 minutes, improving production efficiency. The electric heating furnace can automatically remove the device.

7. A new real-time distributed digital dynamic hot forming temperature control system is used to control the temperature of the tile at a single point, and it has automatic compensation control, with an accuracy of ±1℃. Energy saving of about 15% and extended furnace plate service life.

8. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.

9. The mold opening and closing of the forming, punching and cutting stations are controlled by servo motors, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.

10. The unique vertical stacking concept ensures continuous stacking of products.

11. Automatic counting of finished product output, with production data memory function, can store 90 sets of operating data.

12. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.

13. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.

SPECIFICAITON

Model 450/650
 730/610 730/810
Sheet thickness
 0.2-1.5mm
 0.2-1.5mm
 0.2-1.5mm
Applicable materials
 PP PET PVC PS PLA
 PP PET PVC PS PLA
 PP PET PVC PS PLA
Maximum molding area
 450x630mm
 730x610mm 730X810
Sheet width
 350-700mm
 400-800mm
 400-800mm
Maximum forming depth of upper die
 100mm 100mm
 100mm
Maximum forming depth of lower die
 130mm 130mm
 130mm
Maximum speed
 40/min
 40/min
 40/min
Heating power
 78KW
 125KW
 156KW
Main motor power
 4.4kw x 4
4.4kw x 6

 5.5kw x 4
5.5kw x 6 		7.5kw x 4
7.5kw x 6
Feeding motor power
 3kw
 4.4kw 4.4kw
Stretching motor power
 3kw 4.4kw 4.4KW
Stacking power
 2.3kw 2.3kw 2.3kw
Winding motor power
 0.55kw
 0.55kw
 0.55kw
Air consumption
 2.5m²/min
0.5-0.8 bar
 3.5m²/min
0.5-0.8 bar 		4m²/min
0.5-0.8 bar
Total power
 115kw

 160kw 198KW
Weight
 8.5T 13T 15T
Overall machine size
 8x2.25x2.7m 11mx2.35mx2.7 13.5mx2.35x2.7m

PARTNER BARANDS

Brand 1
Brand 2
Brand 3
Brand 4
Brand 5
Brand 1
Brand 2
Brand 3
Brand 4
Brand 5

ESSENTIAL COMPONENT

Loading sheet part

Loading sheet part

Load automatically, lower human resource cost.

Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.

Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.

Max undertake roll of sheet

Weight:600kg, Diameter 800mm.

Feeding sheet part

Feeding sheet part

Automatic feeding reduces human resource costs.

Actively transport the sheet and reduce the load on the conveying servo motor.

Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.

Human-machine interface

Human-machine interface

Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.

Heater

Heater

1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.

2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

Molding station

Molding station

1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.

2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.

Molding mold

Molding mold

The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.

There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.

Guide head structure

Guide head structure

The workstation is supported by four columns (45# steel, hard chrome plated).

The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.

A five-point-connecting-rod structure

A five-point-connecting-rod structure

This structure design provides more stable operation and faster speed.

Mold change structure

Mold change structure

The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.

Servo motor

Servo motor

The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

Servo-controlled conveyor belt

Servo-controlled conveyor belt

Set conveyor belt parameters directly on the operation screen.

Freely adjust and control conveying length and speed.

Rewinding waste of edge sheet

Rewinding waste of edge sheet

Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.

This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
