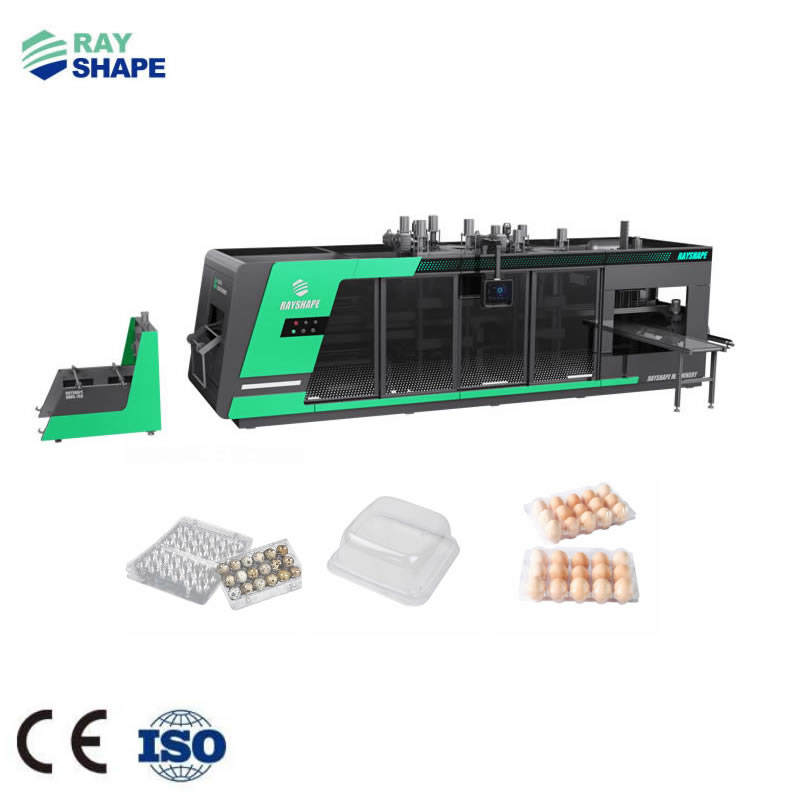

Industrial Plastic Thermoforming Machine for food-grade plastic egg trays

▶

Industrial Plastic Thermoforming Machine for food-grade plastic egg trays

Model：RS-730-610-3

Contact Details

WhatsApp： 8615355870907

Email： zhu@cnrayshape.com

PDF Download Enquire Now

INTRODUCTION

Egg Tray Automated Production Solutions. As the protective packaging industry evolves, manufacturers demand more advanced, reliable equipment for fragile products like eggs—and the Rayshape Egg Tray Making Machine, a specialized Plastic Thermoforming Machine, is at the forefront of this evolution. As a multi-station Plastic Thermoforming Machine specifically configured for egg tray production, it integrates internationally advanced plastic sheet forming technology to deliver performance that surpasses traditional Plastic Thermoforming Machines.

The Rayshape Egg Tray Thermoforming Machine incorporates a range of advanced features that set it apart from conventional Plastic Thermoforming Machines. Its multi-station design and integrated production cycle eliminate manual intervention, reducing human error and boosting efficiency. The precise heating and forming system provides strict control over cavity dimensions and wall thickness, ensuring every egg tray has consistent shock resistance and durability—critical for protecting fragile eggs during storage and transportation.

This advanced Egg Tray Making Machine, a premium Plastic Thermoforming Machine variant, is also designed for maximum convenience and adaptability. It can process a wide spectrum of materials, including A-PET, R-PET, BOPS, HIPS, PP, PLA, PVC, and various barrier materials, making it suitable for diverse egg tray designs and market needs. The intuitive control system allows operators to easily adjust parameters, monitor production status, and switch between different egg tray designs or materials with minimal downtime.

In addition to its advanced performance, the Rayshape Egg Tray Thermoforming Machine prioritizes durability and low maintenance. Built with high-quality components, it is designed for long-term continuous operation, ensuring minimal downtime and reduced maintenance costs—critical for high-volume manufacturing. As a specialized variant of the Plastic Thermoforming Machine, it is engineered to produce complex forms like body-and-cover connected egg trays and PLA products, which standard Plastic Thermoforming Machines cannot achieve. For manufacturers aiming to lead the market, this advanced Egg Tray Making Machine is the ultimate choice.

MACHINE STRUCTURE

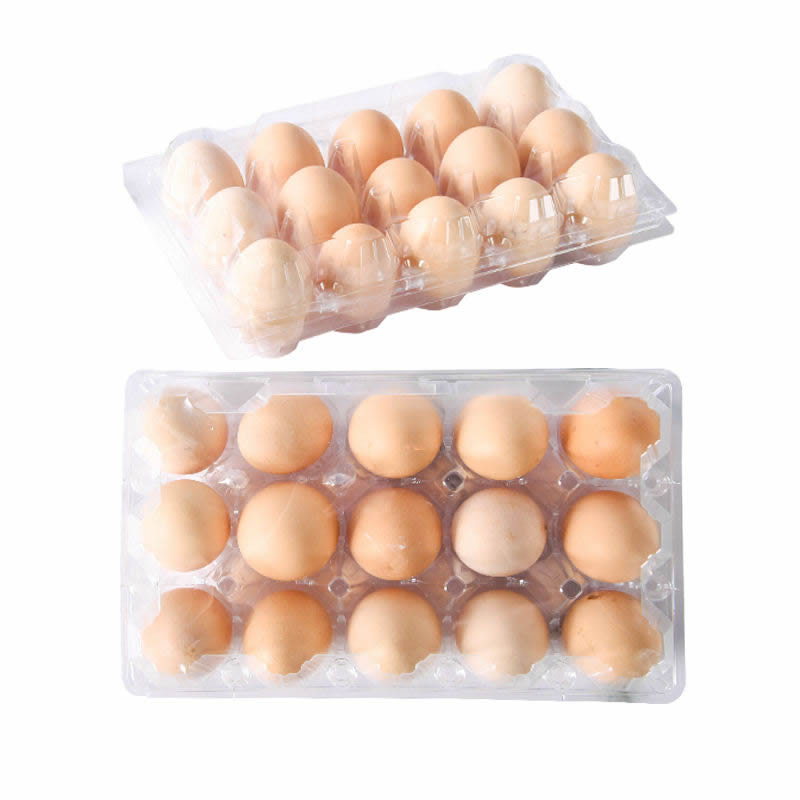

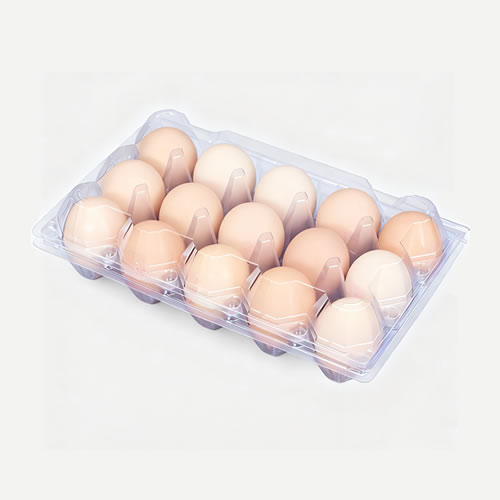

PRODUCTS RANGE

FEATURES AND ADVANTAGES

1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.

2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).

3. Easy-to-operate human-machine interface, and has the function of remote connection.

4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.

5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.

6. The upper and lower electric heating furnaces are used for four-stage heating and protection to reduce the impact of air convection on temperature, so that the product molding is stable, from 0-400 degrees in just 3 minutes, improving production efficiency. The electric heating furnace can automatically remove the device.

7. A new real-time distributed digital dynamic hot forming temperature control system is used to control the temperature of the tile at a single point, and it has automatic compensation control, with an accuracy of ±1℃. Energy saving of about 15% and extended furnace plate service life.

8. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.

9. The mold opening and closing of the forming, punching and cutting stations are controlled by servo motors, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.

10. The unique vertical stacking concept ensures continuous stacking of products.

11. Automatic counting of finished product output, with production data memory function, can store 90 sets of operating data.

12. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.

13. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.

SPECIFICAITON

Model	450/650	730/610	730/810
Sheet thickness	0.2-1.5mm	0.2-1.5mm	0.2-1.5mm
Applicable materials	PP PET PVC PS PLA	PP PET PVC PS PLA	PP PET PVC PS PLA
Maximum molding area	450x630mm	730x610mm	730X810
Sheet width	350-700mm	400-800mm	400-800mm
Maximum forming depth of upper die	100mm	100mm	100mm
Maximum forming depth of lower die	130mm	130mm	130mm
Maximum speed	40/min	40/min	40/min
Heating power	78KW	125KW	156KW
Main motor power	4.4kw x 4 4.4kw x 6	5.5kw x 4 5.5kw x 6	7.5kw x 4 7.5kw x 6
Feeding motor power	3kw	4.4kw	4.4kw
Stretching motor power	3kw	4.4kw	4.4KW
Stacking power	2.3kw	2.3kw	2.3kw
Winding motor power	0.55kw	0.55kw	0.55kw
Air consumption	2.5m²/min 0.5-0.8 bar	3.5m²/min 0.5-0.8 bar	4m²/min 0.5-0.8 bar
Total power	115kw	160kw	198KW
Weight	8.5T	13T	15T
Overall machine size	8x2.25x2.7m	11mx2.35mx2.7	13.5mx2.35x2.7m

PARTNER BARANDS

ESSENTIAL COMPONENT

Loading sheet part

Load automatically, lower human resource cost.

Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.

Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.

Max undertake roll of sheet

Weight:600kg, Diameter 800mm.

Feeding sheet part

Automatic feeding reduces human resource costs.

Actively transport the sheet and reduce the load on the conveying servo motor.

Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.

Human-machine interface

Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.

Heater

1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.

2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

Molding station

1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.

2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.

Molding mold

The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.

There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.

Guide head structure

The workstation is supported by four columns (45# steel, hard chrome plated).

The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.

A five-point-connecting-rod structure

This structure design provides more stable operation and faster speed.

Mold change structure

The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.

Servo motor

The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

Servo-controlled conveyor belt

Set conveyor belt parameters directly on the operation screen.

Freely adjust and control conveying length and speed.

Rewinding waste of edge sheet

Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.

This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
