INTRODUCTION

Electronic Plastic Packaging Automated Production Solutions. The Electronic Plastic Packaging Thermoforming Machine is more than just a specialized electronic packaging producer—it is a versatile Plastic Thermoforming Machine that combines electronic packaging-specific precision with the flexibility to handle a range of plastic packaging products. Built on the proven performance of multi-station Plastic Thermoforming Machine technology, this equipment is designed to meet the needs of small to large-scale enterprises, offering high-efficiency electronic plastic packaging production alongside the ability to manufacture related plastic products.

As a specialized variant of the Plastic Thermoforming Machine, the Electronic Plastic Packaging Thermoforming Machine automates every critical production stage: material loading, precise sheet feeding, optimal heating, stable forming, and integrated punching. Its multi-station configurations (three-station and four-station) adapt to diverse production needs—with the four-station model ideal for high-volume electronic packaging production and the three-station model suited for small-batch, customized electronic packaging orders. Unlike generic Plastic Thermoforming Machines, it is optimized for the unique contours of electronic component trays and enclosures, ensuring consistent quality and anti-static performance across every batch.

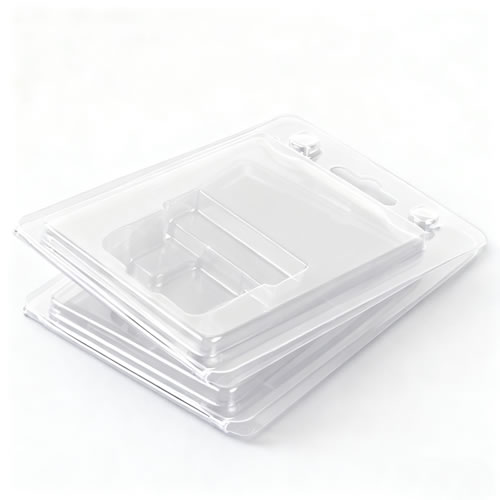

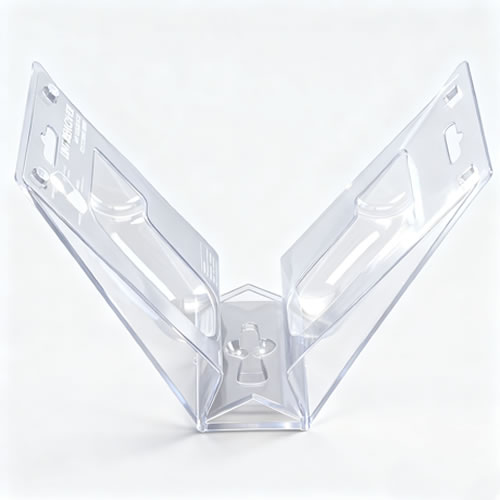

One of the key advantages of this Electronic Plastic Packaging Thermoforming Machine over standard Plastic Thermoforming Machines is its exceptional material and application versatility. It processes PET, PS (anti-static grade), and PP materials, enabling the production of electronic component trays, mobile phone packaging boxes, anti-static covers, blister packs for electronics, and even general plastic enclosures. When processing clear PET for electronic component packaging, it reaches 45 molds per minute; for PP electronic enclosures, it maintains 30 molds per minute, balancing speed and precision. This versatility eliminates the need for multiple Plastic Thermoforming Machines, reducing equipment investment costs for manufacturers.

Quality control is paramount for electronic plastic packaging, and the Electronic Plastic Packaging Thermoforming Machine incorporates advanced features to ensure perfection. Adapted from premium Plastic Thermoforming Machine designs, it includes a high-precision temperature control system, anti-static monitoring, and pressure regulating device, preventing defects like burrs, warping, or static buildup. The parameter save function simplifies mold switching, while the durable construction ensures long-term, stable operation. Whether producing high-precision electronic component trays or custom mobile phone packaging boxes, this versatile Plastic Thermoforming Machine delivers reliability and efficiency.

MACHINE STRUCTURE

PRODUCTS RANGE

FEATURES AND ADVANTAGES

1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.

2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).

3. Easy-to-operate human-machine interface, and has the function of remote connection.

4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.

5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.

6. The upper and lower electric heating furnaces are used for four-stage heating and protection to reduce the impact of air convection on temperature, so that the product molding is stable, from 0-400 degrees in just 3 minutes, improving production efficiency. The electric heating furnace can automatically remove the device.

7. A new real-time distributed digital dynamic hot forming temperature control system is used to control the temperature of the tile at a single point, and it has automatic compensation control, with an accuracy of ±1℃. Energy saving of about 15% and extended furnace plate service life.

8. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.

9. The mold opening and closing of the forming, punching and cutting stations are controlled by servo motors, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.

10. The unique vertical stacking concept ensures continuous stacking of products.

11. Automatic counting of finished product output, with production data memory function, can store 90 sets of operating data.

12. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.

13. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.

SPECIFICAITON

Sheet Materials	PP/PS/PET/PLA/PE/CPET	Air Consumption	3m³/min 0.5-0.8bar
Sheet Thickness	0.2-1.5mm	Weight	11000kg
Forming Area	650*450mm	Total Installed Power	125Kw
Width Of Sheet	370-700mm	Heating Power	90kw
Upper Forming Depth	100mm	Feeding Motor	3kw
Bottom Forming Depth	130mm	Control Forming Plug Motor Power	3kw
Max Speed	45moulds/min	Stacking Motor	1.8kw
The Longest Knife	8m	Winding Waste Of Edge Sheet Motor Power	0.4kw
Dimension	1123023002700mm	Forming Motor	4.4kw*2
Forming clamping force	600kn	Cutting Motor	4.4kw*2
Punching clamping force	600kn	Punching Motor	4.4kw*2
