The Freshness Advantage: Rayshape Fruit Box Making Machine
2025-09-01
In the competitive fresh produce industry, the quality of packaging is as crucial as the fruit inside. It must protect, present, and preserve. This is where a specialized fruit box making machine becomes indispensable. At Wenzhou Rayshape Machinery Co., Ltd., we have perfected this technology, offering an advanced solution that ensures freshness, enhances efficiency, and elevates product appeal.
Our fruit box making machine is a highly specialized piece of plastic thermoforming machine designed for the high-volume production of fruit containers. It operates as a fully automatic thermoforming machine, integrating the entire production process from start to finish. This in-line automation minimizes labor and maximizes throughput, making it a perfect fit for modern food packaging manufacturers.
What makes our machine stand out is its precision. We utilize advanced thermoforming technology to create strong, uniform, and visually appealing fruit boxes, from clamshells to trays.The machine's precise cutting and stacking systems ensure every box is perfect, minimizing waste and guaranteeing a professional look. This level of detail is critical for maintaining product integrity and attracting consumers.
Our fruit box making machine seamlessly integrates with our wider product ecosystem. For a complete solution, it pairs perfectly with our Plastic Sheet Extruder, which provides the ideal raw material. The machine is compatible with a wide range of materials, including food-grade A-PET and sustainable R-PET and PLA, allowing manufacturers to meet both strict industry standards and eco-conscious consumer demands.
Located in the coastal city of Wenzhou, Wenzhou Rayshape Machinery Co., Ltd. is a subsidiary of the Elemotion Group. We were officially renamed in 2025, now wholly owned by Wenzhou Elemotion Holdings. We pride ourselves on a seasoned R&D team and a solid financial foundation, which enable us to develop high-end, energy-efficient equipment. Our commitment to innovation is reflected in every machine we build, whether it's a Blister Machine, a Cup Making Machine, or our Fruit box making machine. We carry forward Elemotion's spirit of diligence, continuously striving for excellence to provide our clients with the best manufacturing solutions on the market.
Specifications Of Thermoforming Machines
Sheet Materials
PP/PS/PET/PLA/PE
Air Consumption
4m³/min
0.5-0.8bar
Sheet Thickness
0.2-1.5mm
Weight
14500kg
Forming Area
730*800mm
Total Installed Power
185kw
Width Of Sheet
400-800mm
Heating Power
140kw
Upper Forming Depth
100mm
Feeding Motor
4.4kw
Bottom Forming Depth
130mm
Control Forming Plug Motor Power
4.4kw
Max Speed
48 moulds/min
Stacking Motor
2.9kw
The Longest Knife
12m
Winding Waste Of Edge Sheet Motor Power
0.4kw
Dimension
11500*2350*2700mm
Forming Motor
7.5kw*2
Forming clamping force
750kn
Cutting Motor
7.5kw*1
11kw*1
Punching clamping force
900kn
Advantages Of Plastic Thermoforming Machines

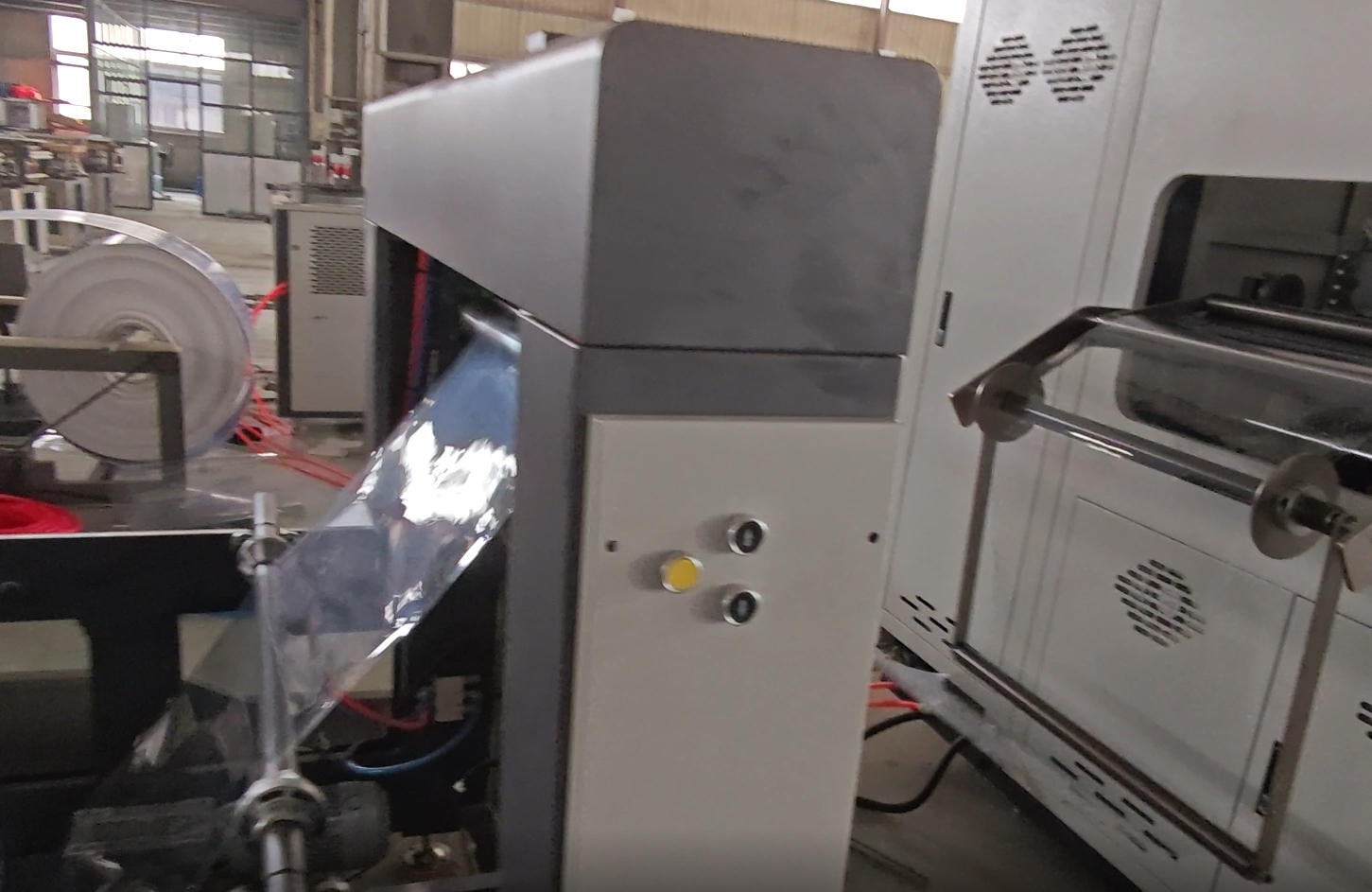

Loading sheet part
Load automatically, lower human resource cost.
Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.
Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the productionefficiency.
Max undertake roll of sheet
Weight:600kg, Diameter 800mm.
Feeding sheet part
Automatic feeding reduces human resource costs.
Actively transport the sheet and reduce the load on the conveying servo motor.
Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.
Human-machine interface
Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.
Heater
1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.
2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

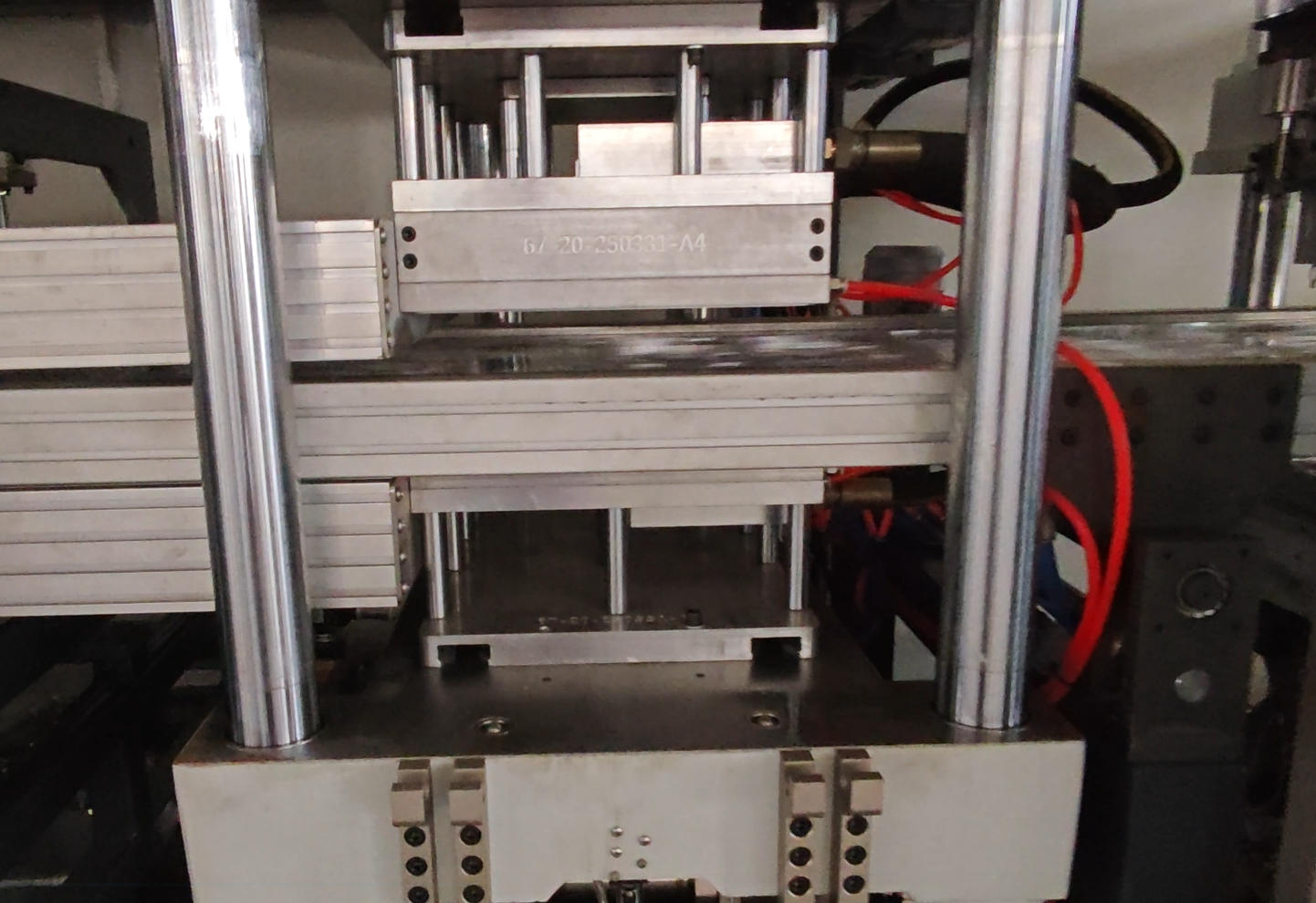

Molding station
1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.
2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.
Molding mold
The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.
There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.
Guide head structure
The workstation is supported by four columns (45# steel, hard chrome plated).
The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.
A five-point-connecting-rod structure
This structure design provides more stable operation and faster speed.
Mold change structure
The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.
Servo motor
The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

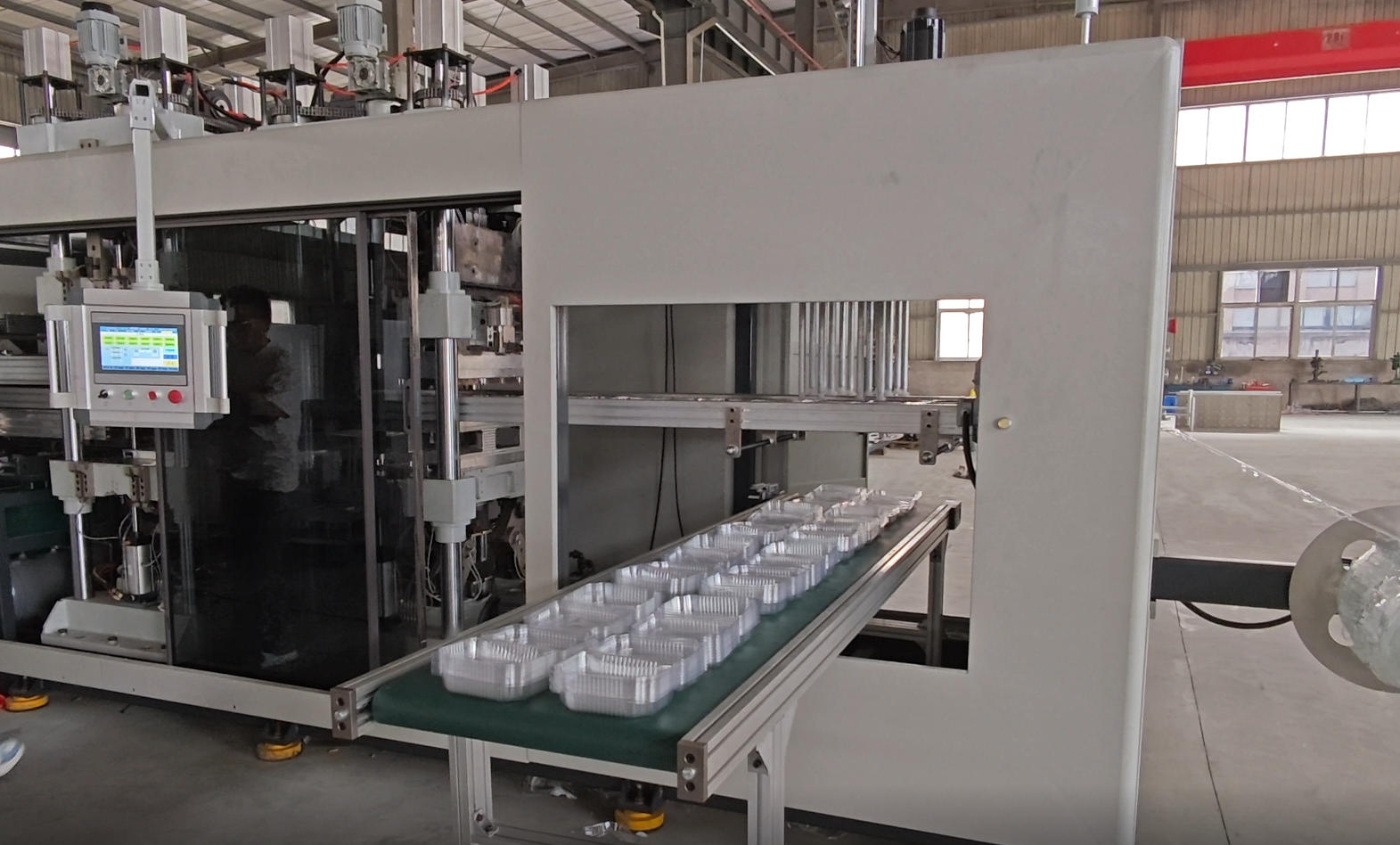

Servo-controlled conveyor belt
Set conveyor belt parameters directly on the operation screen.
Freely adjust and control conveying length and speed.
Rewinding waste of edge sheet
Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.
This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
