Energy-Saving Plastic Seedling Tray Making Machine for Mass Production

▶

Energy-Saving Plastic Seedling Tray Making Machine for Mass Production

Model：RS-730-800-3

Contact Details

WhatsApp： 8615355870907

Email： zhu@cnrayshape.com

PDF Download Enquire Now

INTRODUCTION

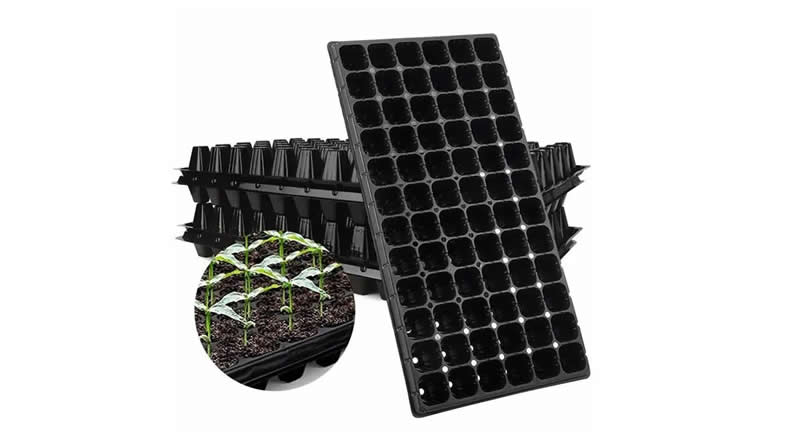

The Seedling Tray Making Machine stands as a cornerstone solution for modern horticulture and agriculture, engineered as a specialized variant of our industry-leading multi-station Plastic Thermoforming Machine. Designed to address the core demands of large-scale plant propagation—high output, cost efficiency, and consistent quality—this equipment redefines automated production for seedling containers. By integrating advanced thermoforming technology into a fully automated system, it drastically reduces manual labor input while ensuring the stable, uniform output required for commercial nurseries, greenhouses, and agricultural cooperatives.
Built on the modular design of our Plastic Thermoforming Machine, the seedling tray-specific model is available in three-station and four-station configurations to match diverse production scales. The four-station version, equipped with a high-precision integrated punching station, delivers exceptional production efficiency and edge quality, eliminating the need for secondary trimming processes. This makes it ideal for mass manufacturing multi-cavity seedling trays, disposable plant pots, and custom horticultural containers—core products for the agricultural and horticultural supply chain.
Boasting remarkable material adaptability and speed performance, the machine processes PS, PP, and PET with seamless efficiency. For transparent PET trays, widely used for seedling cultivation with clear visibility, the maximum operating speed reaches 45 molds per minute. PP and PS, the most cost-effective materials for standard seedling trays, achieve a top speed of 30 molds per minute. A key operational note: production speed is adjusted based on product specifications—deep-draw plant pots or thick-sheet trays require extended forming times, a feature the machine’s intelligent system accommodates without compromising precision.
Powered by a next-generation control system and a forward-thinking design, the Seedling Tray Making Machine elevates operational reliability and quality control across every production cycle. Recognizing that seedling trays of varying sizes demand unique, fine-tuned parameters, we have embedded a dedicated parameter save function in the machine’s software. Once engineering teams optimize a specific mold for a given seedling size, the ideal production settings are permanently stored. When reusing the mold for subsequent runs, operators simply press “start,” and the machine automatically recalls and executes the validated parameters, enabling quick, error-free production resumption. For agricultural and horticultural businesses scaling up their propagation operations, this machine delivers unmatched efficiency and consistency.

MACHINE STRUCTURE

PRODUCTS RANGE

FEATURES AND ADVANTAGES

1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.

2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).

3. Easy-to-operate human-machine interface, and has the function of remote connection.

4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.

5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.

6. The upper and lower electric heating furnaces are used for four-stage heating and protection to reduce the impact of air convection on temperature, so that the product molding is stable, from 0-400 degrees in just 3 minutes, improving production efficiency. The electric heating furnace can automatically remove the device.

7. A new real-time distributed digital dynamic hot forming temperature control system is used to control the temperature of the tile at a single point, and it has automatic compensation control, with an accuracy of ±1℃. Energy saving of about 15% and extended furnace plate service life.

8. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.

9. The mold opening and closing of the forming, punching and cutting stations are controlled by servo motors, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.

10. The unique vertical stacking concept ensures continuous stacking of products.

11. Automatic counting of finished product output, with production data memory function, can store 90 sets of operating data.

12. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.

13. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.

SPECIFICAITON

Sheet Materials	PP/PS/PET/PLA/PE/CPET	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-1.5mm	Weight	14500kg
Forming Area	730*800mm	Total Installed Power	185kw
Width Of Sheet	400-800mm	Heating Power	140kw
Upper Forming Depth	100mm	Feeding Motor	4.4kw
Bottom Forming Depth	130mm	Control Forming Plug Motor Power	4.4kw
Max Speed	48 moulds/min	Stacking Motor	2.9kw
The Longest Knife	12m	Winding Waste Of Edge Sheet Motor Power	0.4kw
Dimension	1150023502700mm	Forming Motor	7.5kw*2
Forming clamping force	750kn	Cutting Motor	7.5kw1 11kw1
Punching clamping force	900kn

PARTNER BARANDS

ESSENTIAL COMPONENT

Loading sheet part

Load automatically, lower human resource cost.

Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.

Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.

Max undertake roll of sheet

Weight:600kg, Diameter 800mm.

Feeding sheet part

Automatic feeding reduces human resource costs.

Actively transport the sheet and reduce the load on the conveying servo motor.

Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.

Human-machine interface

Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.

Heater

1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.

2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

Molding station

1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.

2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.

Molding mold

The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.

There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.

Guide head structure

The workstation is supported by four columns (45# steel, hard chrome plated).

The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.

A five-point-connecting-rod structure

This structure design provides more stable operation and faster speed.

Mold change structure

The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.

Servo motor

The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

Servo-controlled conveyor belt

Set conveyor belt parameters directly on the operation screen.

Freely adjust and control conveying length and speed.

Rewinding waste of edge sheet

Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.

This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
