In the dynamic world of manufacturing, a reliable thermoforming machine is the backbone of production for countless plastic products, from consumer goods to medical supplies. While the market offers various options, the modern China thermoforming machine has emerged as a leader in innovation and value. At the forefront of this industry is Wenzhou Rayshape Machinery Co., Ltd., a company that has redefined what high-performance plastic thermoforming machine equipment should be.

As a subsidiary of the renowned Elemotion Group, our company integrates mechanical and software R&D, production, marketing, and after-sales service to deliver cutting-edge thermoforming equipment. Our journey began in 2021 with Elemotion’s investment in Wuhu Youhe Automation Technology Co., Ltd., and by 2025, we were officially renamed and wholly owned by Wenzhou Elemotion Holdings. This strategic growth has provided us with a solid financial foundation and a seasoned R&D team, allowing us to produce highly automated, energy-efficient machinery.

Our advanced thermoforming machine models are designed for maximum efficiency. The Automatic Thermoforming Machine simplifies production by handling everything from sheet feeding to trimming in a continuous, automated cycle. For an even greater boost in output, our Multi-station Thermoforming Machine performs heating, forming, and cooling simultaneously, drastically reducing cycle times. When considering thermoforming machine price, our equipment offers an unmatched value proposition, combining competitive cost with superior quality and performance.

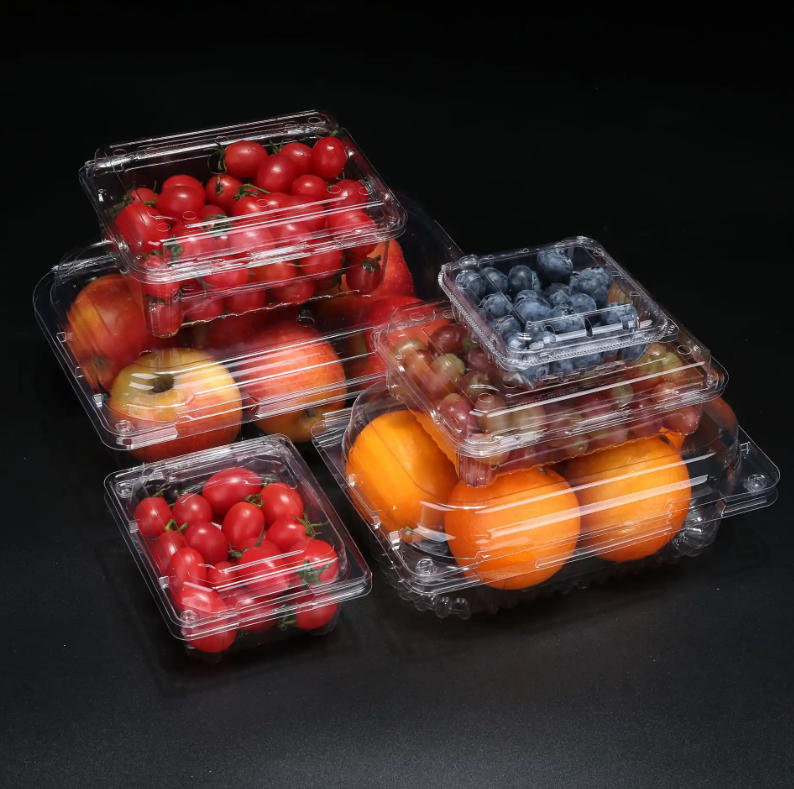

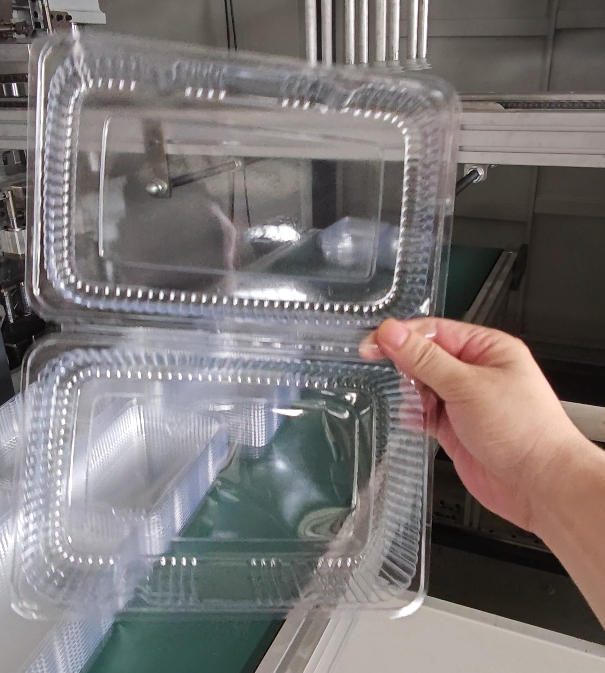

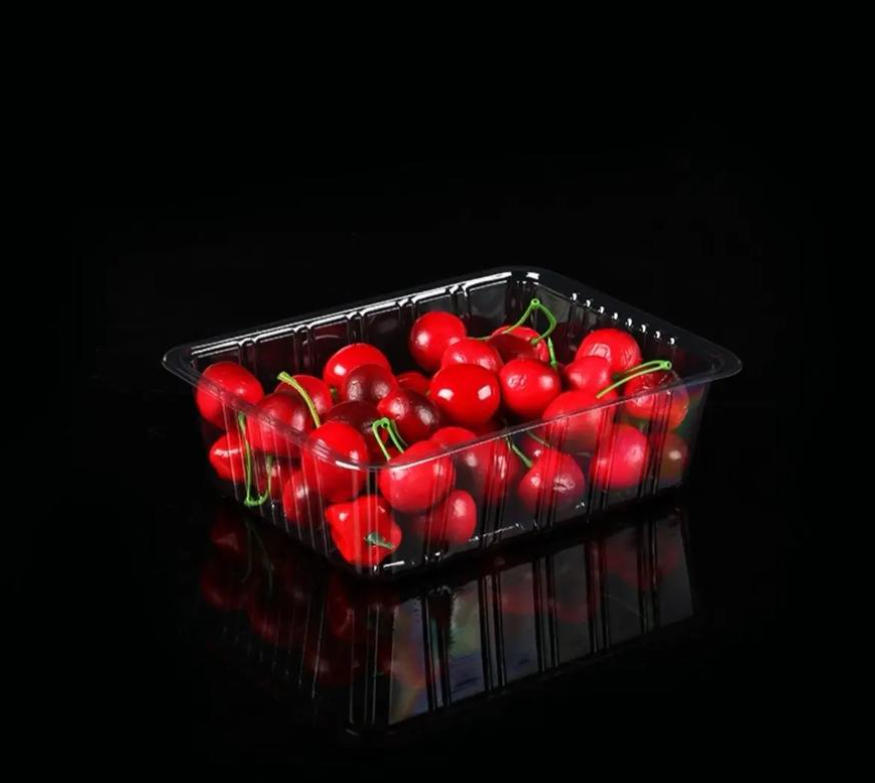

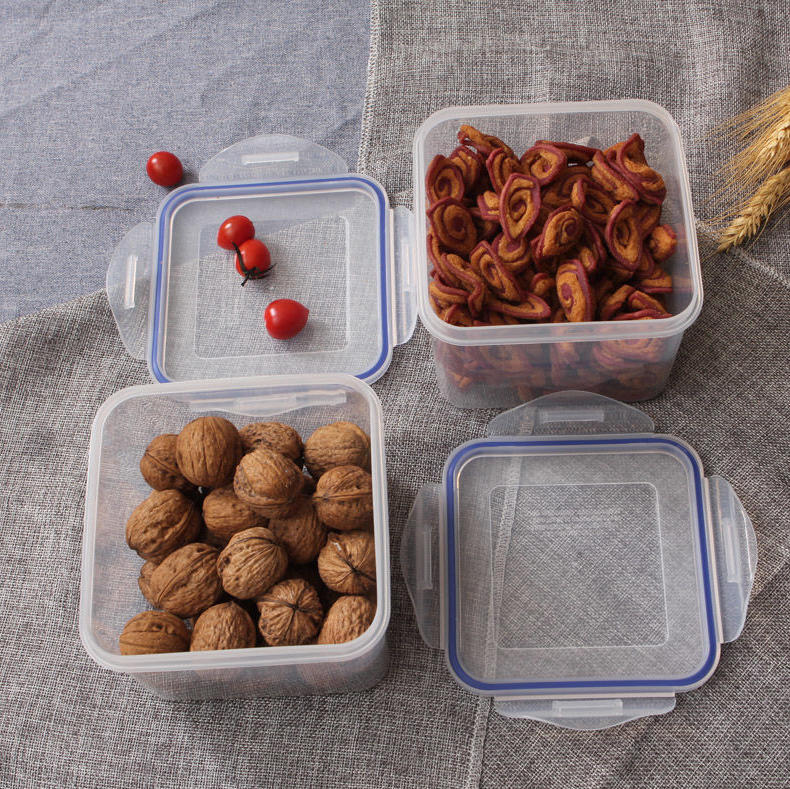

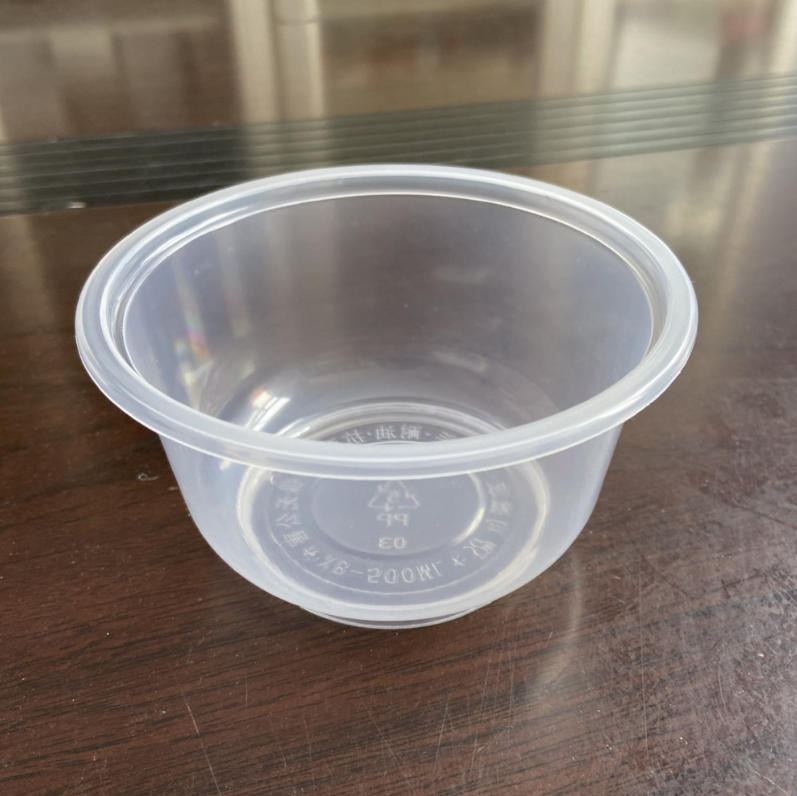

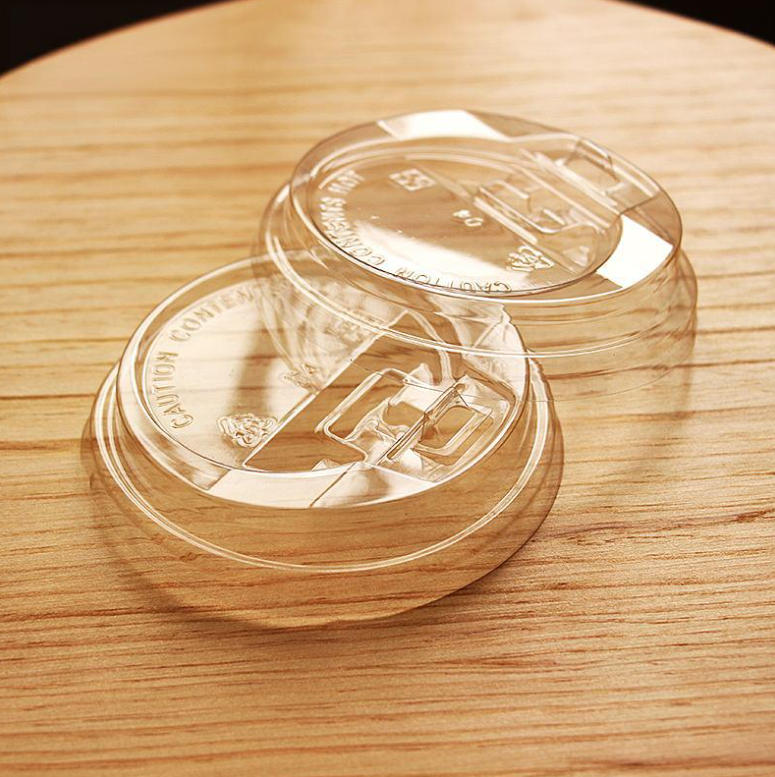

Our machines are compatible with a wide array of materials, including A-PET, R-PET, HIPS, PP, and PLA, giving clients the flexibility to produce diverse products from food containers to blister packs. Our integrated product line—including the Plastic Sheet Extruder, which provides the perfect raw material, and specialized equipment like our Cup Making Machine and Blister Machine—allows us to offer a complete, end-to-end manufacturing solution.

Located in the beautiful coastal city of Pingyang County, Wenzhou, Wenzhou Rayshape Machinery Co., Ltd. carries forward Elemotion’s spirit of diligence and continuous improvement. We are committed to shaping the future of plastic manufacturing by providing our clients with reliable, high-quality, and innovative solutions.

Specifications Of Thermoforming Machines

Sheet Materials	PP/PS/PET/PLA/PE	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-1.5mm	Weight	12500kg
Forming Area	730*610mm	Total Installed Power	174Kw
Width Of Sheet	400-800mm	Heating Power	140kw
Upper Forming Depth	100mm	Feeding Motor	4.4kw
Bottom Forming Depth	130mm	Control Forming Plug Motor Power	4.4kw
Max Speed	45moulds/min	Stacking Motor	1.8kw
The Longest Knife	10m	Winding Waste Of Edge Sheet Motor Power	0.4kw
Dimension	1150023502700mm	Forming Motor	5.5kw*2
Forming clamping force	750kn	Cutting Motor	5.5kw*2
Punching clamping force	750kn

Plastic Thermoforming Machine

Four-Station Plastic forming machine

Model：RS-750-800-4

RS-750-800-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Three-Station Plastic Thermoforming Machine

Model：RS-750-800-3

RS-750-800-3 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Four-Station Plastic Thermoforming Machine

Model：RS-750-610-4

RS-730-610-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Four-Station Plastic Thermoforming Machine

Model：RS-650-450-4

RS-650-450-4 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product tr...

Advantages Of Plastic Thermoforming Machines

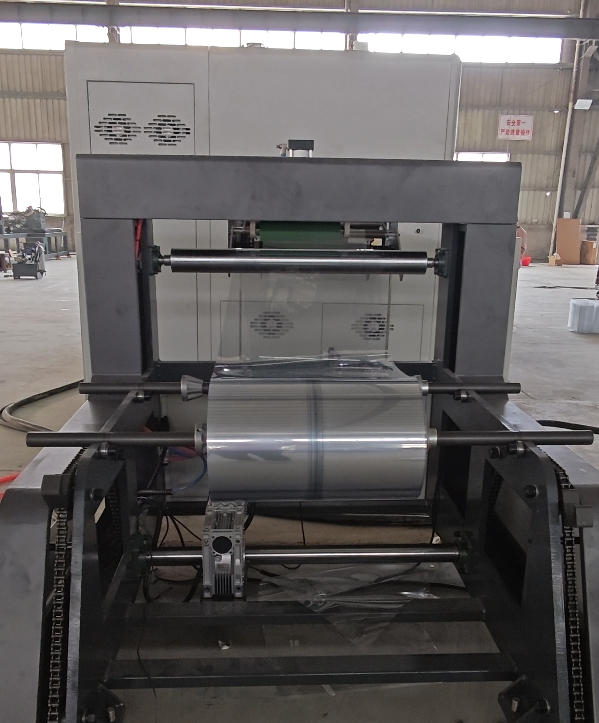

Loading sheet part

Load automatically, lower human resource cost.

Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.

Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.

Max undertake roll of sheet

Weight:600kg, Diameter 800mm.

Feeding sheet part

Automatic feeding reduces human resource costs.

Actively transport the sheet and reduce the load on the conveying servo motor.

Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.

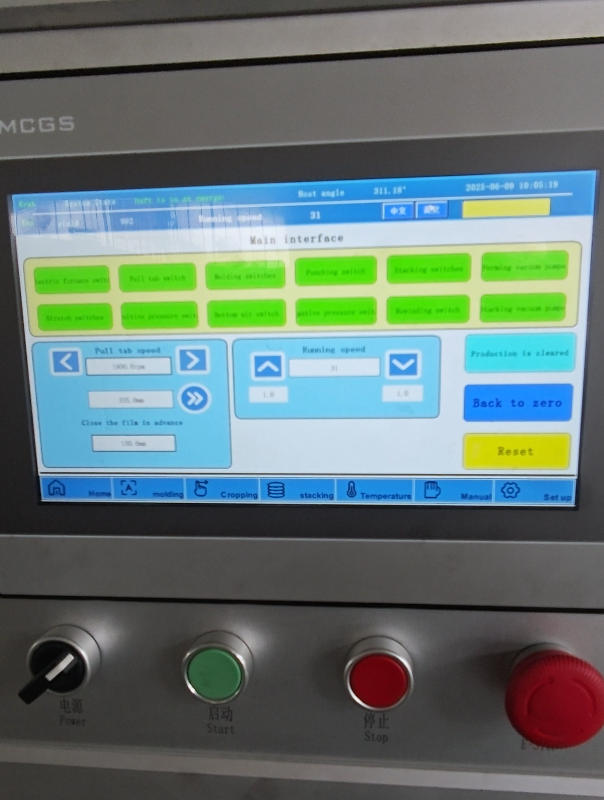

Human-machine interface

Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.

Heater

1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.

2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.

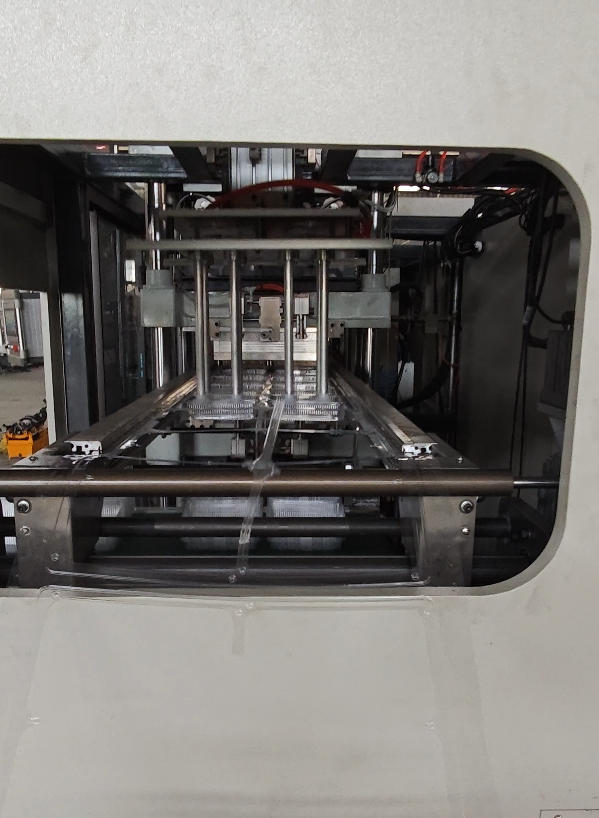

Molding station

1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.

2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.

Molding mold

The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.

There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.

Guide head structure

The workstation is supported by four columns (45# steel, hard chrome plated).

The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.

A five-point-connecting-rod structure

This structure design provides more stable operation and faster speed.

Mold change structure

The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.

Servo motor

The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.

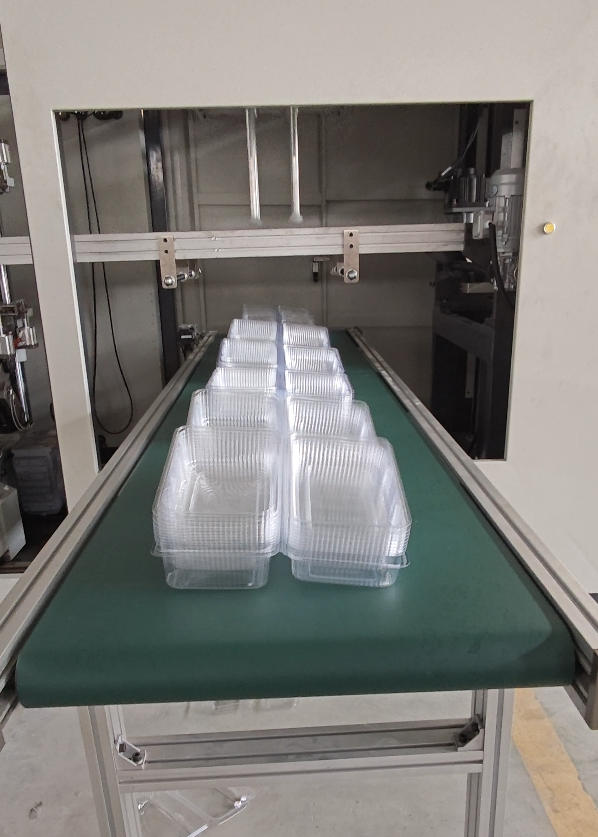

Servo-controlled conveyor belt

Set conveyor belt parameters directly on the operation screen.

Freely adjust and control conveying length and speed.

Rewinding waste of edge sheet

Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.

This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
