Custom mold Plastic Cup Making Machine for beverage plastic cups

▶

Custom mold Plastic Cup Making Machine for beverage plastic cups

Model：RSC-800-500

Contact Details

WhatsApp： 8615355870907

Email： zhu@cnrayshape.com

PDF Download Enquire Now

INTRODUCTION

In the fast-paced disposable tableware industry, efficiency, precision, and food safety are the keys to competitiveness—and the RS-800-500 Plastic Cup Making Machine, a specialized Plastic Thermoforming Machine, delivers all three. As our new generation full-servo system, it stands as the zenith of automated cup manufacturing, integrating internationally advanced plastic sheet forming technology to address the challenges of high-volume, continuous production faced by cup manufacturers worldwide.

Unlike generic Plastic Thermoforming Machines that lack specialization for cup production, the RS-800-500 is a dedicated Plastic Cup Thermoforming Machine engineered to meet the unique requirements of plastic cup manufacturing. Cups demand consistent wall thickness, smooth edges, and a secure structure—something ordinary Plastic Thermoforming Machines often struggle to achieve. Its integrated mechanical, pneumatic, and electrical design eliminates the inefficiencies of traditional Plastic Thermoforming Machines, ensuring seamless coordination between every production stage, from feeding to cutting.

The full-servo drive system, a significant upgrade over hydraulic-based Plastic Thermoforming Machines, is the core advantage of this Plastic Cup Making Machine. It provides precise control over forming pressure and speed, resulting in more stable plastic cup production, faster cycle times, and a cleaner manufacturing environment—critical for food-grade products. Additionally, the RS-800-500 retains the material flexibility of a premium Plastic Thermoforming Machine, effortlessly handling A-PET, R-PET, BOPS, HIPS, PP, PLA, PVC, and various barrier materials to produce diverse cup types.

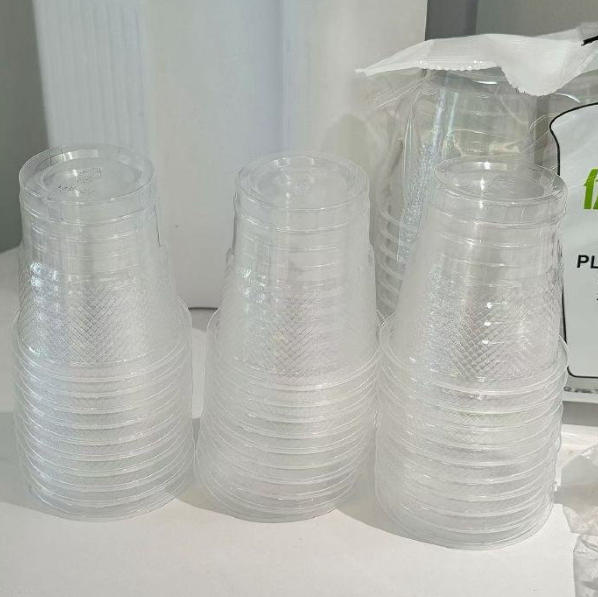

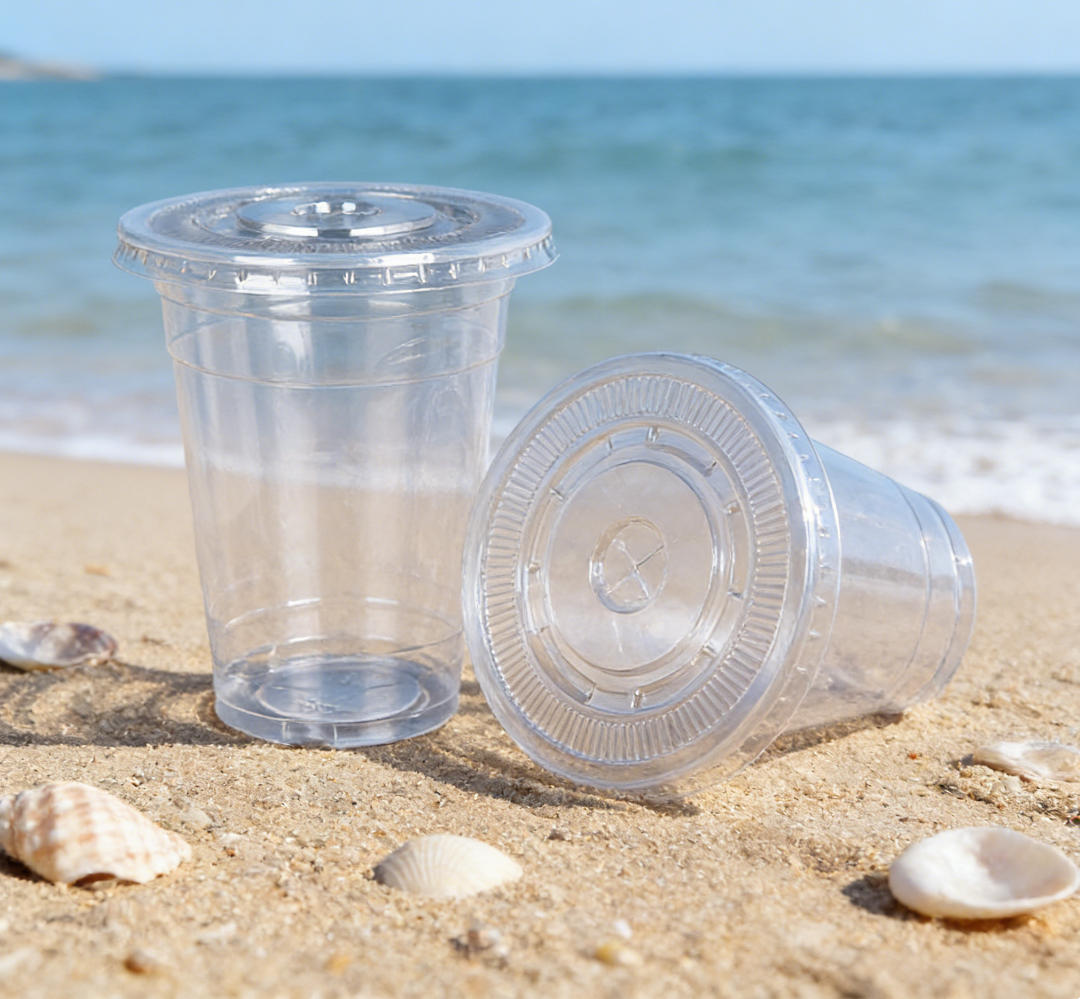

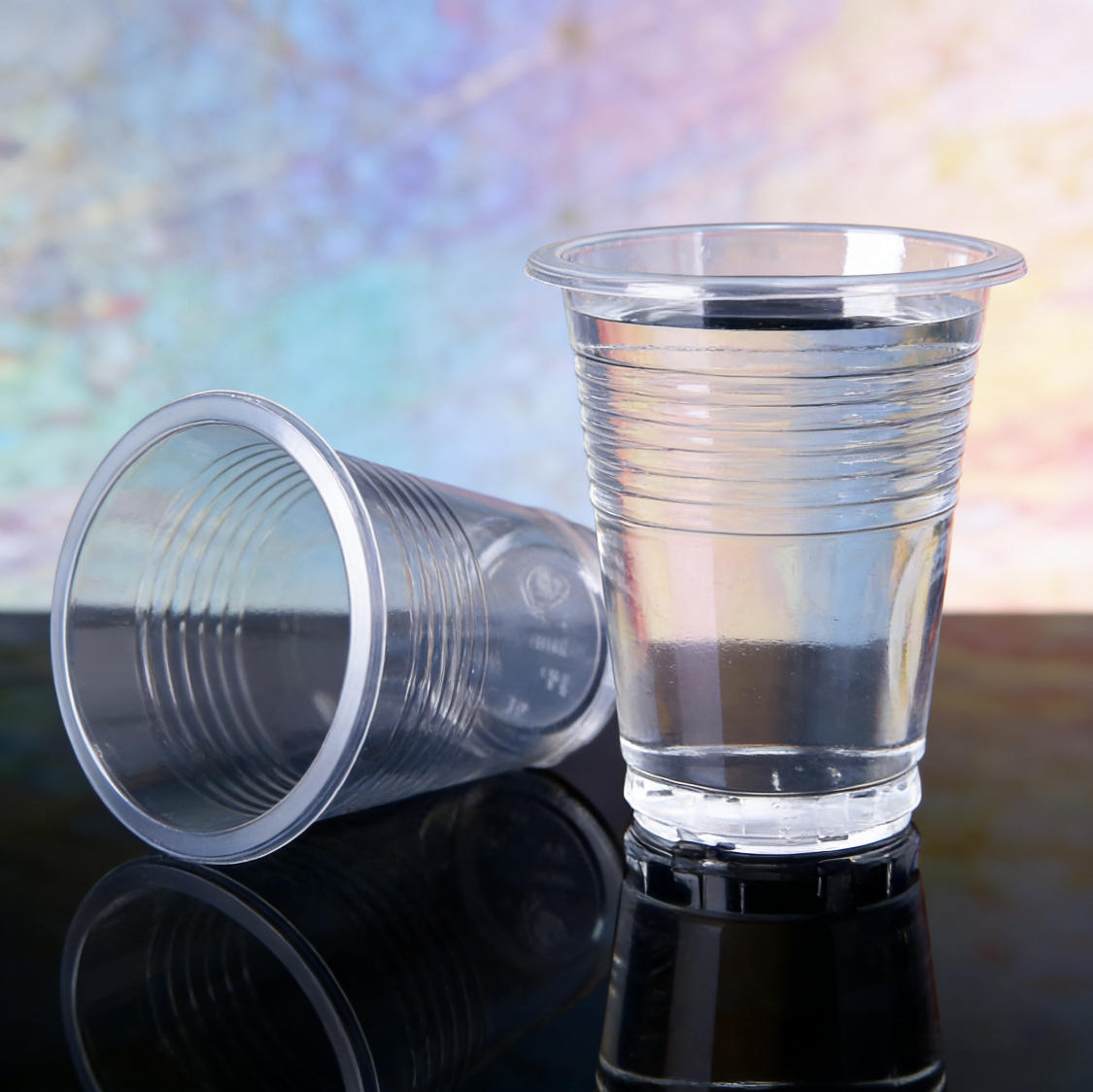

From transparent PET beverage cups to heat-resistant PP coffee cups, and from small milk cups to large water cups, this Plastic Cup Thermoforming Machine ensures consistent quality and efficiency. Its versatility also allows manufacturers to produce complementary items like bowls and boxes without investing in additional Plastic Thermoforming Machines, diversifying product lines with minimal cost. In summary, the RS-800-500 Plastic Cup Making Machine is more than just a Plastic Thermoforming Machine—it is a comprehensive solution that redefines efficiency and quality in disposable plastic cup manufacturing, helping enterprises stay ahead in a competitive market.

MACHINE STRUCTURE

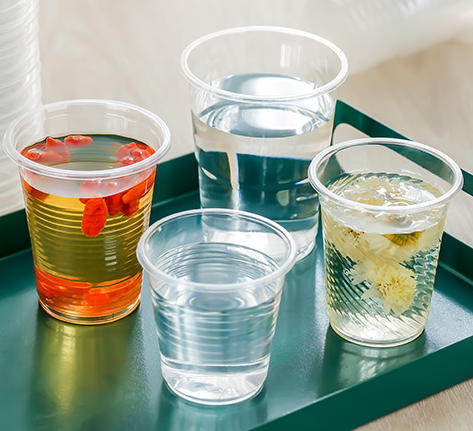

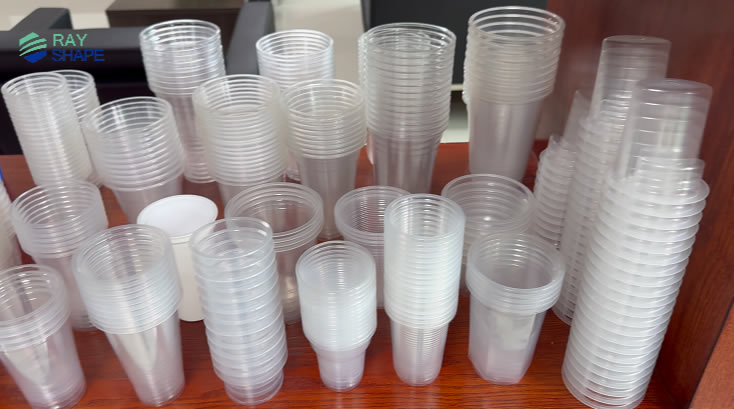

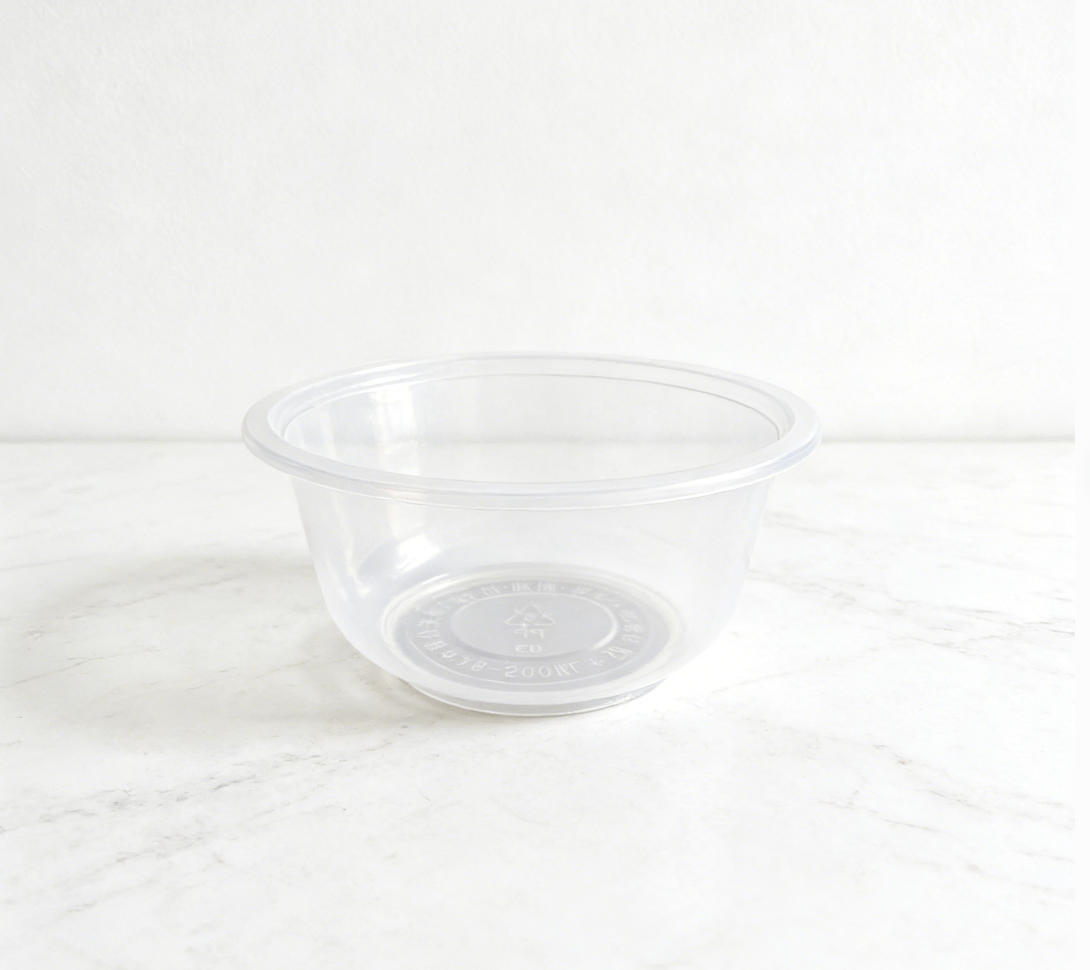

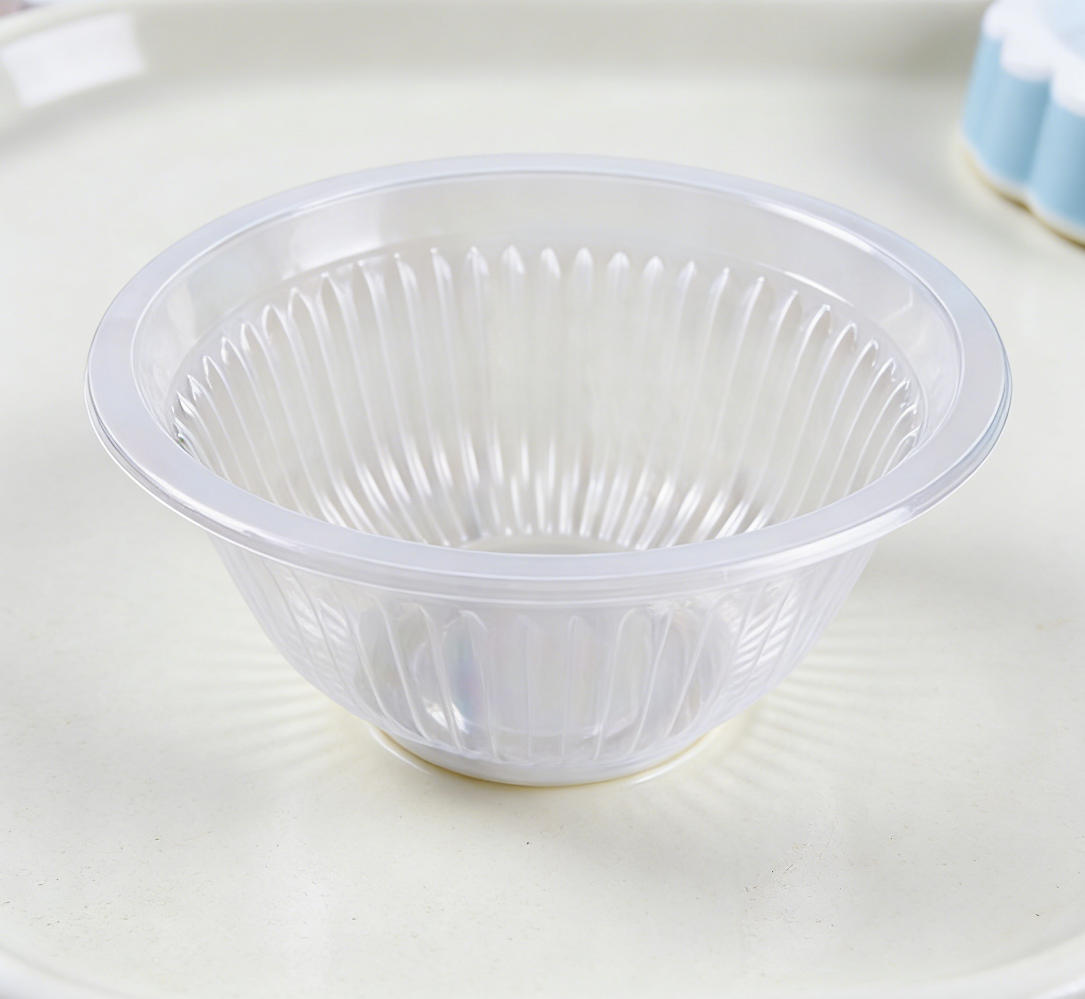

PRODUCTS RANGE

FEATURES AND ADVANTAGES

1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.

2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).

3. Easy-to-operate human-machine interface, and has the function of remote connection.

4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.

5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.

6. The upper and lower electric heating furnaces are used for 6-7 heating stages and protection to reduce the impact of air convection on temperature, ensuring stable product molding. It only takes 3 minutes to heat from 0 to 400 degrees, improving production efficiency. The electric heating furnace can be automatically removed.

7. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.

8. The mold opening and closing by servo motor, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.

9. Positive pressure forming ensures uniform thickness, full shapes, and sharp corners.

10. The chain frame features a fast cooling and wear-resistant design.

11. The cup blowing system offers adjustable blowing angle and air volume.

12. A servo motor chain drive automatically extends the track to prevent sheet sagging, ensuring stable, precise, and smooth sheet feeding.

13. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.

14. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.

SPECIFICAITON

Sheet Materials	PP/PS/PET/PLA/PE/CPET	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-2.5mm	Weight	7500kg
Forming Area	780*480mm	Total Installed Power	150KW
Width Of Sheet	400-850mm	Heating Power	122kw
Max Speed	35moulds/min	Feeding Motor	4.4kw
The Longest Knife	12m	Control Forming Plug Motor Power	5.5kw
Dimension	450020002600mm	Winding Waste Of Edge Sheet Motor Power	0.4kw
Forming clamping force	1100kn	Forming Motor	15kw
Max. Forming Depth	≤180mm by blowing	Machine Travel	≤220mm
