Plastic Thermoforming Machine for PP/PS Disposable Water Cups

▶

Plastic Thermoforming Machine for PP/PS Disposable Water Cups

Model：RSC-800-500

Contact Details

WhatsApp： 8615355870907

Email： zhu@cnrayshape.com

PDF Download Enquire Now

INTRODUCTION

The RSC-800-500 , our compact Plastic Cup Thermoforming Machine, is designed to meet the needs of small-to-medium scale manufacturers, combining space-saving design with reliable performance. As a streamlined variant of our standard Plastic Thermoforming Machine, it retains all the core functions of a professional Plastic Cup Making Machine while occupying 40% less floor space, making it ideal for workshops and factories with limited space.
Despite its compact size, this efficient Plastic Cup Making Machine automates the entire production process: automatic sheet loading, feeding, heating, forming, and trimming. It features a simplified yet robust full-servo drive system, ensuring stable performance and consistent output—comparable to larger Plastic Thermoforming Machine models. The machine’s user-friendly control panel allows for easy operation and parameter adjustment, making it accessible even for operators with limited technical experience. It also supports quick mold changes, enabling manufacturers to switch between different cup sizes and styles in minutes.

As a versatile Plastic Cup Making Machine, it processes commonly used materials such as PP, PS, and PET, making it suitable for producing a range of essential disposable products: water cups, small beverage cups, milk cups, and disposable bowls. Its production speed is optimized for small-to-medium scale output, reaching up to 35 molds per minute, while maintaining high quality and low material waste. The machine’s durable construction and low maintenance requirements also reduce operational costs, making it a cost-effective choice for growing businesses.

In essence, the RSC-800-500 Plastic Cup Thermoforming Machine is the perfect fit for small-to-medium scale manufacturers seeking a reliable, space-saving Plastic Cup Making Machine. Its compact design, easy operation, and consistent performance make it an excellent investment for businesses looking to enter the disposable cup market or expand their production capacity without compromising on space or efficiency

MACHINE STRUCTURE

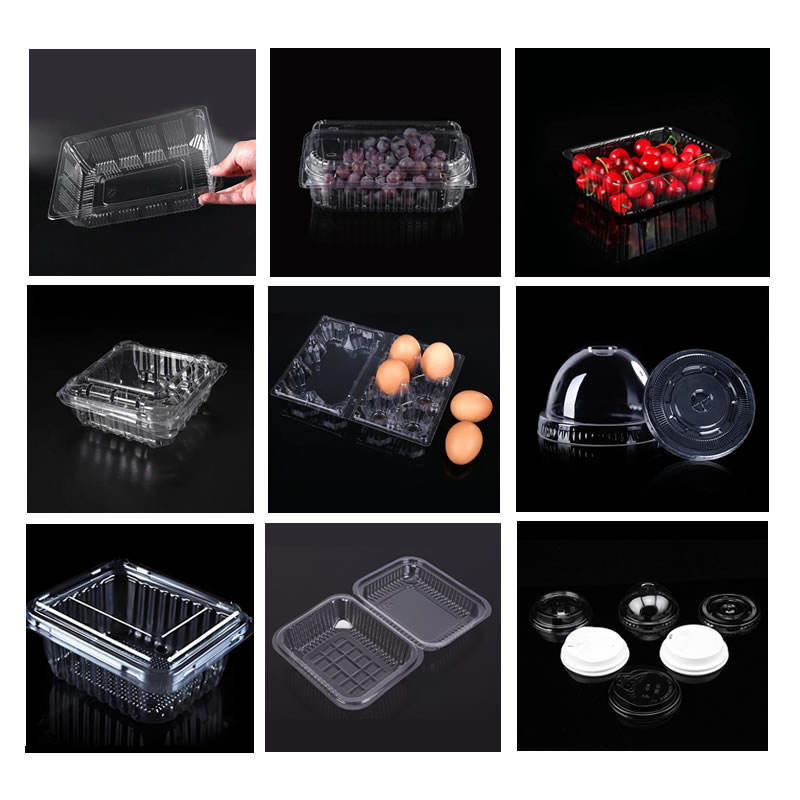

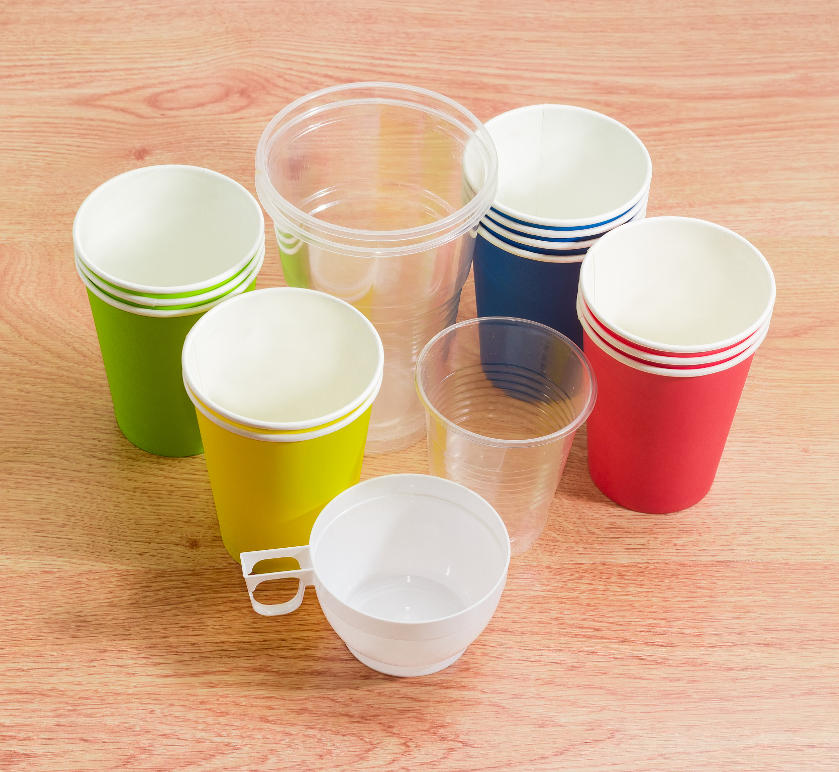

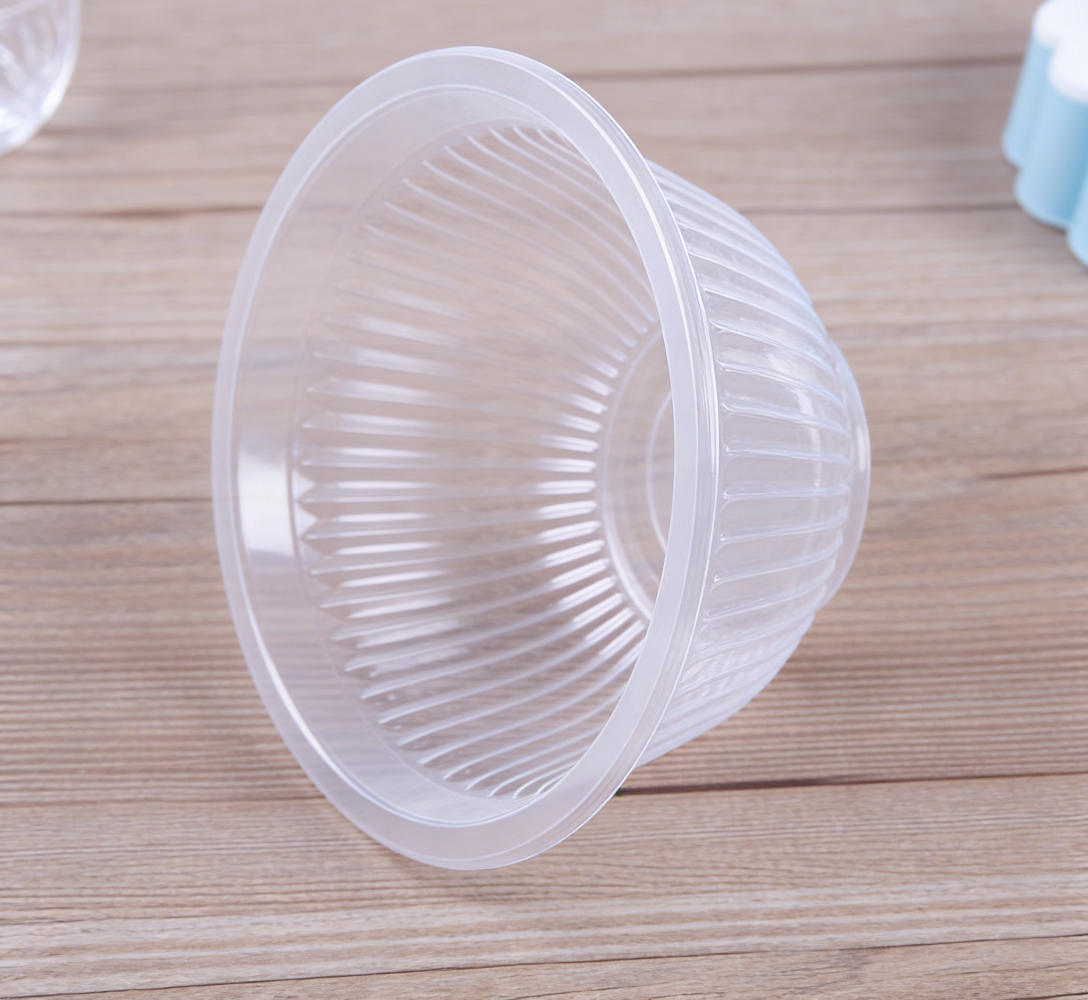

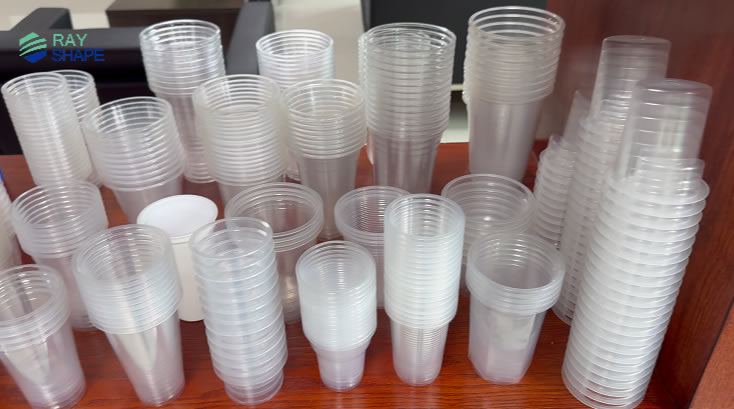

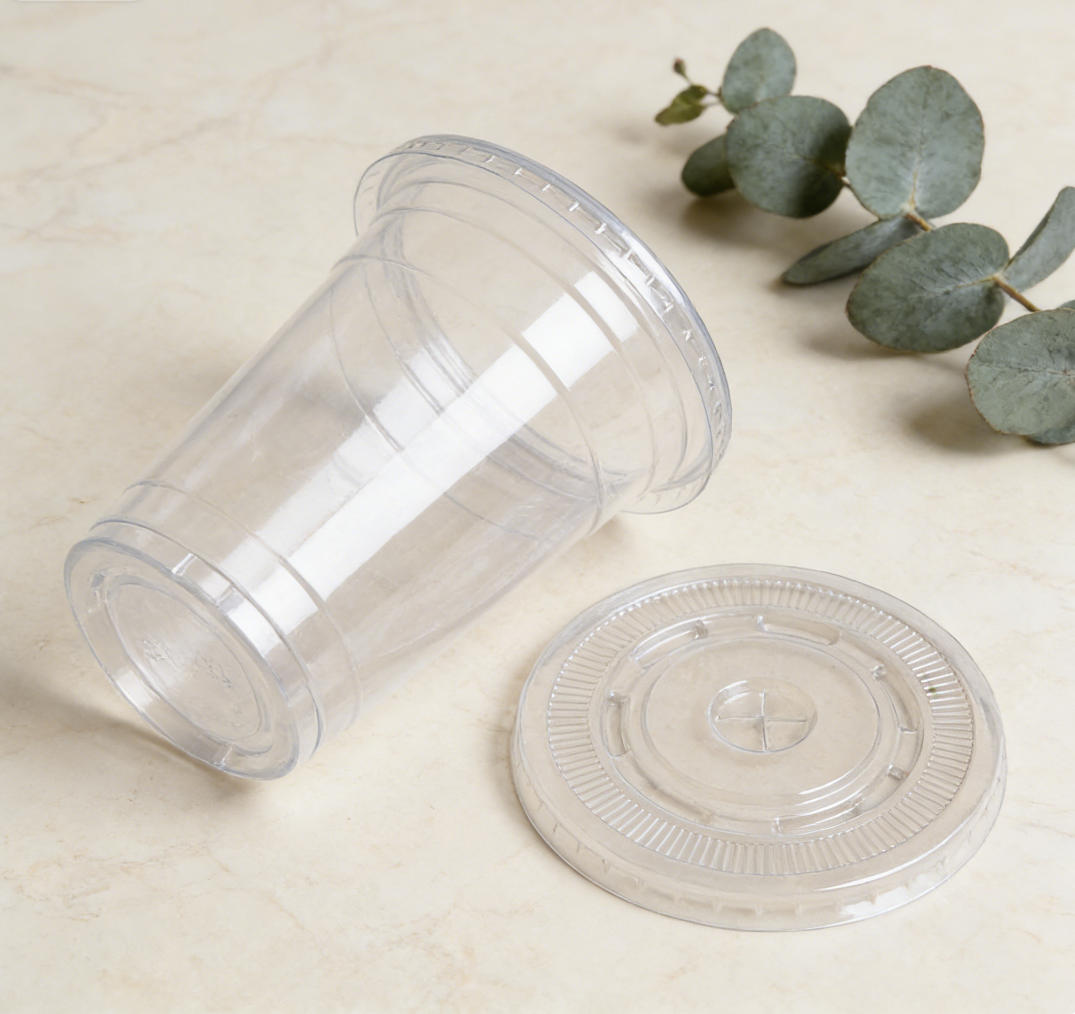

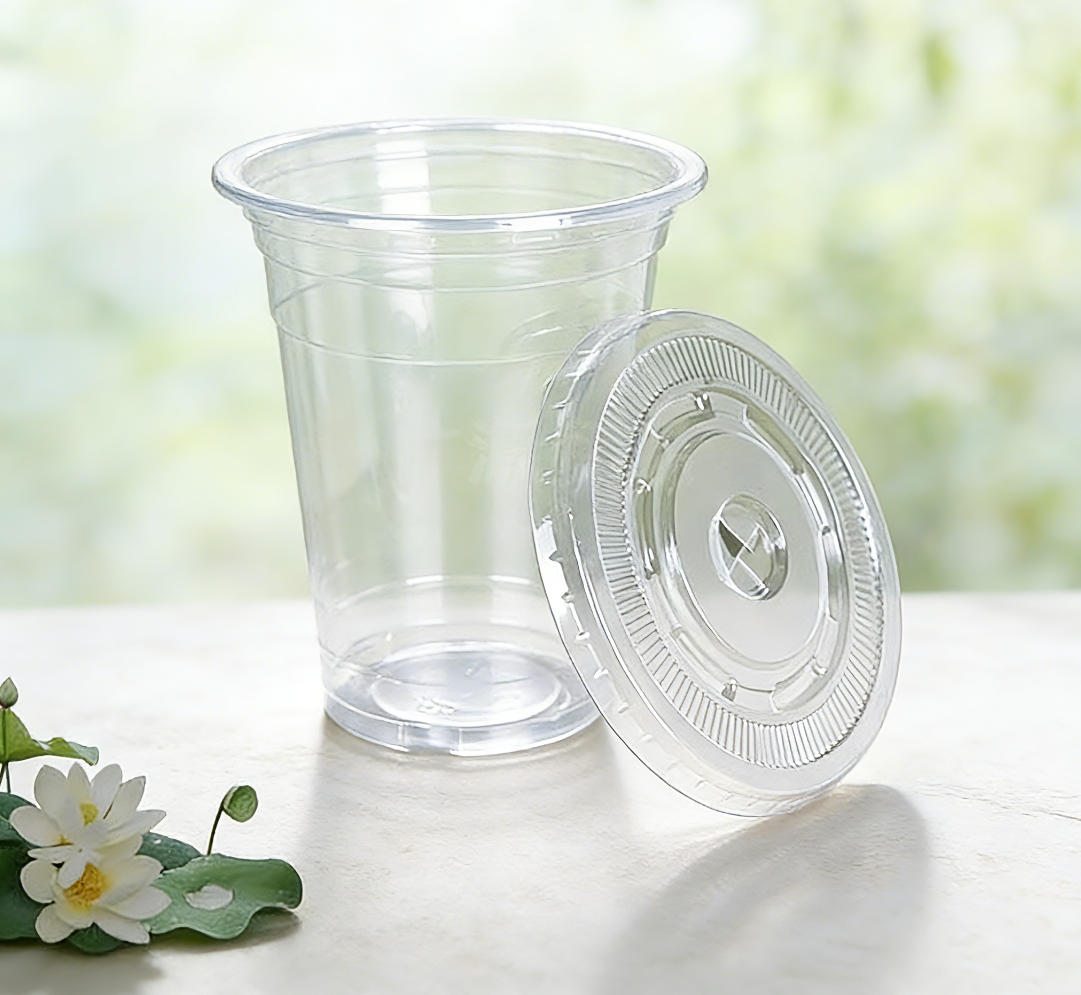

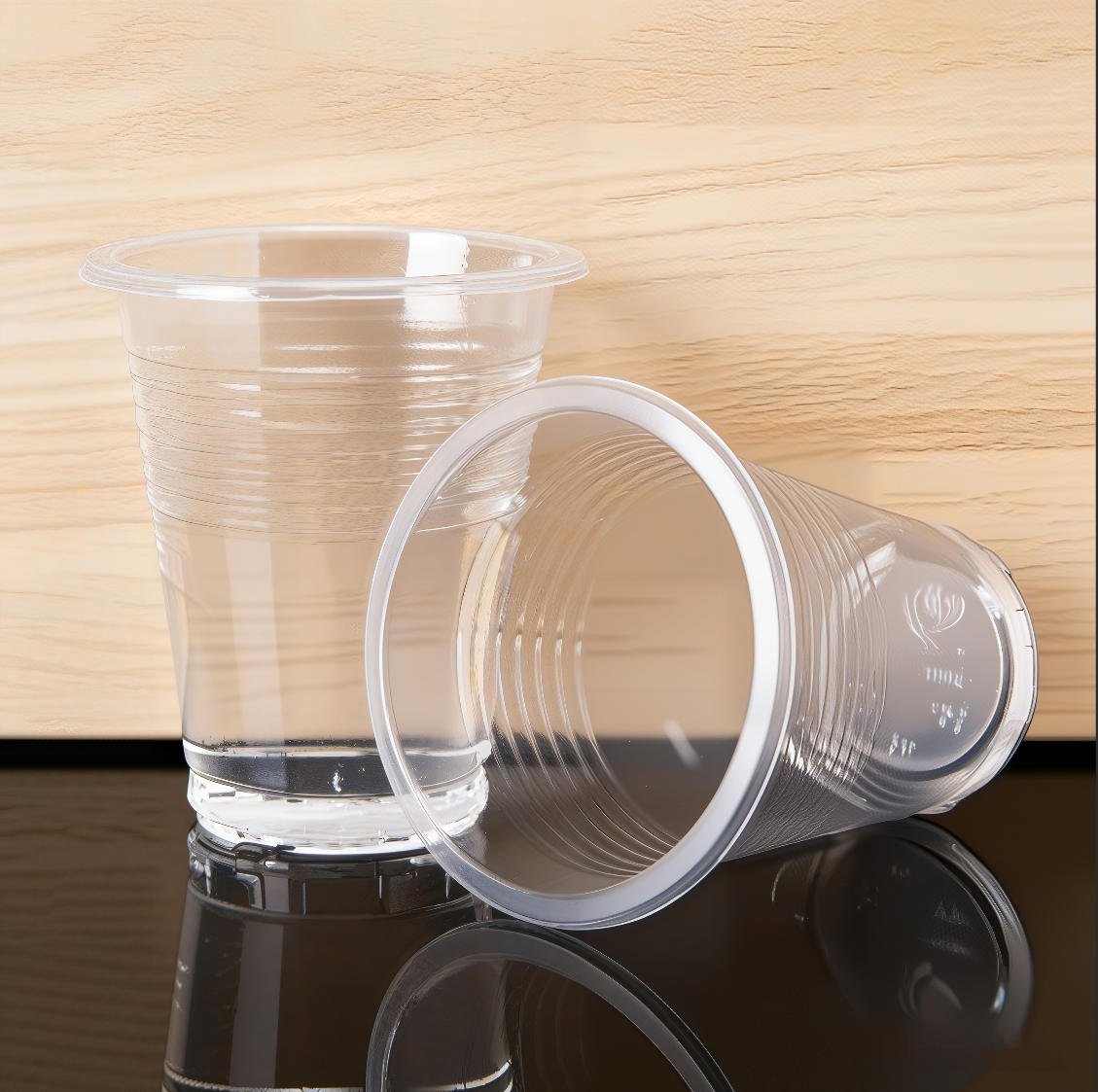

PRODUCTS RANGE

FEATURES AND ADVANTAGES

1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.

2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).

3. Easy-to-operate human-machine interface, and has the function of remote connection.

4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.

5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.

6. The upper and lower electric heating furnaces are used for 6-7 heating stages and protection to reduce the impact of air convection on temperature, ensuring stable product molding. It only takes 3 minutes to heat from 0 to 400 degrees, improving production efficiency. The electric heating furnace can be automatically removed.

7. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.

8. The mold opening and closing by servo motor, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.

9. Positive pressure forming ensures uniform thickness, full shapes, and sharp corners.

10. The chain frame features a fast cooling and wear-resistant design.

11. The cup blowing system offers adjustable blowing angle and air volume.

12. A servo motor chain drive automatically extends the track to prevent sheet sagging, ensuring stable, precise, and smooth sheet feeding.

13. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.

14. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.

SPECIFICAITON

Sheet Materials	PP/PS/PET/PLA/PE/CPET	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-2.5mm	Weight	7500kg
Forming Area	780*480mm	Total Installed Power	150KW
Width Of Sheet	400-850mm	Heating Power	122kw
Max Speed	35moulds/min	Feeding Motor	4.4kw
The Longest Knife	12m	Control Forming Plug Motor Power	5.5kw
Dimension	450020002600mm	Winding Waste Of Edge Sheet Motor Power	0.4kw
Forming clamping force	1100kn	Forming Motor	15kw
Max. Forming Depth	≤180mm by blowing	Machine Travel	≤220mm
