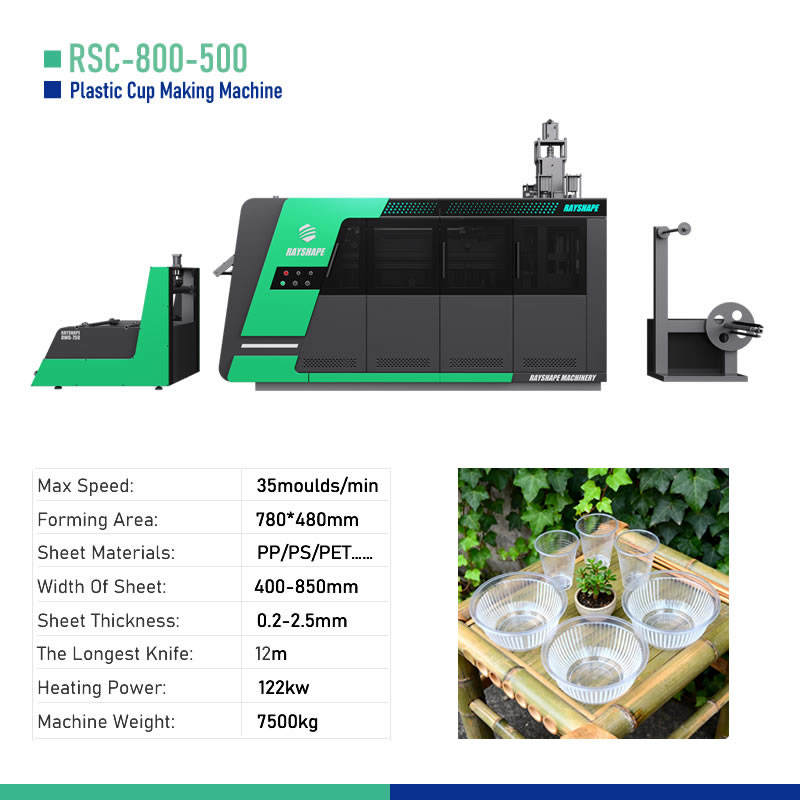

Automatic Plastic Cup Thermoforming Machine

▶

Automatic Plastic Cup Thermoforming Machine

Model：RSC-800-500

Contact Details

WhatsApp： 8615355870907

Email： zhu@cnrayshape.com

PDF Download Enquire Now

INTRODUCTION

In the era of smart manufacturing, our Intelligent Plastic Cup Thermoforming Machine leads the transformation and upgrading of the disposable plastic cup production industry. This high-tech Plastic Cup Making Machine integrates intelligent control, Internet of Things technology, and advanced thermoforming technology, realizing full-process intelligent monitoring and management, and bringing a new production experience to manufacturers.

As a cutting-edge Plastic Cup Thermoforming Machine, it is equipped with an intelligent operation system that can realize automatic parameter setting, production process monitoring, and data statistics. The machine’s full-servo drive system ensures stable forming and fast production speed, while the precise temperature control and vacuum forming technology ensure the high quality of finished products. In addition, the machine can be connected to the enterprise’s production management system, realizing remote monitoring and maintenance, reducing the workload of staff.

This Intelligent Plastic Cup Making Machine is highly compatible with various plastic materials, including PP, PET, PLA, R-PET, HIPS, BOPS, PVC, and other materials, and can produce a variety of disposable plastic cups and containers. Its intelligent fault diagnosis function can quickly identify equipment failures and provide solutions, reducing maintenance time and production losses. The machine also adopts a hygienic design, which is easy to clean and disinfect, meeting the strict hygiene requirements of the food packaging industry.

In conclusion, the Intelligent Plastic Cup Thermoforming Machine is a core equipment for modern disposable plastic cup manufacturers to achieve smart production. Its advanced intelligent technology, stable performance, and wide compatibility will help enterprises improve production efficiency, reduce costs, and gain a competitive edge in the market, moving towards a more intelligent and efficient production model.

MACHINE STRUCTURE

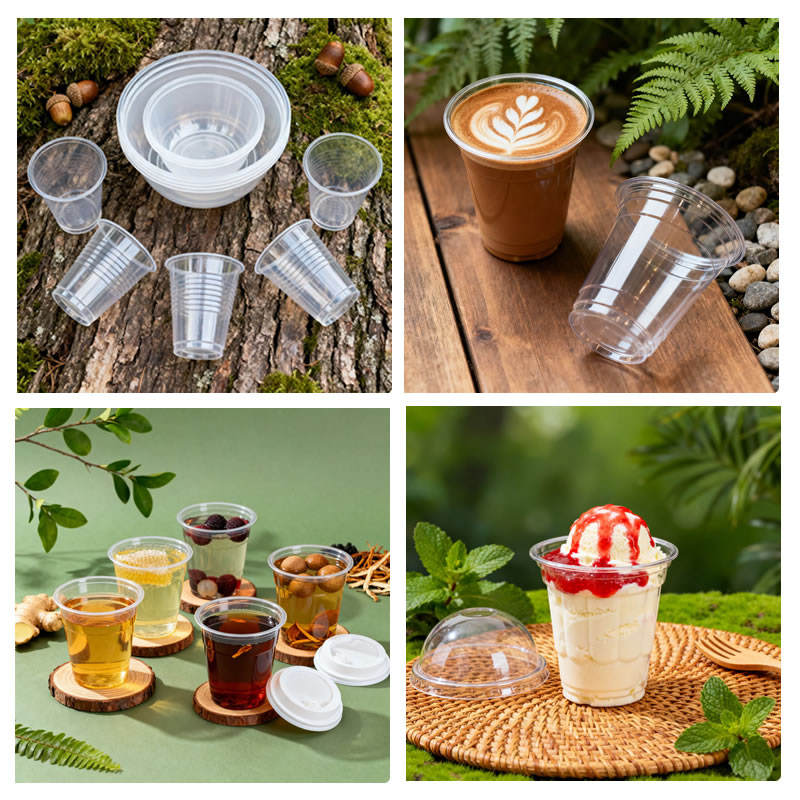

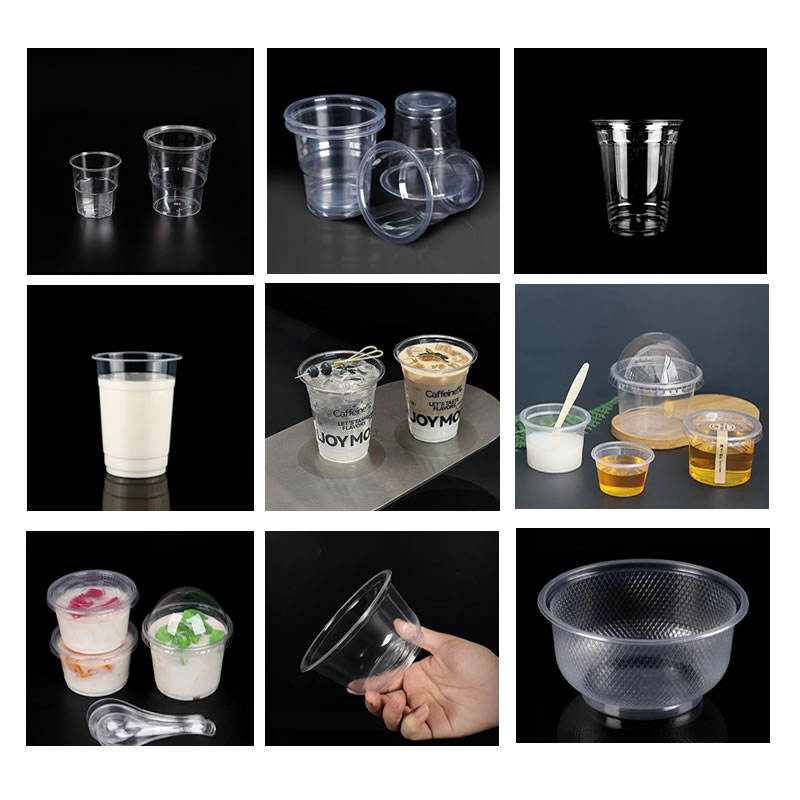

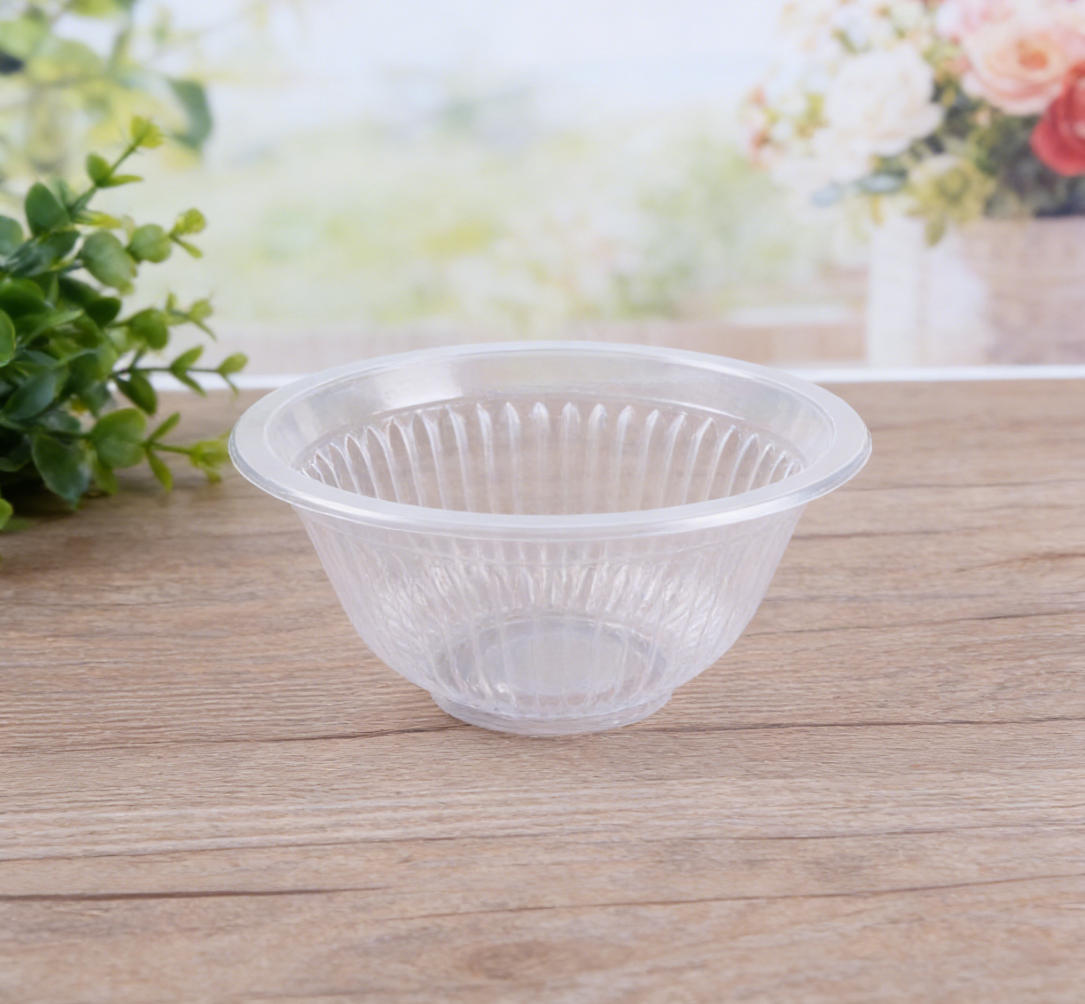

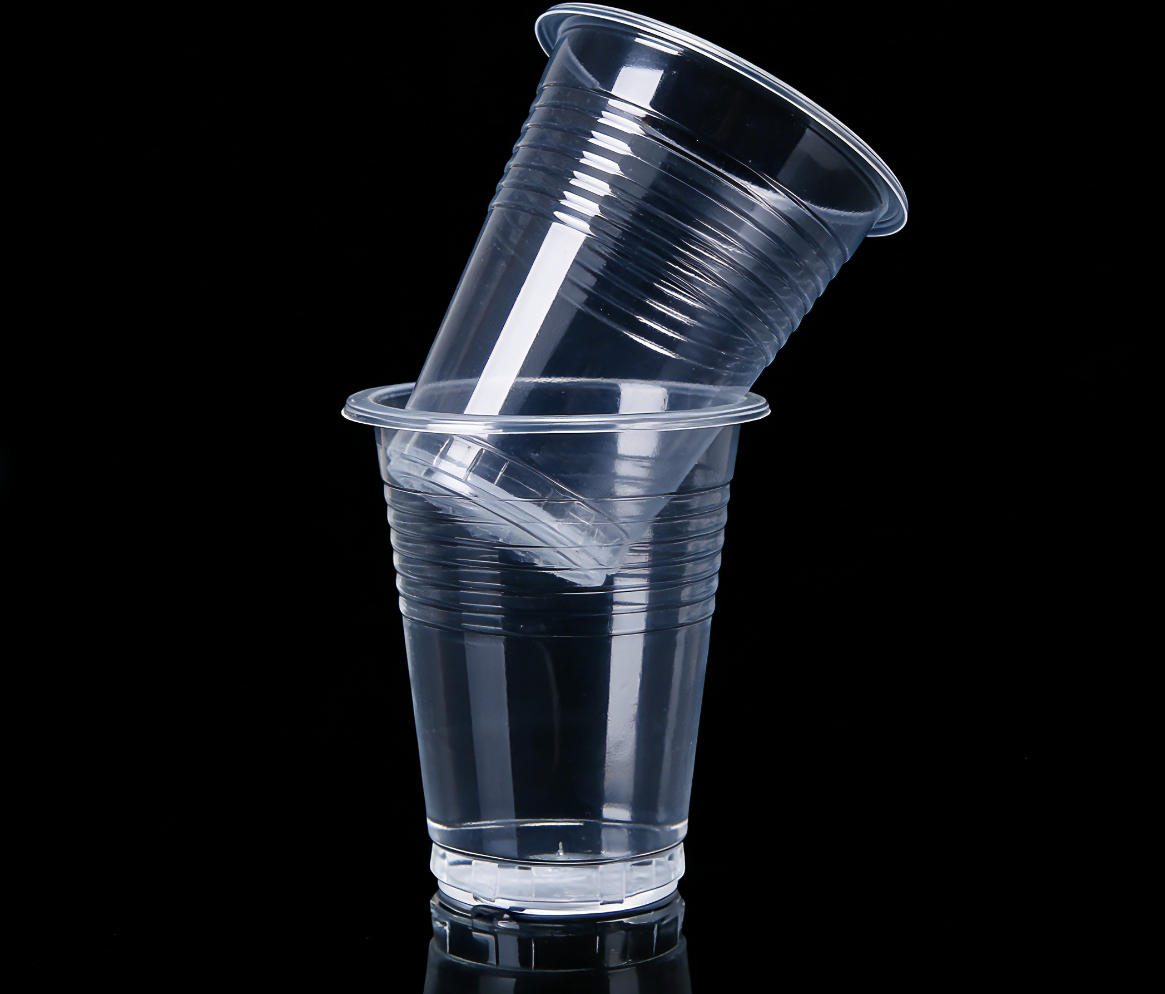

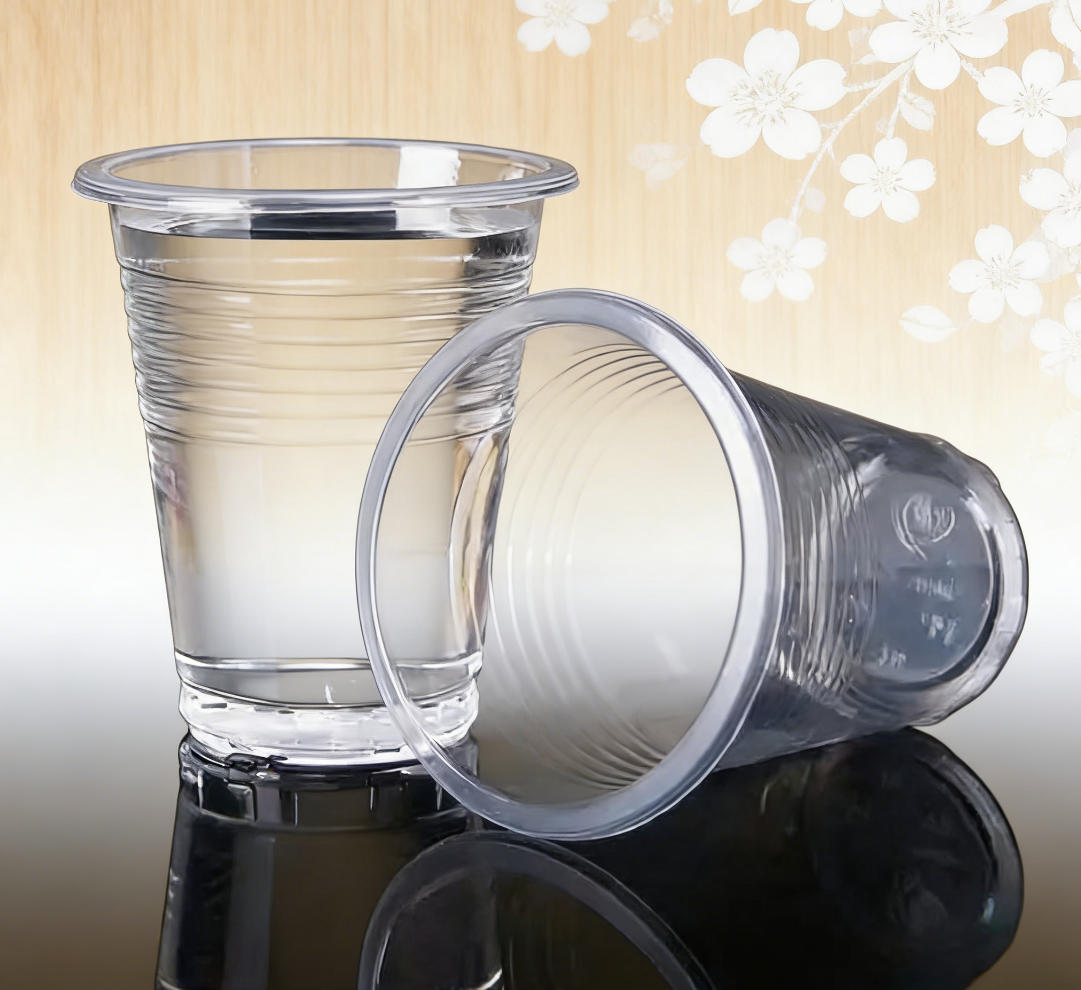

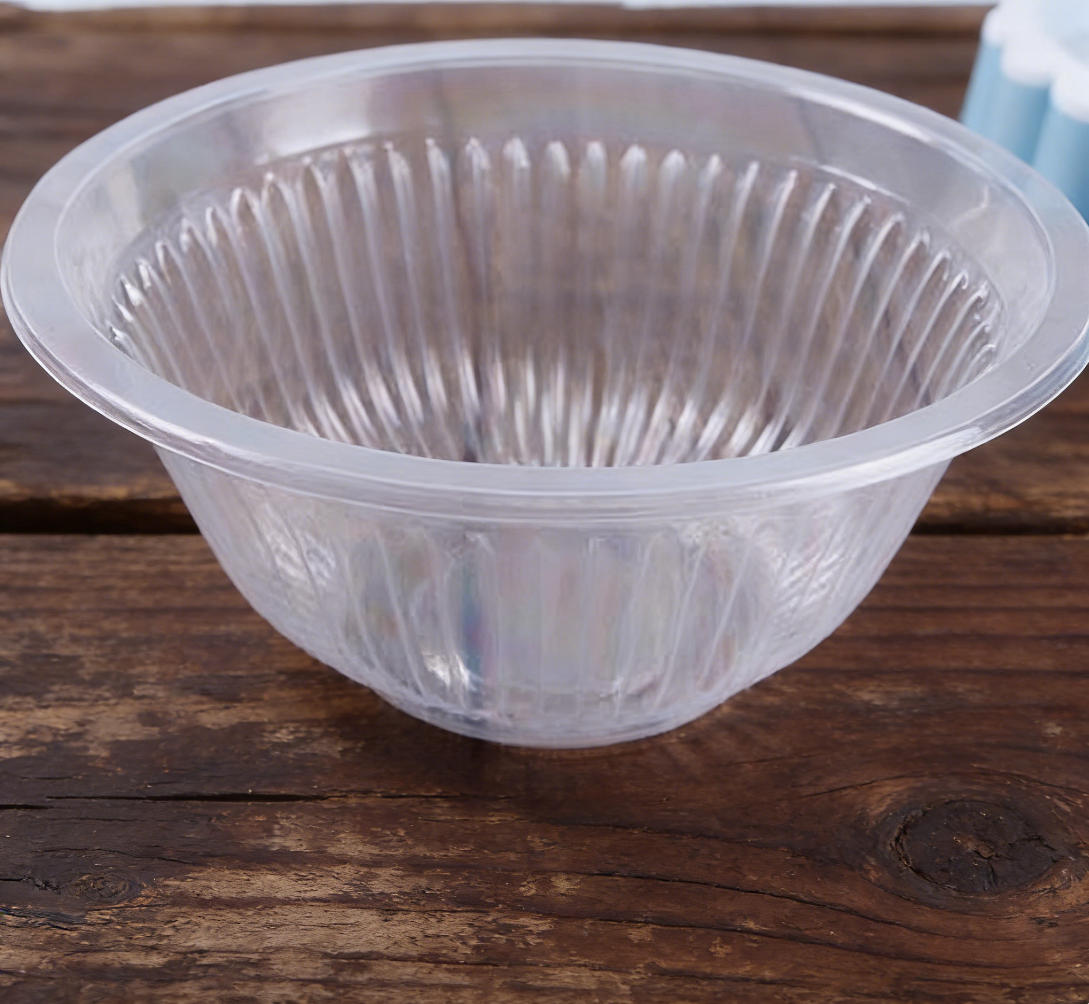

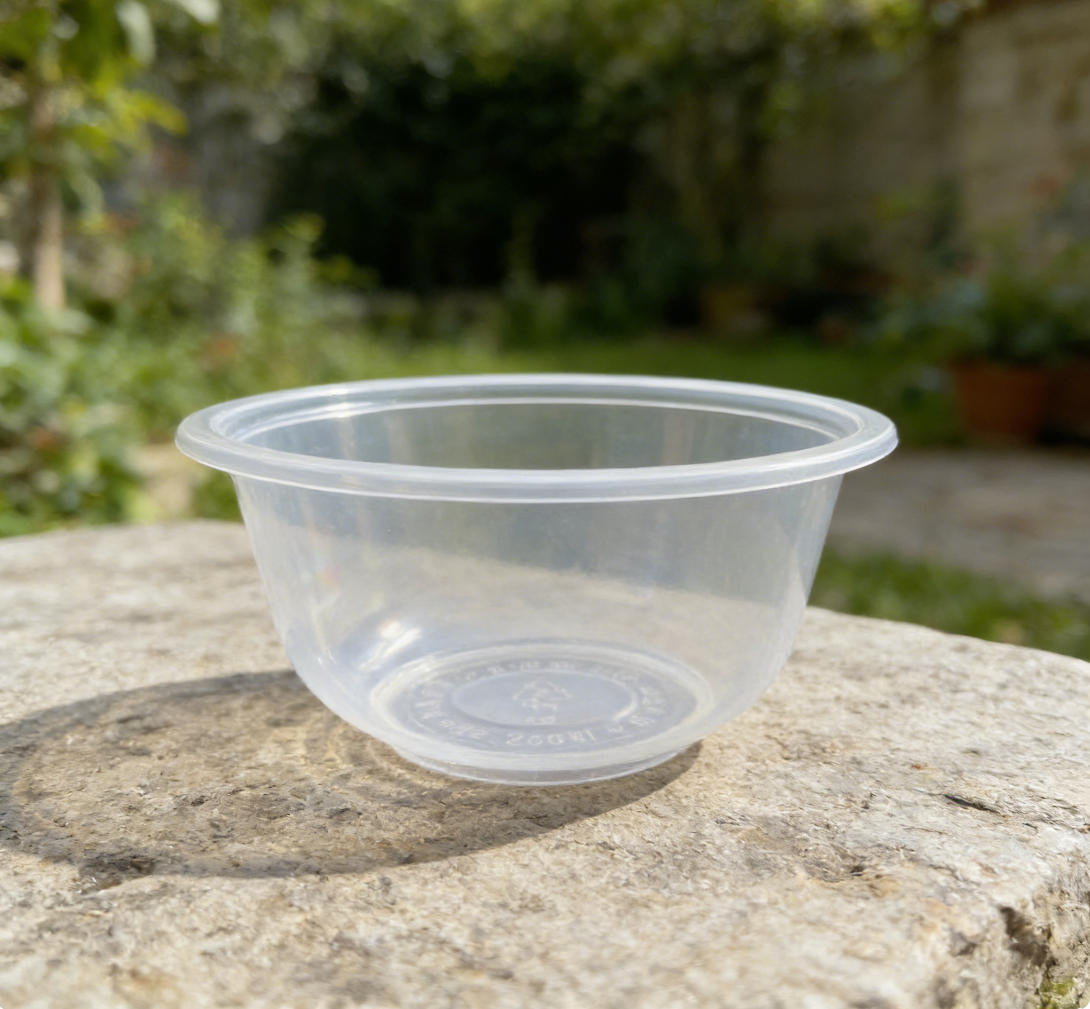

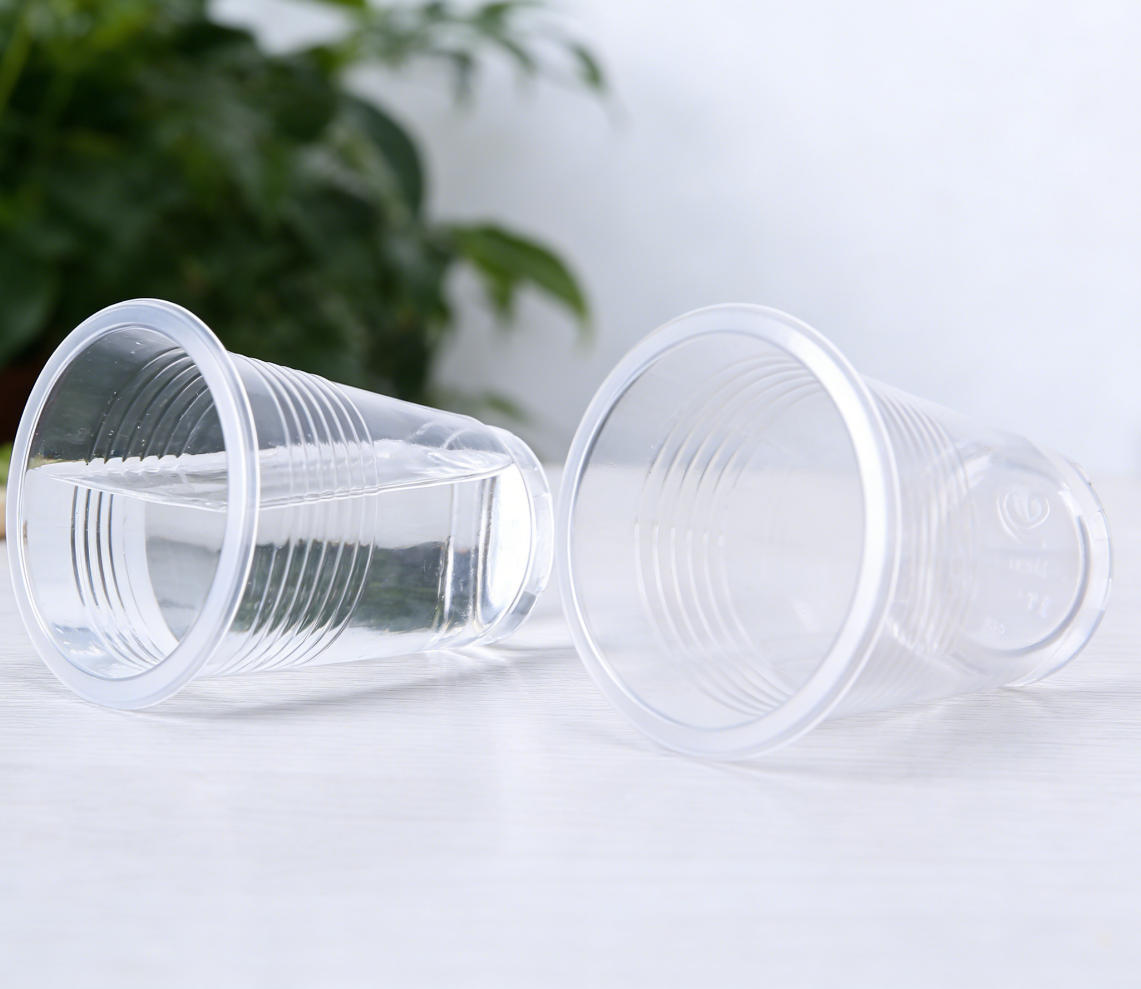

PRODUCTS RANGE

FEATURES AND ADVANTAGES

1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.

2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).

3. Easy-to-operate human-machine interface, and has the function of remote connection.

4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.

5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.

6. The upper and lower electric heating furnaces are used for 6-7 heating stages and protection to reduce the impact of air convection on temperature, ensuring stable product molding. It only takes 3 minutes to heat from 0 to 400 degrees, improving production efficiency. The electric heating furnace can be automatically removed.

7. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.

8. The mold opening and closing by servo motor, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.

9. Positive pressure forming ensures uniform thickness, full shapes, and sharp corners.

10. The chain frame features a fast cooling and wear-resistant design.

11. The cup blowing system offers adjustable blowing angle and air volume.

12. A servo motor chain drive automatically extends the track to prevent sheet sagging, ensuring stable, precise, and smooth sheet feeding.

13. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.

14. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.

SPECIFICAITON

Sheet Materials	PP/PS/PET/PLA/PE/CPET	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-2.5mm	Weight	7500kg
Forming Area	780*480mm	Total Installed Power	150KW
Width Of Sheet	400-850mm	Heating Power	122kw
Max Speed	35moulds/min	Feeding Motor	4.4kw
The Longest Knife	12m	Control Forming Plug Motor Power	5.5kw
Dimension	450020002600mm	Winding Waste Of Edge Sheet Motor Power	0.4kw
Forming clamping force	1100kn	Forming Motor	15kw
Max. Forming Depth	≤180mm by blowing	Machine Travel	≤220mm
