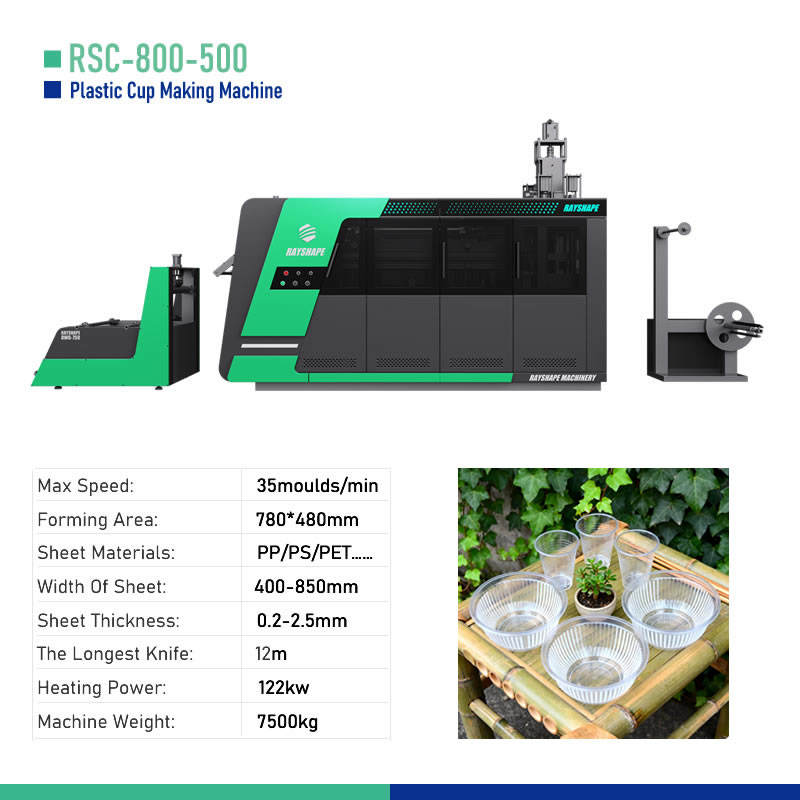

High Speed Plastic Thermoforming Machine for Bowl Making

▶

High Speed Plastic Thermoforming Machine for Bowl Making

Model：RSC-800-500

Contact Details

WhatsApp： 8615355870907

Email： zhu@cnrayshape.com

PDF Download Enquire Now

INTRODUCTION

In the disposable plastic bowl production industry, the Plastic Bowl Making Machine, based on Plastic Thermoforming Machine technology, has become the core equipment for manufacturers aiming to improve production efficiency and product quality. Its unique combination of professionalism and practicality makes it irreplaceable, and it has become the first choice for enterprises in the industry.

The core reason why the Plastic Bowl Making Machine stands out is its perfect integration of Plastic Thermoforming Machine technology and plastic bowl production needs. The Plastic Thermoforming Machine provides a mature forming foundation, while the Plastic Bowl Making Machine optimizes every link for plastic bowl production—from the design of the forming mold to the adjustment of the heating temperature, all tailored to the characteristics of plastic bowls. This ensures that the produced plastic bowls have a smooth surface, no burrs, and strong load-bearing capacity, meeting the strict requirements of food safety and market demand.

Another important reason is its high automation level. The Plastic Bowl Making Machine realizes full automation of the entire production process, from material loading to cutting, which greatly reduces manual labor and labor costs. At the same time, the intelligent parameter save function allows engineers to save the optimal parameters for different bowl molds, avoiding repeated debugging and ensuring consistent product quality. This is a significant improvement compared with the traditional Plastic Thermoforming Machine, which requires more manual intervention.

In addition, the Plastic Bowl Making Machine has strong scalability. With the support of Plastic Thermoforming Machine technology, it can be upgraded and modified according to the development needs of enterprises, such as adding additional stations or expanding material compatibility. This allows manufacturers to continuously adapt to the changing market demands and maintain their competitive advantage.

In summary, the Plastic Bowl Making Machine, relying on the mature technology of the Plastic Thermoforming Machine, has become the core force driving the development of the disposable plastic bowl industry. Its professional performance, high efficiency, and versatility make it an indispensable equipment for manufacturers pursuing high-quality, large-scale production.

MACHINE STRUCTURE

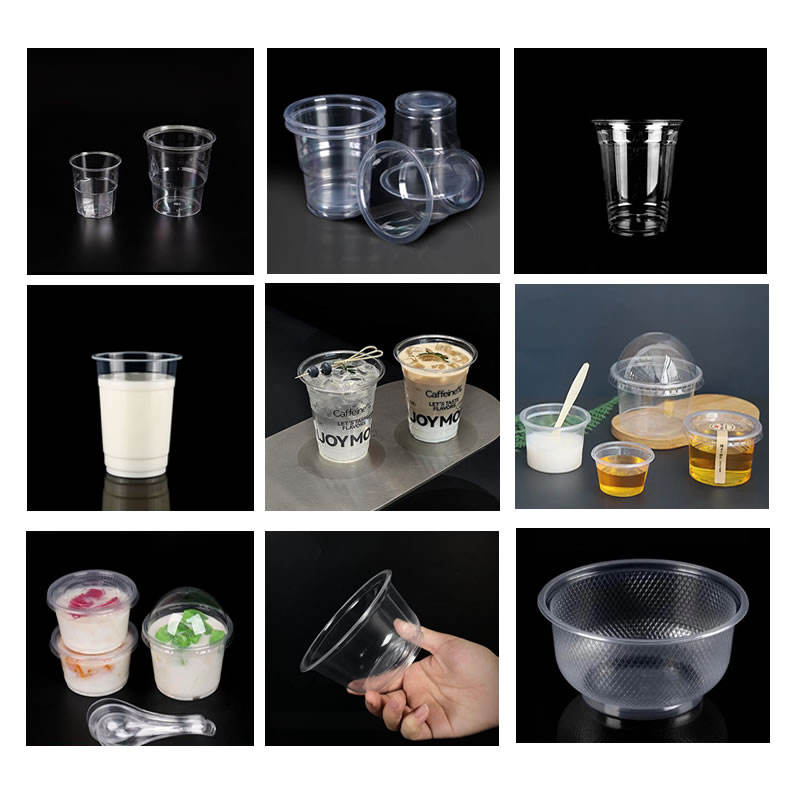

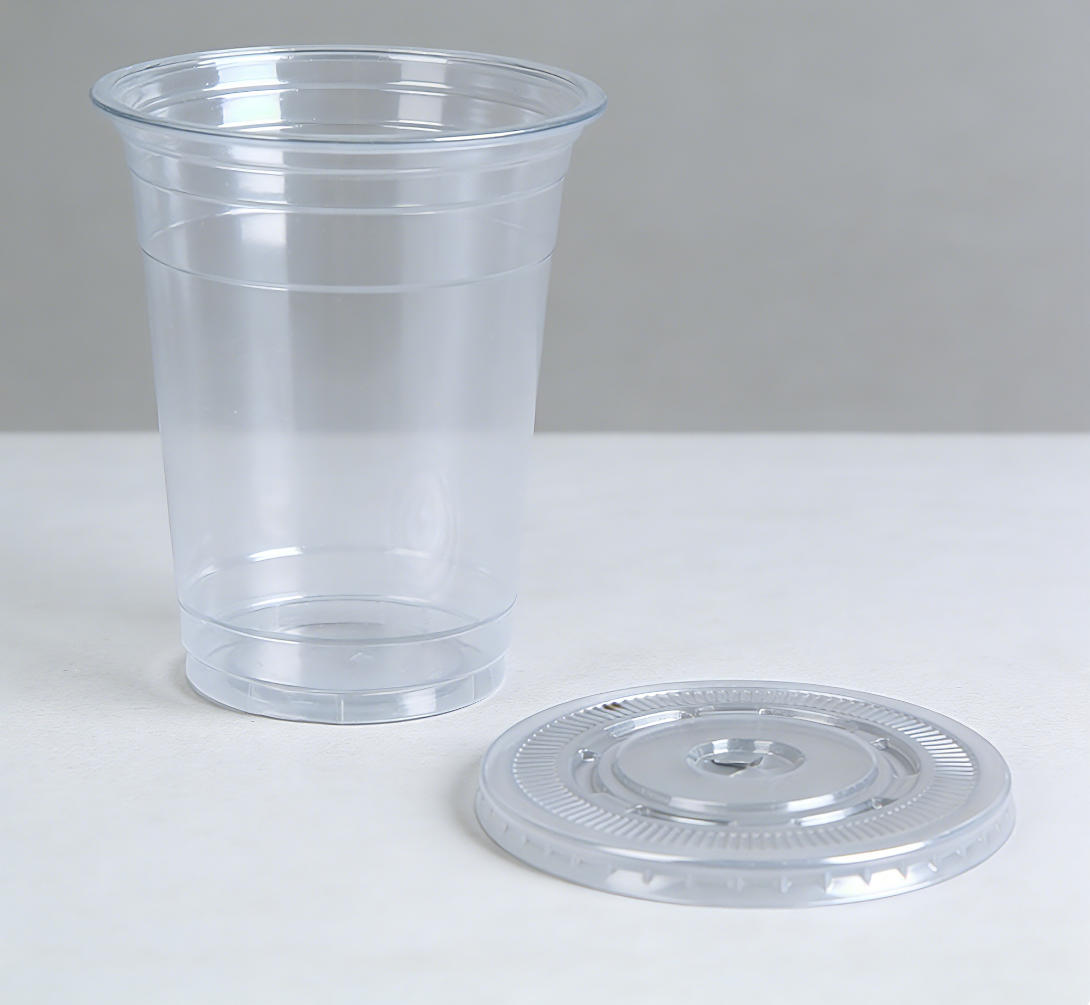

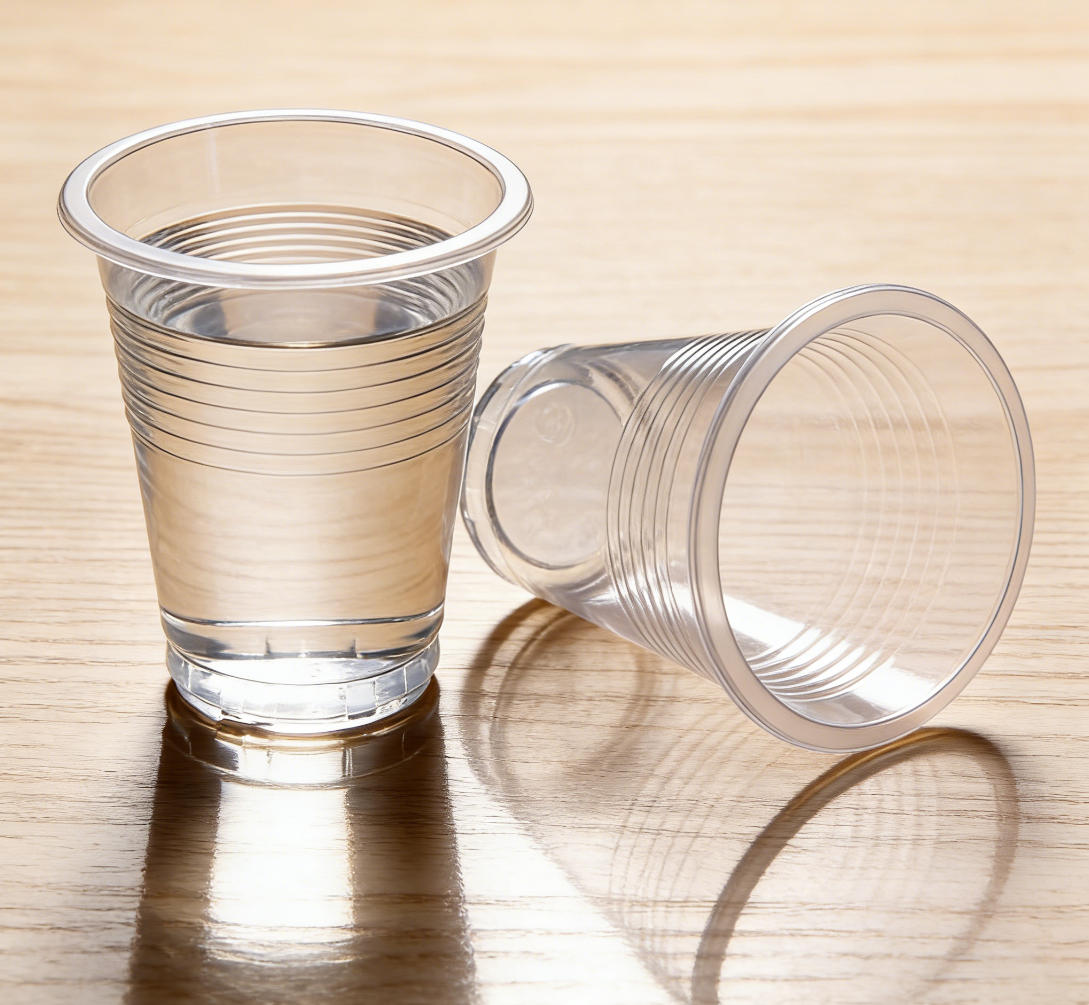

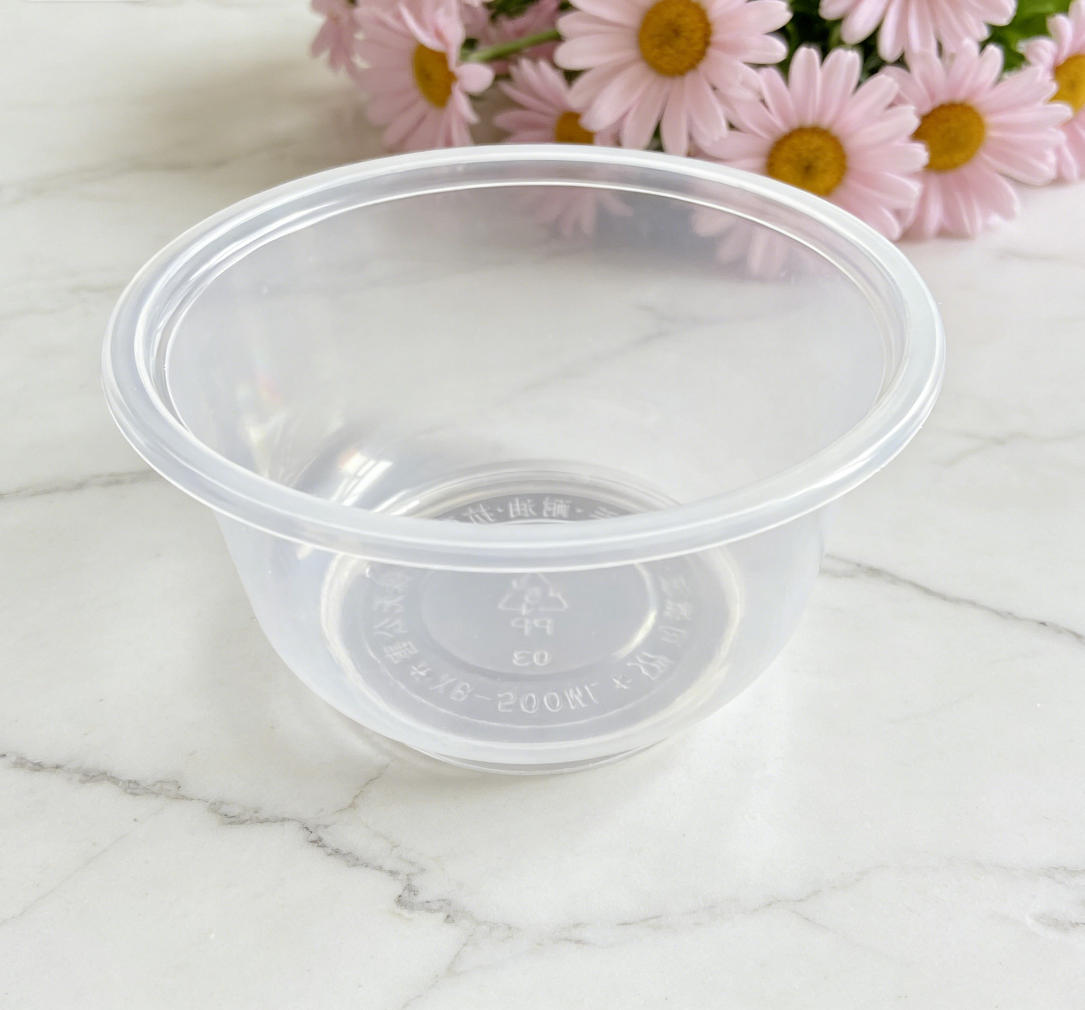

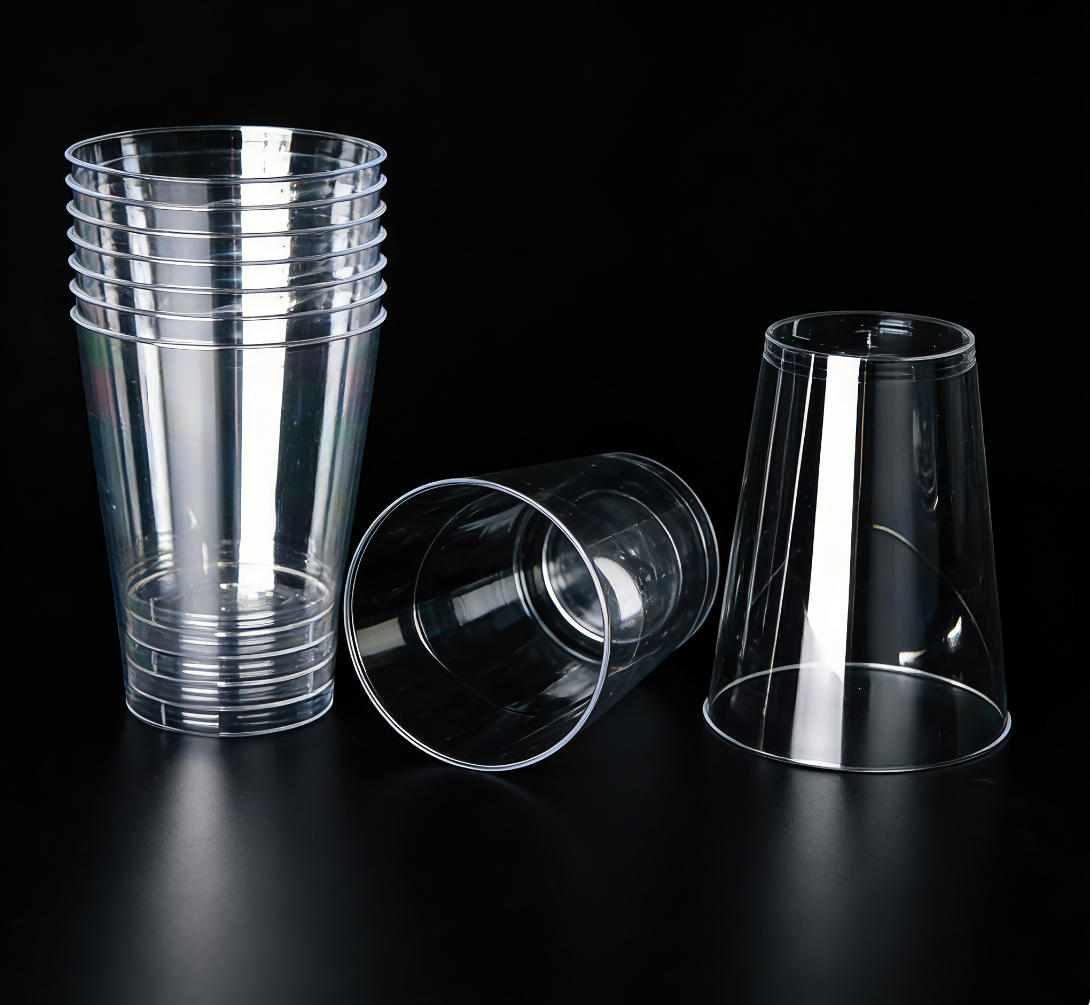

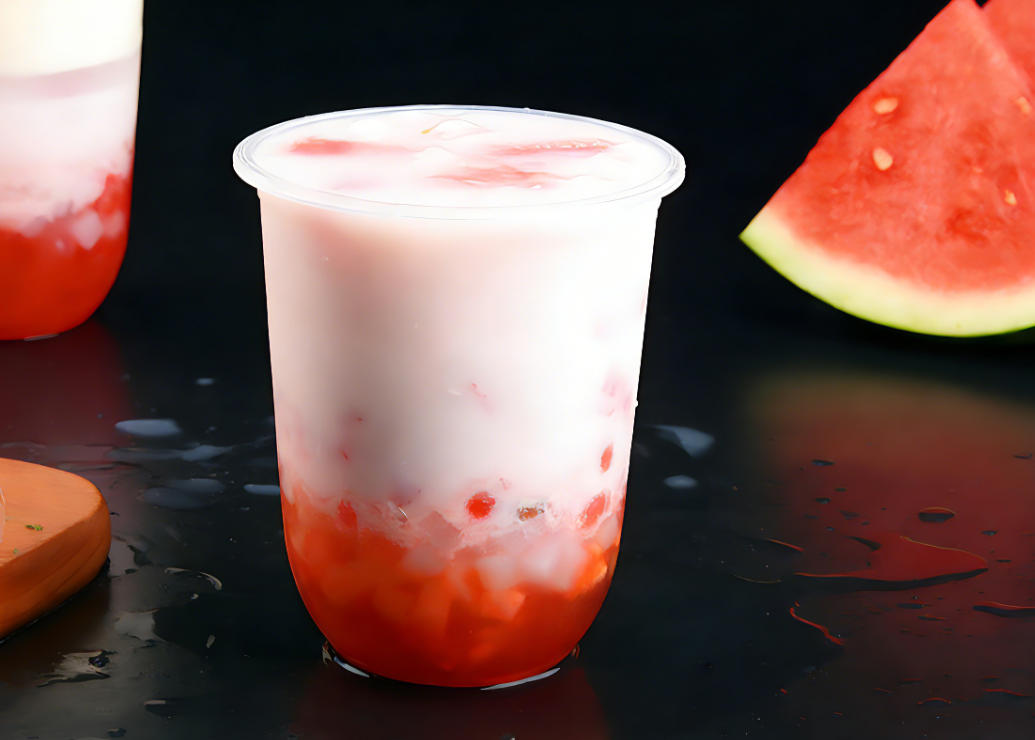

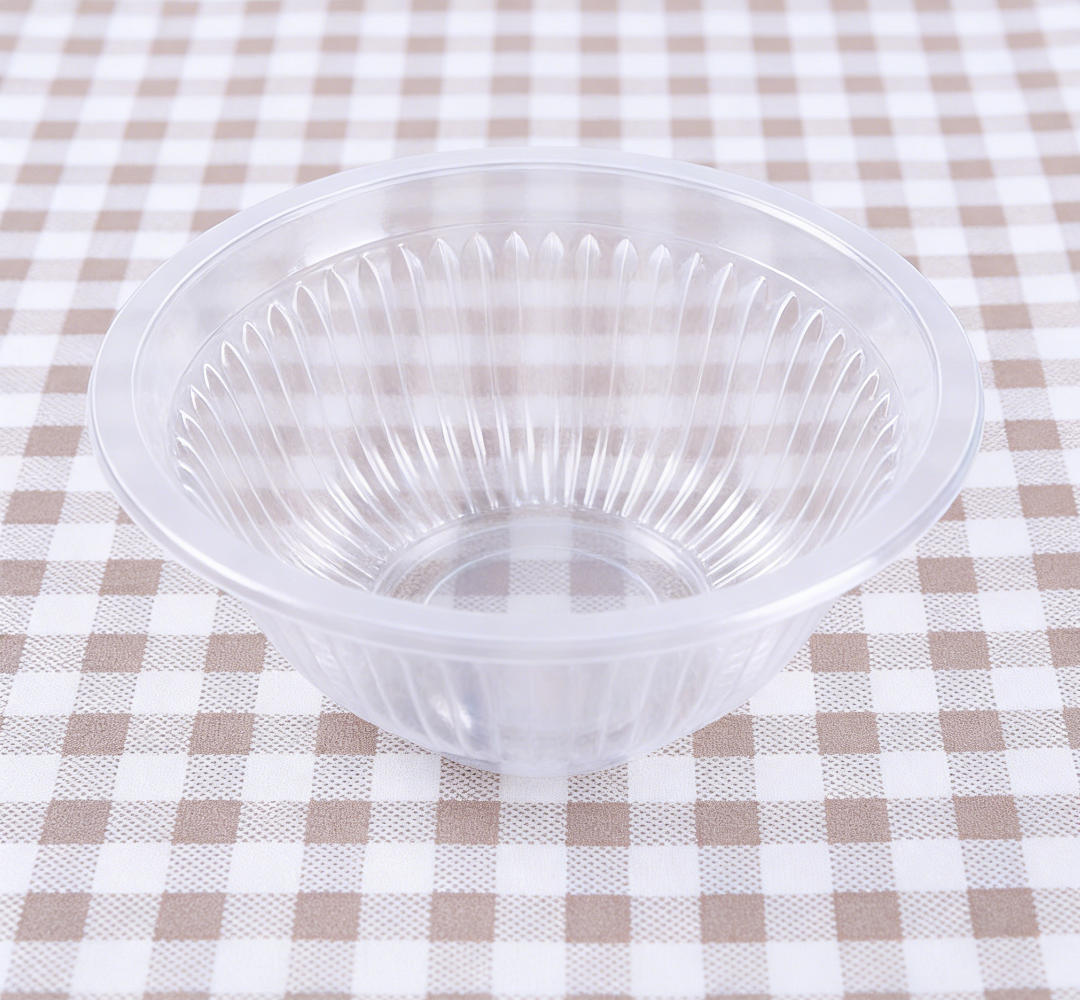

PRODUCTS RANGE

FEATURES AND ADVANTAGES

1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.

2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).

3. Easy-to-operate human-machine interface, and has the function of remote connection.

4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.

5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.

6. The upper and lower electric heating furnaces are used for 6-7 heating stages and protection to reduce the impact of air convection on temperature, ensuring stable product molding. It only takes 3 minutes to heat from 0 to 400 degrees, improving production efficiency. The electric heating furnace can be automatically removed.

7. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.

8. The mold opening and closing by servo motor, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.

9. Positive pressure forming ensures uniform thickness, full shapes, and sharp corners.

10. The chain frame features a fast cooling and wear-resistant design.

11. The cup blowing system offers adjustable blowing angle and air volume.

12. A servo motor chain drive automatically extends the track to prevent sheet sagging, ensuring stable, precise, and smooth sheet feeding.

13. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.

14. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.

SPECIFICAITON

Sheet Materials	PP/PS/PET/PLA/PE/CPET	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-2.5mm	Weight	7500kg
Forming Area	780*480mm	Total Installed Power	150KW
Width Of Sheet	400-850mm	Heating Power	122kw
Max Speed	35moulds/min	Feeding Motor	4.4kw
The Longest Knife	12m	Control Forming Plug Motor Power	5.5kw
Dimension	450020002600mm	Winding Waste Of Edge Sheet Motor Power	0.4kw
Forming clamping force	1100kn	Forming Motor	15kw
Max. Forming Depth	≤180mm by blowing	Machine Travel	≤220mm
