Plastic Cup Making Machine for Disposable Beverage Cups

▶

Plastic Cup Making Machine for Disposable Beverage Cups

Model：RSC-800-500

Contact Details

WhatsApp： 8615355870907

Email： zhu@cnrayshape.com

PDF Download Enquire Now

INTRODUCTION

The PS-850-550, our precision-focused Plastic Cup Thermoforming Machine, is engineered to deliver exceptional quality and customization capabilities for high-end disposable plastic cups. As a specialized Plastic Thermoforming Machine designed for custom production, it integrates advanced precision control technology, making it the preferred choice for manufacturers catering to premium beverage and food brands.
This high-precision Plastic Cup Making Machine automates every production step with meticulous accuracy: automatic sheet alignment, precision feeding, variable-temperature heating, custom forming, and laser trimming. Its full-servo drive system, paired with a high-resolution control panel, ensures that each cup meets strict dimensional tolerances—critical for custom cup designs, logo printing, and special shapes. Unlike standard Plastic Thermoforming Machine models, it offers adjustable forming parameters, allowing manufacturers to tailor cup thickness, shape, and size to meet specific customer requirements.

The versatility of the PS-850-550 extends to material compatibility and product range. As a professional Plastic Cup Making Machine, it processes a wide variety of materials, including high-gloss A-PET, heat-resistant PP, and barrier materials for leak-proof cups. It can produce custom disposable products such as personalized coffee cups, branded beverage cups, luxury milk cups, and specialty food containers, all with a flawless finish and consistent quality. The machine’s integrated trimming system also ensures clean, burr-free edges, eliminating the need for secondary processing.

In summary, the PS-850-550 Plastic Cup Thermoforming Machine is the ultimate solution for manufacturers focusing on high-quality, custom disposable cup production. Its precision control, customization capabilities, and advanced automation make it a standout among Plastic Thermoforming Machine options, helping brands differentiate themselves in a competitive market with superior, tailored products.

MACHINE STRUCTURE

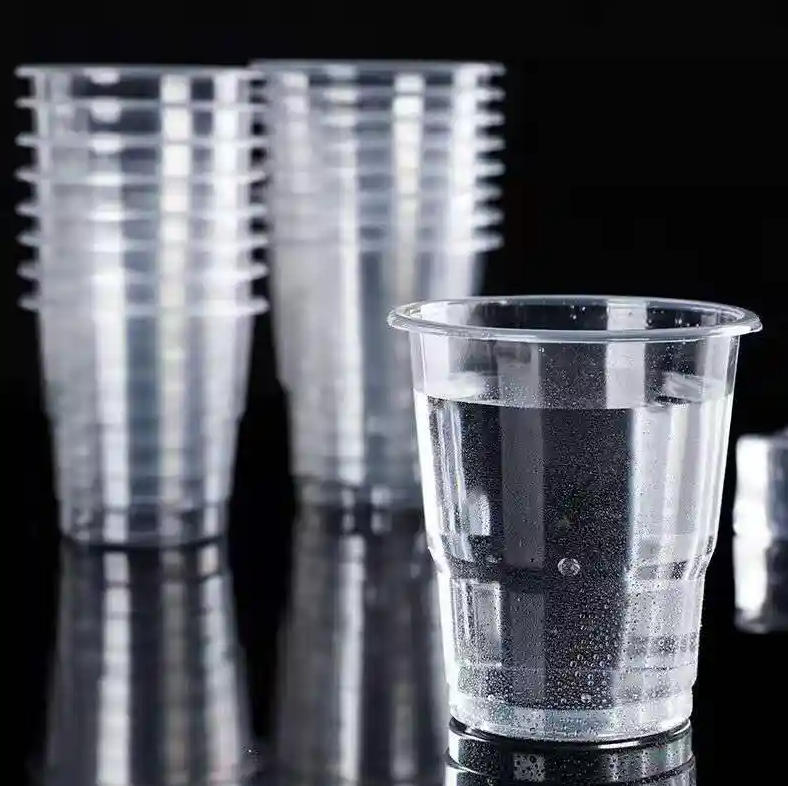

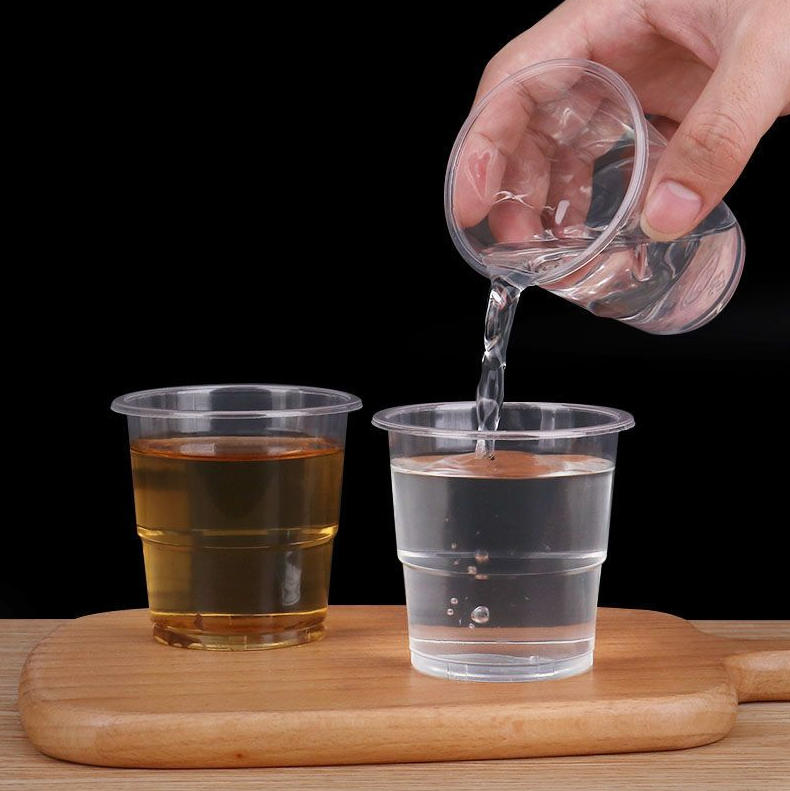

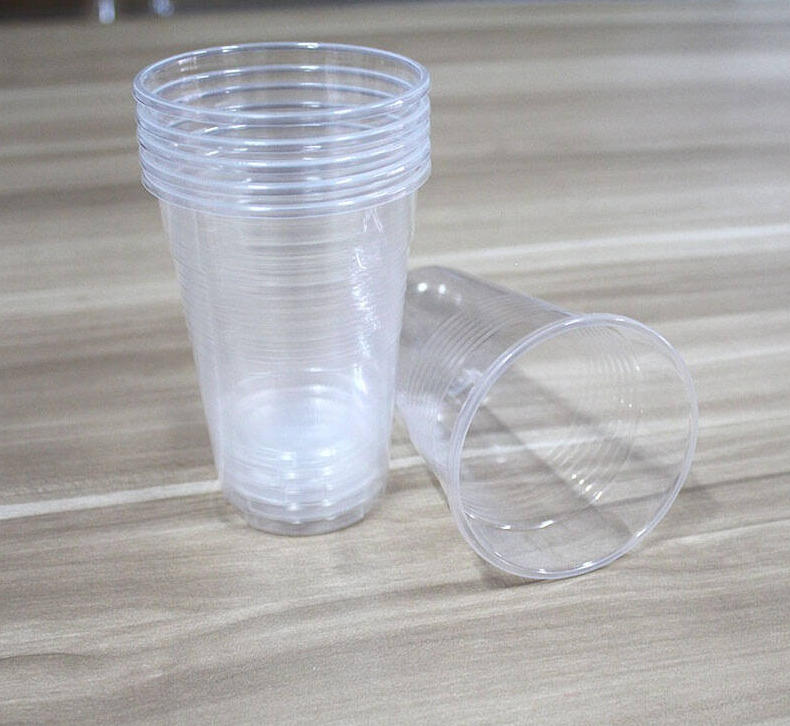

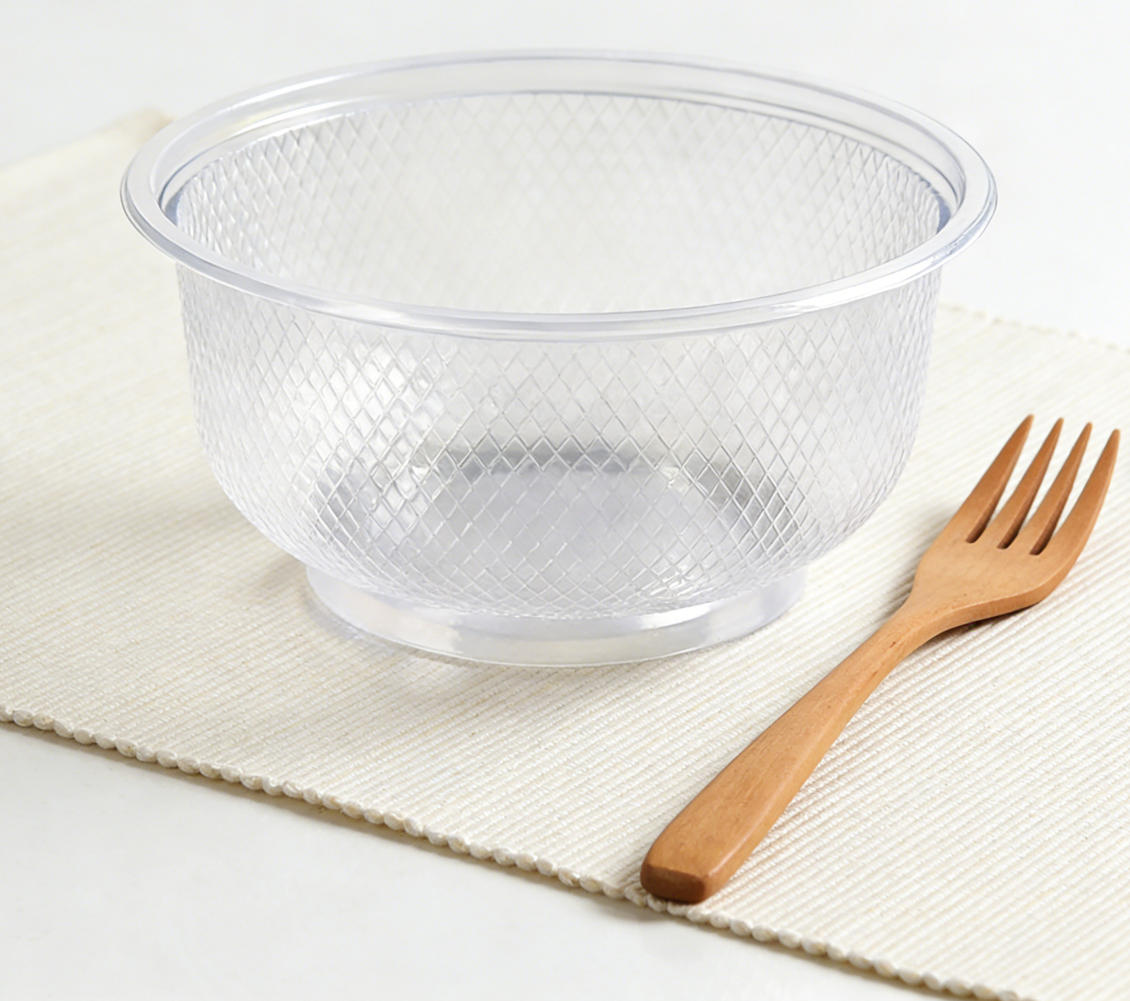

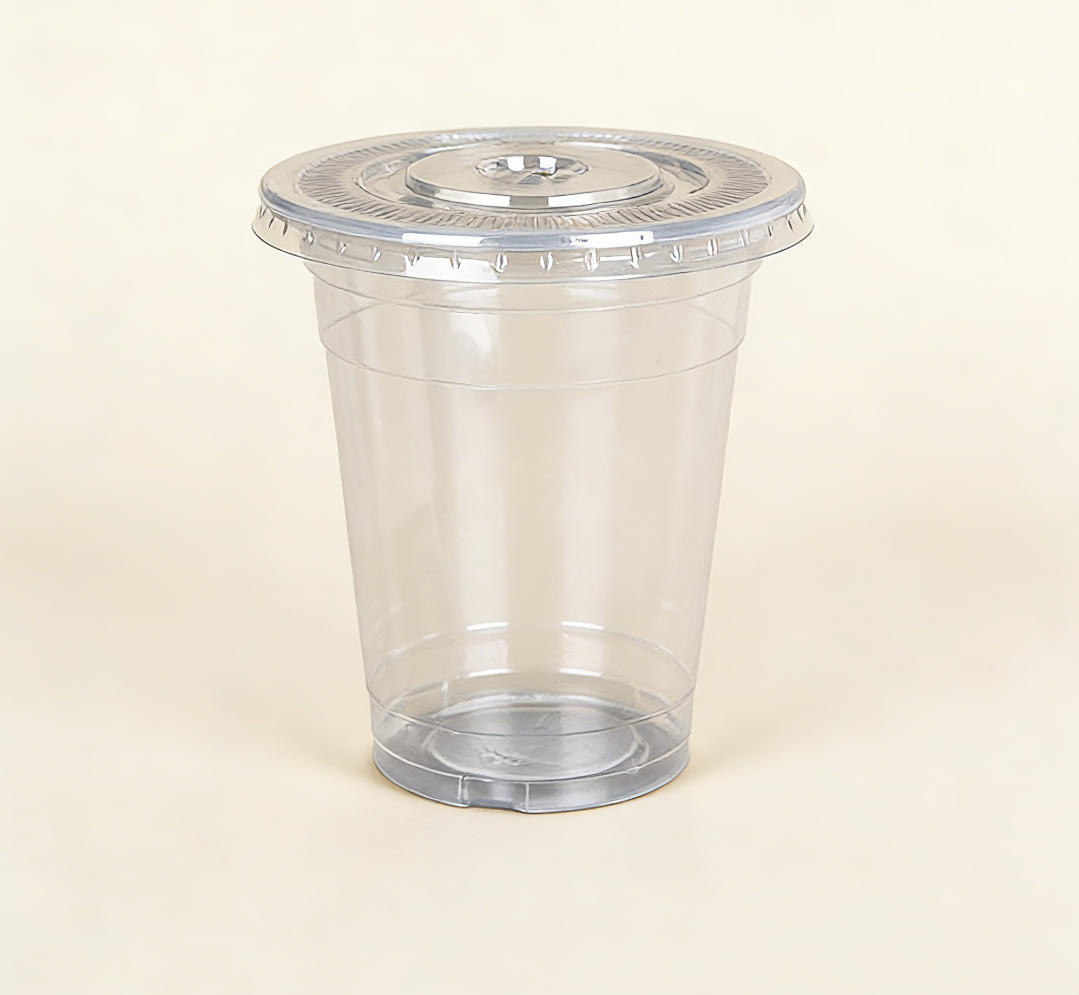

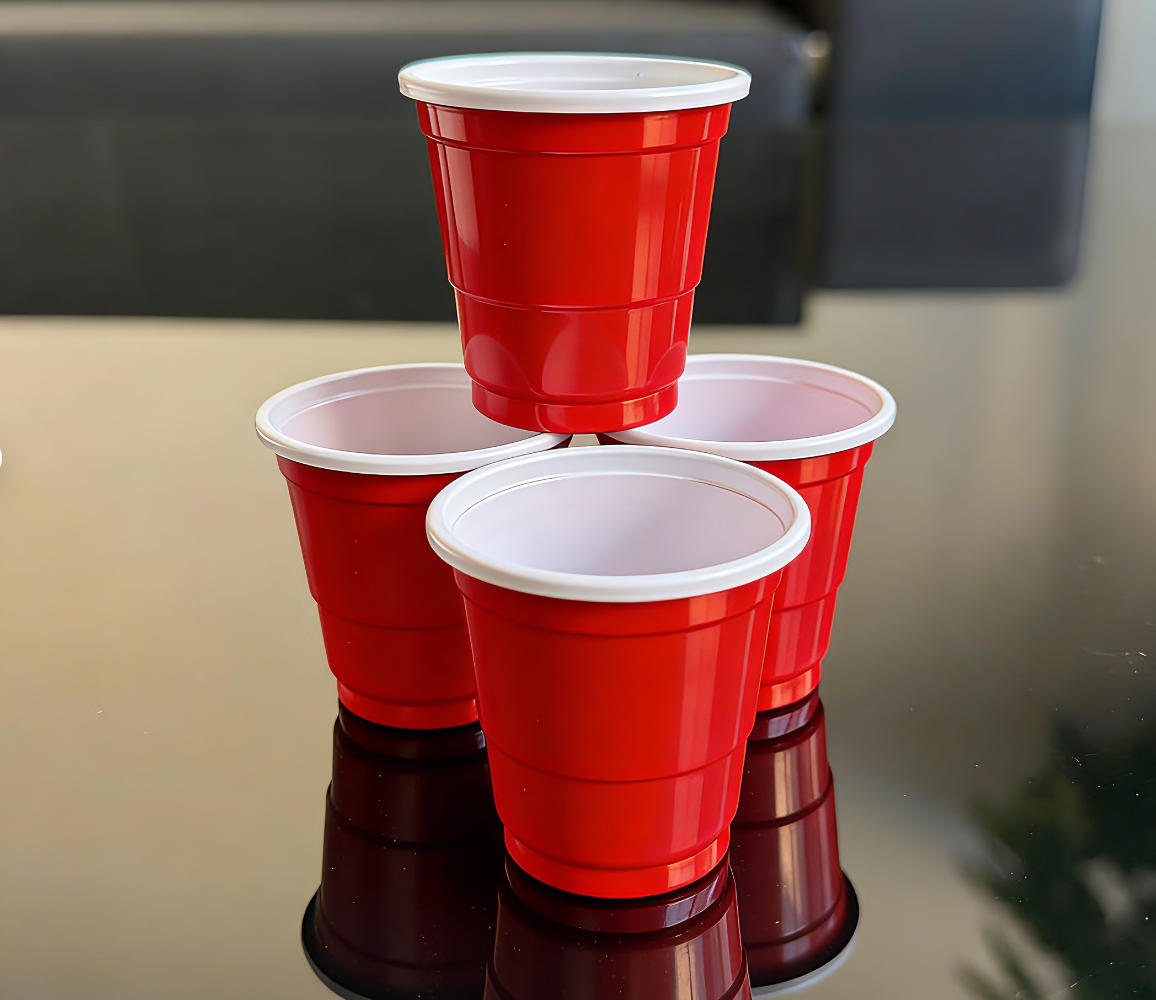

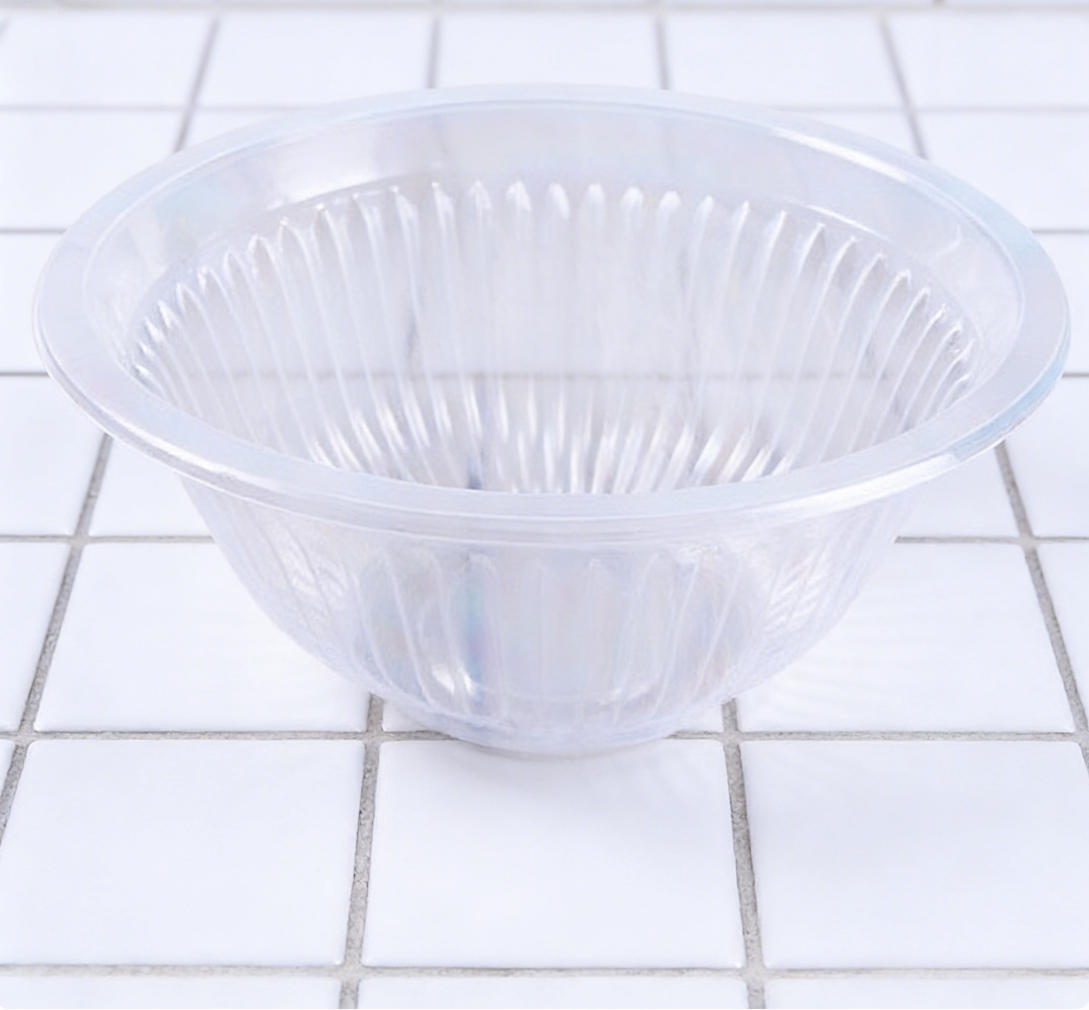

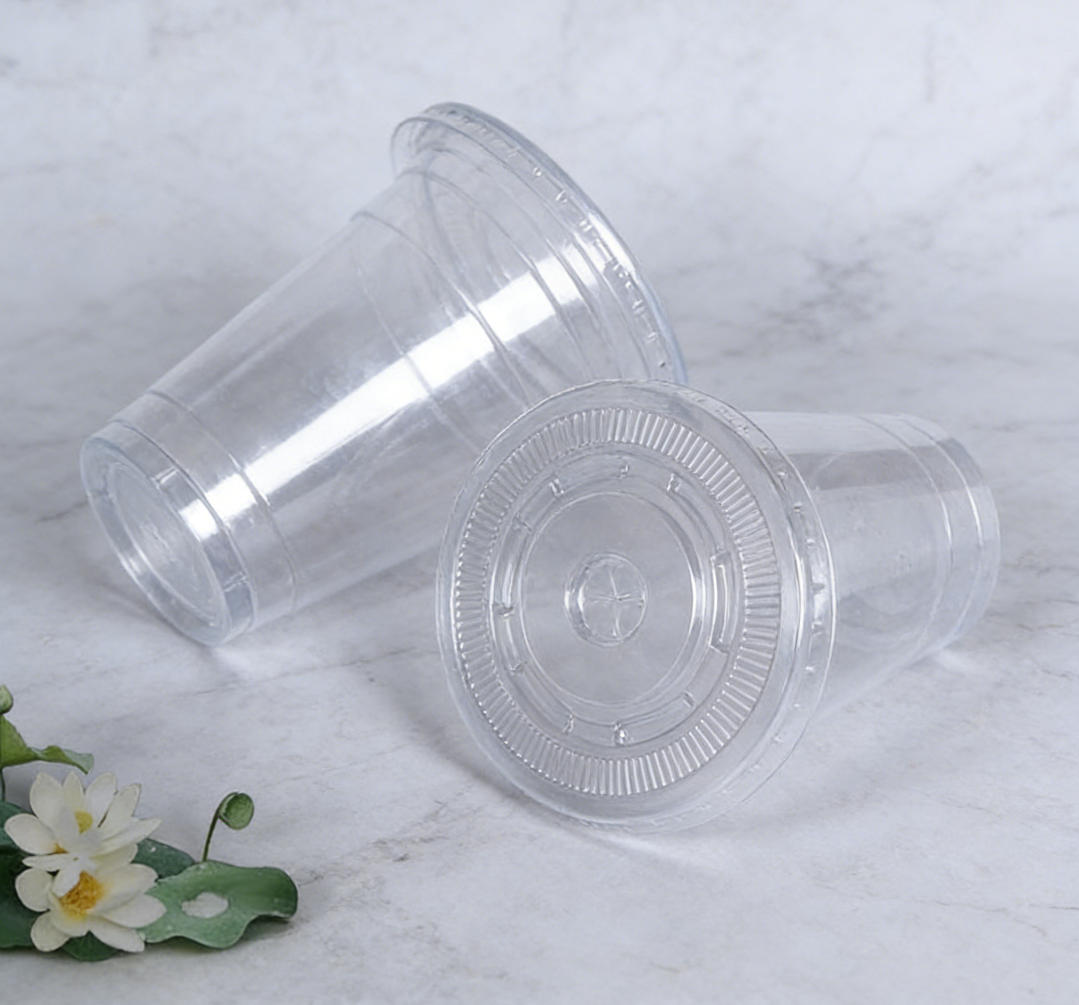

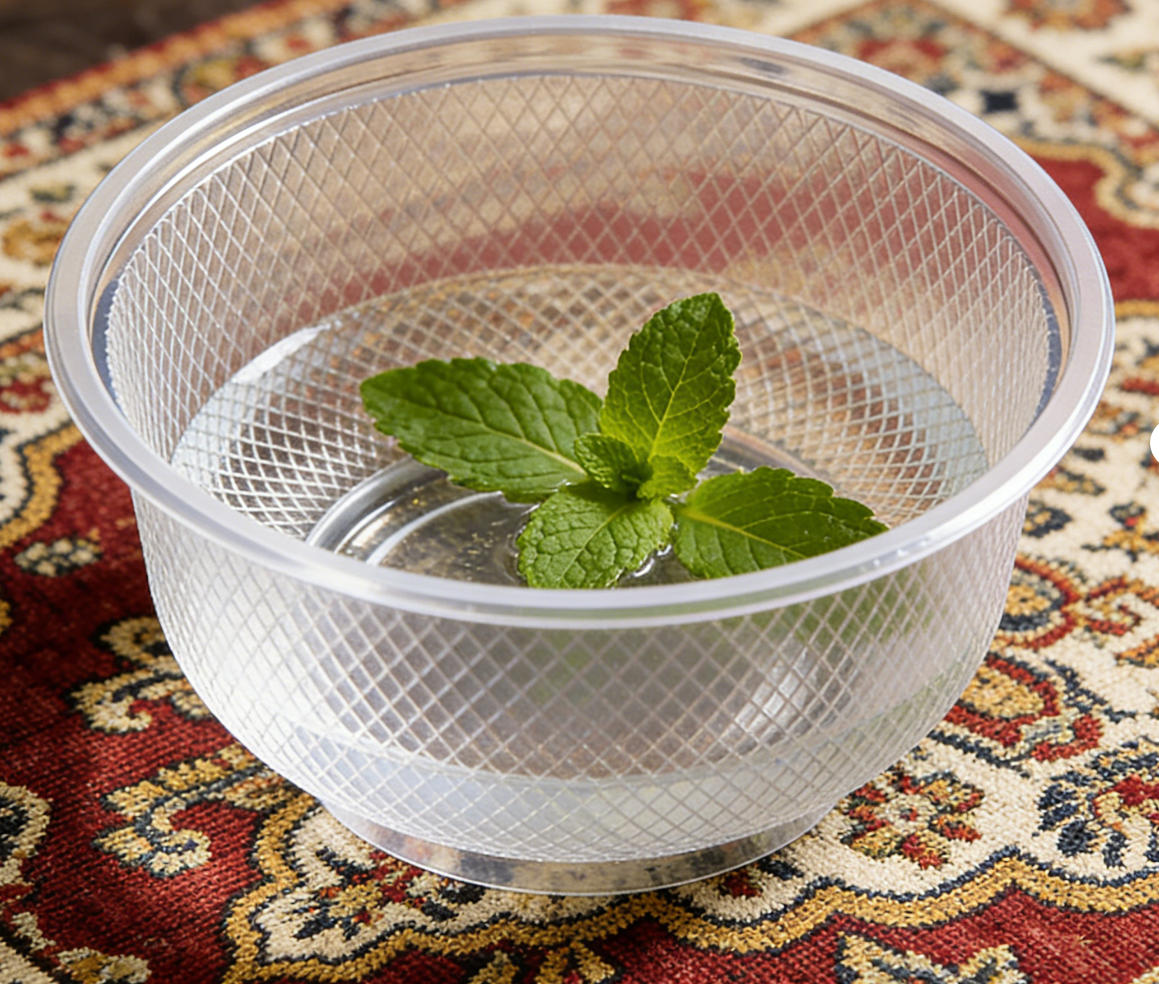

PRODUCTS RANGE

FEATURES AND ADVANTAGES

1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.

2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).

3. Easy-to-operate human-machine interface, and has the function of remote connection.

4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.

5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.

6. The upper and lower electric heating furnaces are used for 6-7 heating stages and protection to reduce the impact of air convection on temperature, ensuring stable product molding. It only takes 3 minutes to heat from 0 to 400 degrees, improving production efficiency. The electric heating furnace can be automatically removed.

7. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.

8. The mold opening and closing by servo motor, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.

9. Positive pressure forming ensures uniform thickness, full shapes, and sharp corners.

10. The chain frame features a fast cooling and wear-resistant design.

11. The cup blowing system offers adjustable blowing angle and air volume.

12. A servo motor chain drive automatically extends the track to prevent sheet sagging, ensuring stable, precise, and smooth sheet feeding.

13. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.

14. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.

SPECIFICAITON

Sheet Materials	PP/PS/PET/PLA/PE/CPET	Air Consumption	4m³/min 0.5-0.8bar
Sheet Thickness	0.2-2.5mm	Weight	7500kg
Forming Area	780*480mm	Total Installed Power	150KW
Width Of Sheet	400-850mm	Heating Power	122kw
Max Speed	35moulds/min	Feeding Motor	4.4kw
The Longest Knife	12m	Control Forming Plug Motor Power	5.5kw
Dimension	450020002600mm	Winding Waste Of Edge Sheet Motor Power	0.4kw
Forming clamping force	1100kn	Forming Motor	15kw
Max. Forming Depth	≤180mm by blowing	Machine Travel	≤220mm
